Functional Anatomy of the Hip-Muscles and Fascia


Original Editor - Ewa Jaraczewska based on course by Rina Pandya

Top Contributors - Ewa Jaraczewska, Jess Bell and Kim Jackson

Description[edit | edit source]

One theory assumes that the human body has two muscular systems: local and global. The local muscular system acts close to the joint axis, provides joint compression, and is responsible for joint stability. Large forces produced by muscles and small changes in their length create joint compression, thus producing active stabilisation of the joint.[1] The global system contains superficial muscles generating greater torque and a larger moment arm.[1] However, it is the muscle architecture and the line of action that determines the muscles' primary role.

Daily activities require the hip joint to withstand high forces. This is made possible by the contribution of the individual muscles surrounding the joint.[2] Active stability provided by the hip muscles can increase passive stability in both the normal hip, as well as the hip with structural abnormality.[1]

Muscles[edit | edit source]

"There are 22 muscles that provide stability around the hip joint to give it that 365-degree mobility. It's a huge responsibility to maintain that stability of the ball and socket." Rina Pandya

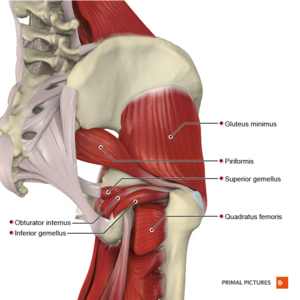

External Rotators of the Hip

External Rotators[edit | edit source]

Attachments:[edit | edit source]

Quadratus femoris: ischial tuberosity to the intertrochanteric crest of the femur.

Obturator internus and externus: obturator membrane and ischiopubic ramus to the greater trochanter (internus) or intertrochanteric fossa of the femur (externus).

Gemelli (superior and inferior): ischial spine (superior) or ischial tuberosity (inferior) to the greater trochanter and obturator internus tendon.

Piriformis: anterior surface of the sacrum and sacrotuberous ligament to the greater trochanter.

Function:[edit | edit source]
  • Active stabilisers of the hip joint. A primary role of these muscles is to stabilise the femoral head in the acetabulum.
  • When deep external rotators are resected during hip arthroplasty with a posterior surgical approach, there is an increased rate of prosthetic dislocation and functional deficits. With capsular repairs, the dislocation rate is lower.
  • Resisted external rotation of the hip with extension activates piriformis, but its line of force is not conducive to enhance joint compression.
  • If the hip joint is tight with external rotation, and the patient is not able to bring their leg up and put their sock on, it could indicate tightness of the piriformis. In addition, the patient may complain of shooting pain in the buttock region.[3]

Internal Rotators[edit | edit source]

Attachments:[edit | edit source]
Tensor Fascia Latae

Tensor fascia latae (TFL): the anterior superior iliac spine to iliotibial tract, between the deep and superficial layers of the iliotibial band.

Gluteus medius: the outer surface of the ilium, between the iliac crest, and the anterior and posterior gluteal lines to the greater trochanter. The muscle has three segments; anterior, posterior, middle or superficial, each with a specific orientation of muscle fibres.

Gluteus minimus: the outer surface of the ilium, between the anterior and posterior gluteal lines to the greater trochanter.

Function:[edit | edit source]
  • TFL works in different movement planes: it assists with hip abduction in the frontal plane, performs hip flexion in the sagittal plane, completes internal rotation in the transverse plane together with anterior gluteus medius and gluteus minimus.[4]
  • TFL has limited elasticity, which limits the bulging of the thigh muscles and, thus, helps keep them contained so they can contract efficiently.[3]
  • Gluteus medius and gluteus minimus are primary abductors and assist with internal rotation.
Hip Abductor

Abductors[edit | edit source]

Gluteus minimus

Gluteus medius

Tensor Fascia Latae

Piriformis

See above for attachments.

Function:[edit | edit source]

The functions of gluteus minimus include:

  • Stabilisation of the hip and pelvis through modulation of the joint capsule.
  • Stabilisation of the femoral head in the acetabulum.
  • Rotation and flexion of the hip.
  • Prevention of anterior dislocation and migration of the femoral head in a superior and medial direction.
  • Proprioceptive role.

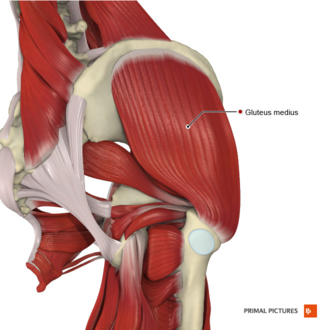

Gluteus medius:

  • Is a primary abductor of the hip.
  • Stabilises the pelvis and hip.
  • Prevents the pelvis from adduction in a single-leg stance.
  • Is an important stabiliser of the pelvis on the hip as it contracts prior to and after foot contact regardless of the walking speed.[1]

Piriformis:

  • Externally (laterally) rotates the femur during the hip extension and abducts the femur during hip flexion.[5]
  • Acts as an auxiliary muscle and shows coactivation during pelvic floor muscles contracture.[6]

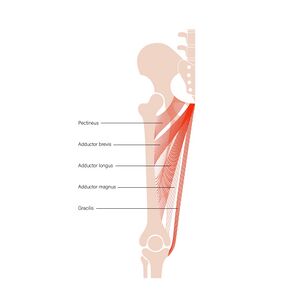

Hip Adductors

Adductors[edit | edit source]

Attachments:[edit | edit source]

Adductor longus: pubic bone between the crest and symphysis to linea aspera of the femur.

Adductor brevis: body and inferior ramus of the pubis to linea aspera of the femur.

Adductor magnus: ischial tuberosity and inferior ramus of the pubis to linea aspera and the adductor tubercle.

Gracilis: inferior pubic ramus to medial side of the tibial tuberosity.

Pectineus: pectineal line of the pubis and pubic tubercle to pectineal line of the femur.

Function:[edit | edit source]
  • The hip adductors contribute to static balance performance.[7]
  • Adductor longus provides some medial rotation.
  • Adductor magnus extends the hip through its attachment on the ischial tuberosity.
  • In open chain activation, the hip adductors' primary function is hip adduction.
  • In closed chain activation, the hip adductors help to stabilise the pelvis and lower extremity during the stance phase of gait.
  • Secondary roles of the hip adductors include hip flexion and rotation.[8]
  • Gracilis and semitendinosus create the conjoined tendons known as the pes anserinus.[9]
Hip Flexors

Flexors[edit | edit source]

Attachments[edit | edit source]

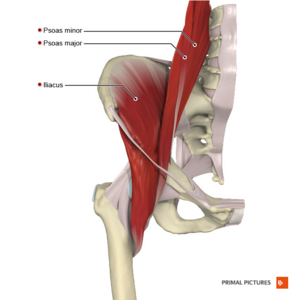

Iliopsoas has three portions:[3]

  • Iliacus: lateral edge of the sacrum and iliac fossa to the lesser trochanter of the femur.
  • Psoas major: transverse processes of vertebrae T12–L5 to the lesser trochanter of the femur.
  • Psoas minor: vertebral bodies of T12–L1 to iliopubic ramus.

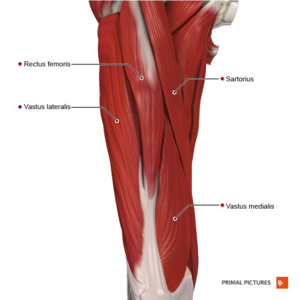

Rectus femoris: anterior-inferior iliac spine, superior rim of the femoral acetabulum to the base of the patella.

Hip Flexors

Sartorius: anterior superior iliac spine to the upper medial side of the tibia.

Tensor fascia latae: see above.

Function:[edit | edit source]
  • Psoas major and iliacus are separately innervated. They are active throughout hip flexion.
  • Iliacus and both psoas muscles have a role similar to that of the rotator cuff muscles at the shoulder. They impact hip joint stability by creating tension in musculotendinous units as they pass over the anterior aspect of the hip joint.[1]
  • Sartorius serves as both a hip and knee flexor and hip external rotator.
  • The Thomas test assesses the length of the hip flexors. The contralateral limb is held in flexion. As flexion of this limb increases, the testing side (if tight) will lift off the bed. This lifting is caused by the posterior tilting of the lumbar spine. Extension of the knee on the testing side indicates rectus femoris or sartorius tightness.
Hip Extensors

Extensors[edit | edit source]

Attachments:[edit | edit source]

Gluteus maximus: ilium, sacrum, coccyx, and the sacrotuberous ligament to gluteal tuberosity of the femur and iliotibial band.

Biceps femoris:

  • Long head: ischial tuberosity to lateral tibial condyle and head of the fibula.
  • Short head: upper supra-condylar line and linea aspera to lateral tibial condyle and head of the fibula.

Semimembranosus: ischial tuberosity to superior and medial surface of the tibia.

Semitendinosus: ischial tuberosity to the medial condyle of the tibia.

Function:[edit | edit source]
  • Gluteus maximus is one of the primary hip extensors, it assists with hip external rotation and is the strongest and the largest muscle in the body.
  • Upper and lower fibres of the gluteus maximus contribute to abduction and adduction, so it is considered an accessory muscle for these movements.
  • Gluteus maximus is prone to weakness and inhibition.[10]
  • Gluteus maximus originates partially from the thoracolumbar fascia. This explains why issues in the lumbar spine or even the thoracolumbar junction can produce an anomaly or tightness / weakness of the gluteus maximus.
  • The biceps femoris long head is most often affected in a hamstring strain injury.[11]

Inversion of muscular action[edit | edit source]

The muscles of the hip joint can contribute to movement in several different planes depending on the position of the hip. This is caused by a change in the relationship between a muscle’s line of action and the hip’s axis of rotation, meaning that hip muscles can have secondary functions. For example, the gluteus medius and minimus act as abductors when the hip is extended and as internal rotators when the hip is flexed. The adductor longus acts as a flexor at 50° of hip flexion, but as an extensor at 70°.[12]

Fascia[edit | edit source]

The concept of fascial lines further explains the connection (i.e. myofascial continuity) between adjacent structures: muscles, tendons, ligaments. This concept helps to explain specific strains and connections that can occur following injury, adhesions, and postural changes.[13]

The fascial lines and the hip joint muscles connected with these lines are:[14]

  • Front functional line: adductor longus
  • Back functional line: contralateral gluteus maximus
  • Superficial front line: rectus femoris
  • Superficial back line: hamstrings
  • Lateral line: gluteus maximus, tensor fascia latae, iliotibial tract/ hip abductors
  • Spiral line: iliotibial tract, tensor fascia latae
  • Deep front line: iliacus, psoas, adductor brevis and longus, adductor magnus and minimus

This video further explains the concept of fascia lines:

[15]

Examples of fascia connections in the hip joint:[16]

  • The fascia of the hip adductors continues to the pelvis and influences the urogenital and pelvic diaphragms.
  • The iliacus fascia is continuous with the deep pelvic fascia.
  • The fascia of the gluteus medius is continuous with the fascia of the abdominal obliques at the iliac crest.
  • There is fascial continuity between the obturator internus and the iliacus which further extends into internal obliques and the diaphragm.

Clinical relevance[edit | edit source]

  1. Piriformis syndrome is described as irritation of the sciatic nerve at the level of the piriformis muscle. It has a number of symptoms involving the hip, buttock, and upper thigh. Possible causes include trauma, haematoma, excessive sitting, and anatomic variations of the muscle and nerve.[17]
  2. Gluteus medius and gluteus minimus muscles weakness can present as a Trendelenburg gait.[3]
  3. One study found that an external myofascial mobilisation approach based on fascial connectivity including the ipsilateral latissimus dorsi, ipsilateral thoracolumbar fascia and contralateral gluteus maximus posteriorly, ipsilateral external oblique and contralateral internal oblique, and hip adductor complex anteriorly led to significant symptom improvement for the chronic pelvic pain syndrome (muscle spastic type).[18]
  4. Psoas tightness can contribute to low back pain.[3]
