Introduction

Runners

Running is a popular physical activity all over the world. The benefits of running include: improved endurance, decreased risk of cardiovascular disease and weight loss. In recent years the number of runners has increased. In the United States, 15% of the population take part in some form of running and in the UK, statistics show that 6 million people run once a week. Unfortunately, there is also the risk of injury. Approximately 80% of running-related injuries are associated with overload. Structures that are slow at adaptation to training load, such as tendons and ligaments, are mainly at risk of injury.

Assessment and Treatment Continuum

Assessment is always a process, especially when managing overuse injuries. The assessment process is tailor-made in an optimal way and continues throughout the rehabilitation process until the patient/athlete is discharged and fully functional. The diagram below indicates the progression in the assessment and treatment continuum.

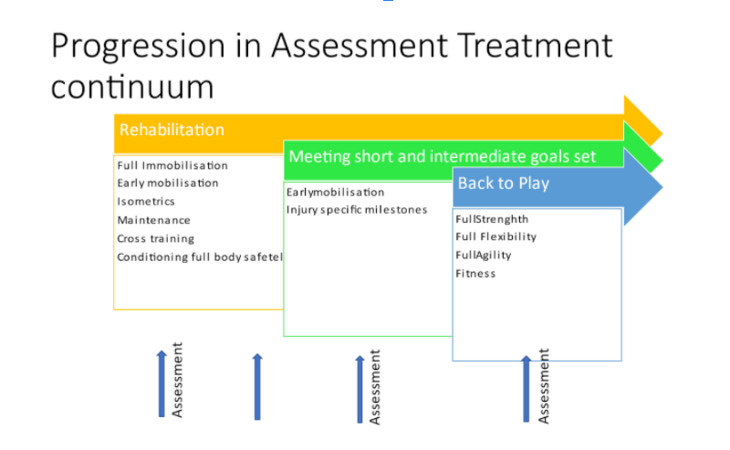

Progression in Assessment Treatment Continuum

Overuse Injury in Runners

Definition of Overuse Injury

"Skeletal muscle overuse injury is a load-related condition that develops when repeated mechanical loading exceeds the adaptive and reparative capacity of skeletal muscle."

Overuse injuries are characterised by the absence of a single, identifiable or traumatic cause. There is a gradual onset and injury is caused by repeated micro-trauma. The term "overuse" is used as the onset of these type of injuries is usually precipitated by a period of inappropriate tissue loading such as:

• Excessive magnitude or volume of load
• Insufficient recovery between bouts of load

Why Does Overuse Lead to Injury?

An overuse injury is usually caused by repetitive activities over a period of time. This repetitive microtrauma overloads the capacity of the tissue to repair itself. During exercise, the various tissues such as muscles, tendons, bones and ligaments, are being loaded and experience excessive physiological stress. After the specific exercise activity, the tissues undergo adaptation in order to strengthen and to be able to withstand similar stress in the future. If the adaptive capability of a specific tissue type is exceeded and injury occurs, this is most often an overuse injury. Therefore, in overzealous athletes who do not allow adequate time for adaptation to occur before the next workout or training session, the cumulative tissue damage eventually exceeds the threshold that the tissue can handle and this causes pain and dysfunction.

Read more about overuse injury:

• Overuse Injuries - an Individualised Approach
• Overuse Injuries in Sport

Running Surfaces and Overuse Injury

Surface also plays a role in overuse injuries in running. The common misconception is that running on a softer surface will reduce impact and therefore reduce the risk of injury. However, different running surfaces will simply change the biomechanical demands on the body. For instance, running on a softer surface will reduce impact loading rates, but there will be an increased demand on musculoskeletal structures such as muscles and tendons. A change in running surface may reduce stress on one area of the body, but it may increase injury risk in other areas.

Patient Education and Overuse Injury

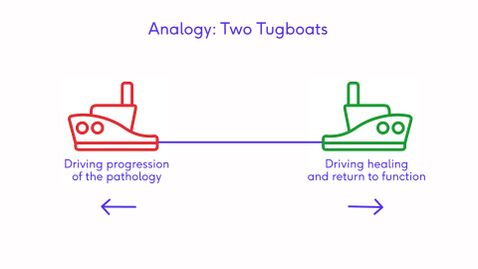

Imagery explaining overuse injury management

A helpful image to use when educating patients about their overuse injury is the image of two tugboats pulling against each other. The green tugboat (good) will drive the overuse injury into healing and return to function or sport, whereas the red tugboat will draw the overuse injury away from healing and into more serious pathology. The key is to find a balance. You need to fuel the green tugboat with all the necessary interventions to facilitate healing, but not in a way that fuels the red tugboat and aggravates the pathology.

Read more here: Physiotherapy and Overuse Injuries

Common Overuse Injuries in Runners

Overuse injuries commonly affect the knee, lower limb and foot in runners. In elite middle- and long-distance runners, the majority of injuries are in the lower leg and foot, whereas in recreational runners the most frequent area of injury is the knee. Some of the common overuse injuries in runners include:

• Medial tibial stress syndrome
• Posterior compartment syndrome
• Patellofemoral pain syndrome (Runner's knee)
• Achilles tendinopathy
• Peroneal tendinopathy
• Iliotibial band syndrome
• Hamstring tendinopathy
• Proximal Hamstring Tendinopathy
• Bursitis
• Plantar heel pain
• Calf muscle strain injuries
• Bone stress injuries
  • For example a stress fracture of the tibia
  • Other stress fracture sites: anterior tibial diaphysis, 5th metatarsal base, medial malleolus, lateral femoral neck, navicular, great toe sesamoid

• Osgood-Schlatter Disease (in younger athletes)
• Sever’s Disease (in younger athletes)

Even though it is useful to know all the common injuries of running, it is still crucial to have a systematic assessment of your runner and to follow the process in order the make the correct diagnosis.

Running Biomechanics

Inefficient running biomechanics plays an important role in the development and incidence of running injuries. If a runner has poor kinematic patterns and running form, their body's ability to absorb external forces will be affected, which puts them at risk of developing overuse injuries. Research on running biomechanics is often aimed at:

• Injury prevention
• Improving performance
• Improving runner efficiency through lower energy demand

It is important to assess the runner's running gait to identify common faults and problems in the kinetic chain. Physiotherapists can use their specific skills to help physiological adaptation through different techniques, as well as provide proper guidance on optimal loading strategies.

Read more on:

• Running Biomechanics
• Assessment of Running Biomechanics
• Rehabilitation of Running Biomechanics

Subjective Assessment/Clinical History in Runners

Clinical Reasoning

Factors to consider in the clinical reasoning process:

• The importance of understanding work load and how that relates to mechanical load
• Knowledge of common injuries
• Understand risk / predisposing factors that can influence injury
• Don’t arrive at a conclusion too soon – keep an open mind in your assessment
• Gradual onset may be a clue, but some overuse injuries can have an acute onset
• Look out for underlying medical conditions and clear red flags
• A good knowledge of anatomy and pathophysiology is necessary
• Consider biomechanics such as:
  • The mechanism of injury
  • Intrinsic and extrinsic forces on structures
  • Surface
  • Shoes

Subjective Clinical History Considerations

• Listen well, but also ask crucial important questions
• Specifically ask about the runner’s volume of load, the intensity of load and any changes in these. Document these answers very well and reassess regularly
• Consider not only the influence of forces when running, but also in activities of daily living and other sports or recreational activities
• Medical or general history
  • Be aware of possible red flags and refer to members of the multi-disciplinary team

Predisposing/Risk Factors

Common predisposing risk factors to consider:

• Age
  • Increased age may be a risk factor for certain types of running-related injuries
• Biological sex
  • Low quality evidence exists indicating that men are at higher risk of running-related injuries
• Running experience
  • Less experienced runners are at greater risk of injury
• Previous injury
  • In recent systematic reviews, a previous injury is highlighted as the most important risk factor in short- and long-distance runners
• Load
  • Lower running volume is a risk factor for overuse injuries among short-distance runners
• Footwear
  • The biomechanical stress placed on certain structures during running is influenced by the type of running shoe, but there is no evidence to show that a particular shoe will influence injury risk
• Running surface
  • Sudden changes in running surface may be a risk factor

Investigating the Injury

• Be as specific and quantitative as possible
• Questions to ask regarding the injury:
  • Location of pain - where does it hurt?
  • Nature of pain - type of pain
  • Intensity of pain
  • Frequency of pain
  • When did the pain start? - try to get specific answers
  • Does it hurt with every run / every week / every month?
  • How far into the run does the pain start?
  • Does the pain get better when the runner warms up?
  • Does the pain come back?
• Questions about activities of daily living and normal training routines
  • Outcome measures such as the VISA-A scale for Achilles tendinopathy is a useful tool that can easily be administered

Consider that certain structures react in certain ways. For example, in tendinopathies, the pain subsides after warming up and if severe enough the pain will return later in the run. In a runner with posterior compartment syndrome, the pain will progressively get worse with added symptoms such as pins and needles (paraesthesia). A bone stress injury will present as localised pain that gets worse over time.

Volume Tool

• This is an easy to use, visual tool for your patients.
• This tool is utilised to quantify symptoms and systematically report volume, intensity (speed or hill training) for serial reassessment.

• Patient education is key and with the assessment of overuse injuries, we rely strongly on feedback from the patient to monitor progress. It is therefore advisable to make it easy to interpret feedback for both the clinician and the patient.
• With this tool, answers to the questions guiding the physiotherapist to a working diagnosis are quantified where possible, which helps to monitor progress on the road to recovery.

The volume tool makes use of other validated outcome measures:

• The visual analogue scale for quantifiable feedback on symptoms
• The Borg scale for perceived exertion is used to quantify the perceived working load or intensity of a run

•

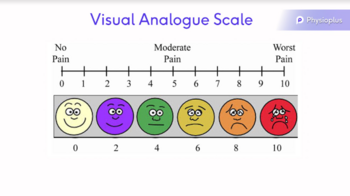

  Visual Analogue Scale
•

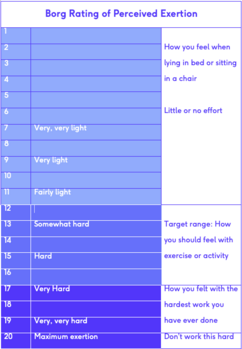

  Borg Rating of Perceived Exertion

• The first part of the volume tool consists of a few questions in table form: runners can log their daily run, the distance of the run, the time in the run when symptoms start and if / when symptoms reduce, as well as the intensity of the run.
• With the volume tool, there are some constants that should be kept the same. These are the volume of the run, the surface of the run and the duration of the run. This way the body's reaction to the same volume of load can be assessed and a trend towards improvement or decline will easily be detected.

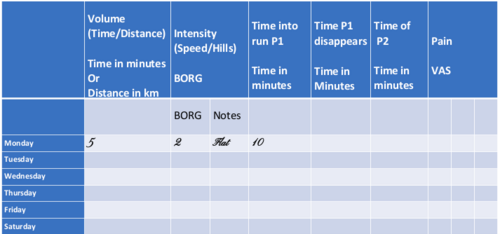

Volume Tool 1

• The volume tool can then be further individualised with specific questions
  • Individualised volume tool
    • Questions that are included in the serial assessment/volume tool:
      • Did you have discomfort in the affected area on getting up and if so, please rate it on the VAS 1-10.
      • For how many minutes did you feel discomfort?
      • When did you first feel discomfort in your run? Please indicate as time in minutes into your run.
      • How many minutes of discomfort?
      • How bad was this first symptom at its worst on the VAS 1-10?
      • How many minutes did you run comfortably without symptoms before symptoms returned?
      • How bad was the second bout of discomfort at its worst on the VAS 1-10?
      • How hard was your run on the BORG scale?
      • How long did you run in minutes?
    • Patients keep a daily log with this volume tool. If possible, try and keep some constants such as the volume of the run, the surface and the duration of the run.

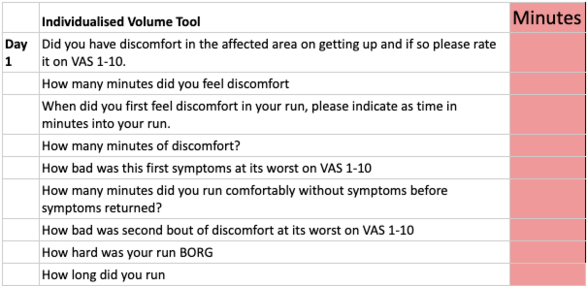

Overuse Injury Questions in Individualised Volume Tool

Asking these specific questions and tracking the nature of the pain with this daily log will provide a good overview of how the injured structure behaves. Keep in mind that as part of the physical examination, certain structures will be evaluated in more detail to confirm the diagnosis. However, overuse injuries can be challenging and there may be situations where the patient’s pain / symptoms cannot be elicited in the assessment. Think about experienced runners who start to complain of a slight niggle during their run. In these cases, it may be useful to use a treadmill or to ask the patient to go for a run before or during the assessment to try and find a comparable sign. When applying these methods though, bear in mind that overuse injuries are surface dependent and that a change in the runner’s normal running surface may aggravate the issue.

All the answers in the Individualised Volume Tool have a numerical value as an answer. This will be transferred into an excel table and used to create a graph representing these values as a function. This will show the trend of symptoms in relation to volume, intensity over time. This tool can assist in clinical reasoning for progression in optimal sport-specific loading for running.

This tool provides a visual representation of how one parameter can influence overuse and the symptoms of the injury over time. It is a helpful assessment and re-assessment tool for clinicians, as well as an educational tool. It also enables patients to provide their physiotherapists with high quality, valid, useful feedback to use in clinical reasoning to establish a diagnosis and to plan an intervention for treatment and rehabilitation. In other words, this tool helps us better understand what the patient-specific optimal load is at a specific moment.

Overuse Tool

Individualised Volume Tool

Merike Hopkins created the Overuse Tool using Google Sheets or Excel. It allows physiotherapists to create a list of individualised questions similar to the VISA-A. They can also include other relevant clinical history questions. This tool provides a quantitative way to visually represent the effect of load over time on a patient / runner's symptoms. Patient education is key and the physiotherapist needs to explain the VAS and Borg scale, as well as how to use and document the onset of symptoms (using either time or distance).

All of this information then appears as part of the Overuse Tool in a table with programmed cells. From this data, graphs can be configured and different data assessed over time. Below is an example of the table available in the Overuse Tool. Take note of the following:

•

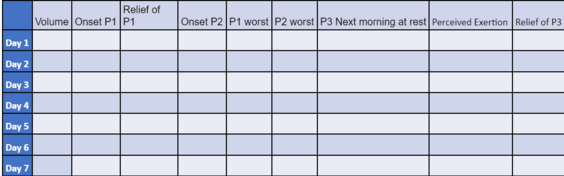

  Overuse Tool Table

  Onset of P1 means how far into run first discomfort started
• Relief of P1 is if the first pain went away
• Onset of P2 is if pain returned (as we might expect with tendinopathies)
• P1 worst is VAS of P1
• P2 worst represents VAS for P2
• P3 next morning at rest represents the pain the patient has when getting up
• Perceived exertion represents perceived workload of the run
• Relief of P3 represents how long the patient had morning pain

Below are images of the Overuse Tool as seen in Google Sheets. The image on the left has no data and image on the right has some data and a graph constructed from the data.

•

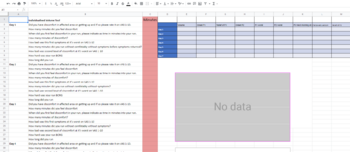

  Overuse Tool in Google Sheets with no data
•

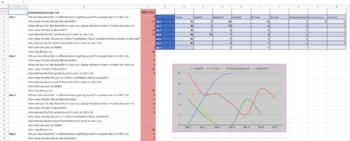

  Overuse Tool in Google Sheets with data

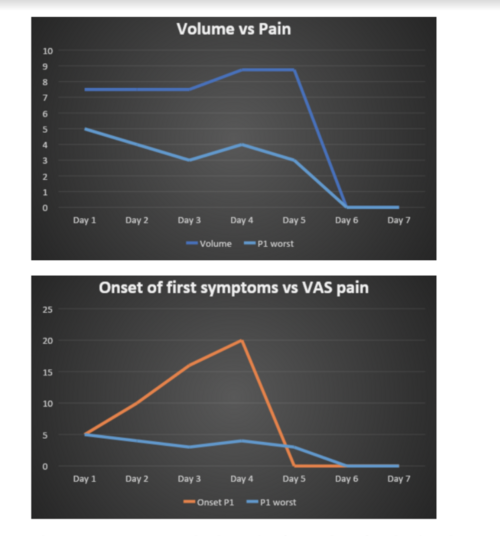

The graphs below are examples of graphs constructed with the Overuse Tool. The first graph shows how a runner's running volume influenced their pain. Questions can be tailor-made to measure and visually represent the data from answers provided by the runner. The physiotherapist can also look at a variety of data in this way.

Examples of graphs constructed with the Overuse Tool

The subjective assessment already provides an idea of the issue to be confirmed in the physical assessment and allows for the development of a working diagnosis. Keep in mind that the subjective and objective assessment are not two separate entities and are a continuum of assessment.

Developing a Working Diagnosis

Table 1. Developing a working diagnosis for overuse injuries in runners

Area	Complaints by runner	Possible structure involved	Possible diagnosis
Lower Leg	Injury becomes more frequent Increased intensity Starts early in an activity and gets worse Remains painful after the activity	Bone	Bone stress reaction or stress fracture
Lower Leg	Pain or irritation improves with some activity Symptoms return after activity	Tendons and ligaments	Tendinopathy
Lower Leg	Pain starts during the activity Pain gets worse as the activity progresses Feeling of pins and needles (paraesthesia)	Muscle, nerve, fascia	Posterior compartment syndrome
Knee	Lateral knee pain Pain gets worse with activity	Fascia	Iliotibial band syndrome
Knee	Anterior knee pain with downhill running	Joint, muscle	Patellofemoral pain syndrome
Foot and Ankle	Young runner with heel pain that gets worse with activity Pain gets worse with uphill running	Apophysis	Sever's Disease

Physical Examination

• Static posture assessment  (can make use of plum line, mirrors)
  • Look for possible clues or abnormalities, individual deviations
  • Assess the whole kinetic chain
  • Back posture, foot position, ankle position, weightbearing, knee position (varus or valgus, hyperextension), hip position
• Functional movement assessment
  • Walking gait assessment
  • Running gait assessment (on treadmill if available or take patient outside and assess running pattern)
  • Assess running gait as soon as safely possible for assessment purposes as well as for rehabilitation purposes
  • Always assess within safe parameters!
  • Assess pain with movement and look out for any guarding signs
• Palpation
  • Know surface anatomy
  • Look for atrophy
  • Signs of inflammation
  • Muscle tone
• Muscle testing
  • If indicated
• Clear joints above and below
• Neurological examination
  • Investigate any other reasons for referred pain
• Look for a comparable sign
• Stress specific structures
  • Sometimes the runner needs to run before you can stress and find symptoms
  • The overuse tool is valuable here as the patient can provide you with relevant and quality feedback on a regular basis
• Special tests
  • Always clear possible red flags

Key Considerations

• Formulating and understanding the problem
  • From the information gathered in the subjective and physical assessment, one can develop a working diagnosis, create a problem statement, and plan the rehabilitation. All the information from the subjective and physical examination is used to plan a patient-specific intervention, which can include various strategies such as manual therapy, but most importantly optimal loading and rehabilitation.
• Patient education
  • Enables the patient and coach or support network to understand the level of the injury and the pathophysiology thereof.
  • Explain the healing process and how rest and loading can change the structure of the tissue.
  • How does loading influence the repair or breakdown of the structure?
  • Make sure that the patient understands the meaning of optimal progressive load.
• Involve the multi-disciplinary team
  • Confirm and reach consensus on the diagnosis.
  • Refer or ask for special tests and imaging if needed.
• Functional Rehabilitation
  • Mimic the movement or force within a structure as closely as possible to the actual natural environment in the sport.
  • Rehabilitation of running injuries - lower limb functioning in a closed kinetic chain.
  • Consider the speed at which the runner will utilise the involved structures.
  • Try to include the sport of running itself as soon and as safely as possible in the rehabilitation plan.
  • Load specifically and sport-specifically.
  • Keep the body in balance and strengthen the whole kinetic chain.
