Ankylosing Spondylitis

Original Editor - Thomas Rodeghero

Top Contributors - Laura Ritchie, Mathieu Henrotte, Kalyani Yajnanarayan, Vanwymeersch Celine and Jack Rubotham



Ankylosing spondylitis (aka Bechterew's disease or Marie-Strumpell disease) is a seronegative spondyloarthritis of the spine and pelvis. AS affects the axial skeleton usually involving the Sacroiliac Joints, apophyseal joints, costovertebral joints, and intervertebral disc articulations[1]. AS causes characteristic inflammatory back pain, resulting in structural and functional impairments and a reduction in quality of life. [2][3][4][5][6] Affected joints progressively become stiff and sensitive due to a bone formation at the level of the joint capsule and cartilage. It causes a decreased range of motion and gives the spine an appearance similar to bamboo, hence the alternative name "bamboo spine".

Although not often recognised, ankylosing spondylitis can also cause peripheral joint pain, particularly in the hips, knees, ankles, and shoulders and neck.[7] It involves synovial and cartilaginous joints, as well as sites of tendon and ligamentous attachment.[4][6] Early diagnosis and treatment help to control the pain and stiffness and may reduce or prevent significant deformity.[8]

Clinically Relevant Anatomy

Pain in AS can be caused by sacroiliitis, enthesitis, and spondylitis.[3] Initially, the sacroiliac joints, situated in the lumbar part of the back, which connect the spine and the pelvis, are damaged. Subsequently, the inflammation moves to entheses, where ligaments and tendons integrate into the bone.[7] Eventually, the spine is affected by this inflammation. The vertebral column normally exists of 24 vertebrae, joined together by ligaments and separated by intervertebral discs.
Patients diagnosed with AS form calcium deposits in the ligaments between and around the intervertebral discs. An accumulation of the deposits leads to ossification [4], starting from the vertebral rim towards the annulus fibrosis and characterised by syndesmophytes.[5] In highly advanced cases, the spine can fuse together as a result of the bone formation.

Epidemiology /Etiology

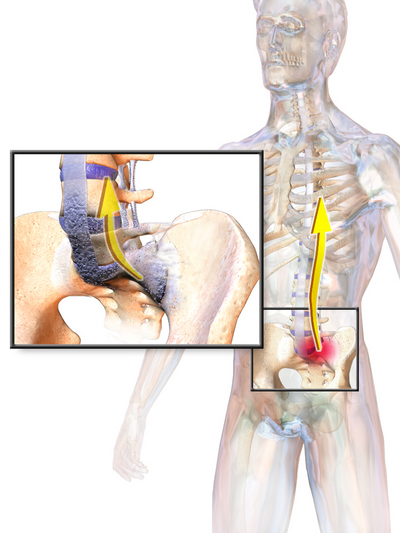

Ankylosing process.jpg

AS Affects 0.1 to 1.4% of the population and is predominantly seen in males in a 3.4:1 ratio.[9] The onset of symptoms generally occurs between 20-40 years of age.[9] Less than 5% of cases have an onset of symptoms over the age of 45.[9] AS is more prevalent within Europe (mean 23.8 per 10,000) and Asia (mean 16.7 per 10,000) than within Latin America (mean 10.2 per 10,000).[9]

The etiology of AS is not fully understood. Although a strong link has been established of complex interactions between genetic background and environmental factors.[10] Studies have shown factors such as genetic background, microbial infection, endocrinal abnormalities and immune reaction related to the occurrence of AS.[10] In addition, a direct relationship between AS and the major histocompatibility human leukocyte antigen (HLA)-B27 has also been determined.[10][11] The exact role of this antigen is unknown but is believed to act as a receptor for an inciting antigen leading to AS. HLA-B27 occurs in 90-95% of patients with ankylosing spondylitis, compared to a 6 to 9% incidence in the normal population. [6]

The majority of patients are HLA-B27 positive and the risk passing the same antigen onto a child is 1 in 2, [7] so ankylosing spondylitis is a common, highly heritable inflammatory arthritis. [11] Environmental or bacterial factors can also be a trigger. [7]  Initially, there is an infiltration of the subchondral bone by granulation tissue which causes small lesions, ultimately leading to joint erosion (the adjacent cartilage is distorted which produces a very irregular surface).[6] These lesions in the annulus eventually undergo ossification, leading to a fusion effect of the spinal segments and the similarity in appearance to bamboo. In the spine, this occurs at the junction of the vertebrae and the annular fibres of the intervertebral disc.
When synovium is the affected tissue, there is an infiltration by macrophages and lymphocytes. This is followed by replacement of the cartilage or fibrous tissue by a scar-like fibroblast invasion which rapidly ossifies. The inflammatory response in the bone adjacent to the involved fibrocartilage, ligament or periosteum is frequently quite severe. As of the spine can resemble an infectious discitis when the spine is initially involved and can be an additional source of confusion for the treating therapist. [6]

Characteristics/Clinical Presentation

Ankylosing spondylitis lumbar spine.jpg
  • Insidious onset of back pain in the sacroiliac (SI) joints and gluteal regions and progresses to involve the entire spine. [12]
  • Morning stiffness lasting greater than 30 minutes
  • Waking up in the second half of the night.
  • Pain and stiffness increase with inactivity and improve with exercise.[6]
  • Involvement of peripheral joints, eyes, skin, and the cardiac and intestinal systems. [12] Eye disease occurs in about 25% of the patients as either iridocyclitis or conjunctivitis. [6] Joints other than those of the axial skeleton can be involved with inflammatory arthritis and synovitis. The hips, shoulder and knees are the most commonly and most severely affected of the extremity joints. [6]
  • Complaints of intermittent breathing difficulties as a result of decrease in chest expansion. In advanced stages the spine can become fused and a loss of normal lordosis with accompanying increased kyphosis of the thoracic spine, painful limitations of cervical joint motion, and loss of spine flexibility in all planes of motion. A decrease in chest wall excursion less than 2 cm could be an indicator of AS because the chest wall excursion is an indicator of decreased axial skeleton mobility.[13]
  • Intermittent low-grade fever, fatigue, or weight loss can occur.[14]

Differential Diagnosis

Common disorders to consider as differential diagnoses with AS are:

Diagnostic Procedures

The diagnosis of AS is commonly made through a combination of thorough subjective and physical examinations, laboratory data and imaging studies. Common laboratory data include blood tests to determine the presence of the HLA-B2 antigen or substances that indicate an inflammatory process: [15]

Criteria to assist diagnosis in Primary care

  • Peripheral manifestations, such as dactylitis or enthesitis or arthritis, especially of the plantar fascia or achilles tendon
  • A family history of AS or related disorders†
  • Inflammatory back pain*
  • Psoriasis, inflammatory bowel disease or a history of uveitis
  • Elevated C-reactive protein (CRP), where causes such as spinal infection or cancer have been excluded. This is also a marker of inflammation and is found in 50-70% of people with AS.[15] Patients with AS may have CRP levels ranging from > 6 mg/L (slightly elevated) to 20 – 30 mg/L.
  • Back pain which improves after 24 – 48 hours of treatment with non-steroidal anti-inflammatory
  • Positive HLA-B27 test: HLA B27 is positive in 80-90% of AS patients, more so in the Caucasian population and African Americans. [3] The HLA-B27 antigen is also present in other inflammatory conditions of intestines or joints
  • Sacroiliitis on X-ray or MRI
  • Erythrocyte sedimentation rate (ESR): This is a blood test for inflammation, in approximately one-third of the SA patients there is a raised ESR observable in exacerbations of the disease, but other conditions can also cause a high ESR.[5][15]

† A first-degree or second-degree relative with ankylosing spondylitis, psoriasis, uveitis, reactive arthritis or inflammatory bowel disease

*At least four out of the five criteria from “Differentiate inflammatory back pain from pain due to other causes”

Laboratory tests are specific and are often more helpful to exclude other diagnoses rather than confirming AS. In combination with other symptoms, the diagnosis can often be made more accurate. [3][5]

Detection of AS by Medical Imaging [15]

  • X-rays are the most useful imaging modality in established the disease, although they may be normal in the early phases
    Spondy 1.png
    . X-ray shows up areas where the bone has been worn away by the condition. The vertebrae of the spine may start to fuse together because the ligaments between them become calcified.
  • MRI scanning may also be useful in identifying early sacroiliitis. MRI of the sacroiliac joints is more sensitive than either plain X-ray or CT scan in demonstrating sacroiliitis. Sacroiliitis initially shows as blurring in the lower part of the joint, then bony erosions or sclerosis occur and widening or eventual fusion of the joint.
  • vertebral body squaring
  • bamboo spine appearance
  • interspinous ligament calcification can give dagger spine appearance
  • hatchet deformity
  • subchondral erosions, sclerosis and proliferation on iliac side of SI joints
  • there can be bridging or fusion of the pubic symphysis

Radiographic findings are graded on a scale of 0 to 4 where 0 represents normal findings and 4 represents complete ankylosis.[3] A definitive diagnosis is considered with the following combinations:

  • Grade 3 or 4 at bilateral SI joints on radiograph with at least one physical finding
  • Grade 3 or 4 unilaterally (or Grade 2 bilaterally) with two physical findings

Standard questionnaires can also be used as part of the assessment to build a picture of the evolution of the disease.[2] Available questionnaires include:

  • AMOR criteria for Spondyloarthritis
  • BASDAI index ( Bath Ankylosing Spondylitis Disease Activity Index)
  • BASDMI (Bath Ankylosing spondylitis Metrology Index)
  • BASFI index ( Bath Ankylosing Spondylitis Functional Index)
  • BAS-G index ( Bath Ankylosing Spondylitis Global Index)

The modified New York criteria (1984) for diagnosing AS combines physical findings with radiograph studies:

  • Clinical criteria
    • Low back pain and stiffness for at least 3 months, which improves with exercise, but is not relieved by rest
    • Limited lumbar spinal motion in sagittal (sideways) and frontal (forward and backward) planes
    • Chest expansion decreased relative to normal values corrected for age and sex
  • Radiologic criteria
    • Bilateral sacroiliitis grade 2 to 4
    • Unilateral sacroiliitis grade 3 or 4
  • Grading
    • A patient can be classified as having definite AS if at least 1 clinical criterion (inflammatory back pain, limitation of mobility of the lumbar spine, or limitation of chest expansion) plus the radiologic criterion (radiographic sacroiliitis of grade 2 bilaterally or grade 3–4 unilaterally) are fulfilled.
    • A probable diagnosis of AS is made if three clinical criteria are present or the radiologic criterion is present without any signs or symptoms satisfying the clinical criteria [7]

Outcome Measures

Evaluation Scales

  • Bath Ankylosing Spondylitis Metrology Index (BASMI)
  • Revised Leeds Disability Questionnaire (RLDQ)
  • European Quality of Life (EuroQoL)
  • Bath AS Disease Activity Index (BASDAI; 0-100)

Laboratory values, such as the CRP, are used to monitor the effectiveness of medication treatments.


A thorough physical examination, particularly of the musculoskeletal system, is needed. Clinical signs are sometimes minimal in the early stages of the disease. Examination of the sacroiliac joints and the spine (including the neck), measurement of chest expansion and range of motion of the hip and shoulder joints, and a search for signs of enthesitis are critical in making an early diagnosis of AS. [6][16][3]

Video 1: The aim of the Schober Test is to assess the mobility of the lumbar spine, which can be abnormal even when it is not obvious to the individual.


Video 2: The lumbar spine side flexion test is another test to measure the lumbar spine mobility.


Video 3: When ankylosing spondylitis affects the mid-back region, normal chest expansion may be compromised. The aim of the chest expansion test is to assess the thoracic mobility.


Video 4: The tragus to wall test is a test to measure the cervical mobility.

Medical Management

First-Line Drug Treatment : NSAIDs

Non-steroidal anti-inflammatory drugs are primarily used for ankylosing spondylitis (AS) patients to reduce the inflammatory symptoms such as pain and stiffness of the spine and other joints. It is important to remember that NSAIDs do not alter the disease's cause and only affect the symptoms.[4] Commonly used NSAIDs for AS are tolmetin, sulindac, naproxen, diclofenac and indomethacin, [5] which is the most effective.[6]

Second-Line Treatments: Corticosteroids and DMARDs

When patients are refractory to NSAIDs, corticosteroid injections may be prescribed or disease modifying anti-rheumatic drugs (DMARDs)[4], including methotrexate and sulfasalazine. However, corticosteroids do not have evidence-based outcomes and DMARDs are only proven to be effective for the treatment of peripheral joint diseases.[6]

Biological Medications

Tumor Necrosis Factor Inhibitors(anti-TNF- alpha therapy)

Research has shown that patients with ankylosing spondylitis have an abundance of pro-inflammatory cytokine tumor necrosis factor (TNF) messenger RNA and proteins in the sacroiliac joints. The use of anti-tumor necrosis factor therapies has therefore proven to be positive.[11] [12] Etanercept [16]and Infliximab[12] have both been used to treat AS patients with successful results.


Biphosphonates have good outcomes on bone turnover, which is positive as ankylosing spondylitis is characterised by bone resorption and formation. Neridronate and pamidronate are amino-biphosphonates with similar effects as the TNF inhibitor Infliximab. [15]
All drugs have side effects, so patients with other health issues need to verify if they are able to take the recommended medicines.

Physical Therapy Management

Physical therapy is an essential part of the treatment of AS.[4] It aims to alleviate pain, increase spinal mobility and functional capacity, reduce morning stiffness, correct postural deformities, increase mobility and improve the psychosocial status of the patients. According to a Cochrane review completed by Dagfinrud and colleagues, an supervised or individual home-based exercise program is better than no intervention,[8] The main aspects of rehabilitation treatment include education, a program of personalized exercises and outline of physical activities to be completed at home or in a group based environment.[8]


According to a study conducted by conducted by Sweeney and colleagues, education to home self-care in the long term has proven to be effective.[8] Studies have highlighted how limited education and information can result in poor adherence to rehabilitation.[8] Selfcare and educational packages include education booklets and videos, reminder stickers and progression charts.[8] The failure or success of exercise program, is determined by the compliance with the prescribed program, which requires, motivation, participation and time, which can be monitored using diaries filled in by the patient or physiotherapist.[8]

Postural & Gestural re-education

The Global Postural Reeducation method has shown promising short- and long-term results [5] and includes specific strengthening and flexibility exercises. A global and functional approach is more efficient than localised exercises in AS patients.[6]
Group classes with the GPR method appears to result in greater improvement than with home exercises due to mutual encouragement, reciprocal motivation and exchange of experiences within the group environment. The effects of pulmonary function in AS patients may further decrease their psychological state and quality of life in patients, [11] so it is important to include respiratory exercises within any programme, [12] such as:

  • Twice the normal rate of inspiration through the nose and expiration through the mouth
  • Encourage normal expiration through the nose and normal expiration through the mouth
  • Deep breathing and then expiration through the mouth slowly
  • Resistance exercises for inspiratory pulmonary muscles

A rigorous exercise routine with postural correction can be applied to delay, and possibly stop, the progression of the disease. Spinal extension exercises are the key component and should be done twice daily. Education in self-management is essential to discourage therapist dependence. Young patients need a great deal of encouragement and support as self-worth understandably diminishes with the progression of postural deformity. [7]

Treatment is essentially to minimize or prevent deformity. These deformities are excessive dorsal kyphosis with compensatory cervical lordosis and hip flexion contracture. Non-Surgical treatment involves:

  • Proper sleeping posture on a solid, flat bed without pillow. Frequent sleeping or lying in a prone position.
  • Posture exercises with upper back hyperextension (performed with avoidance of lumbar hyperextension).
  • Breathing exercises to increase or maintain rib cage excursion, as well as instruction in abdominothoracic breathing.
  • Range of motion exercises for hips and knees to prevent flexion limitation and contractures.
  • Periodic rest periods with avoidance of fatigue.
  • Bracing or corseting (combined with exercises). [2]

Manual mobilisation improves chest expansion, posture and spinal mobility.[11] Both active angular and passive mobility exercises can be used in the physiological directions of the joints in the spinal column and the chest wall in flexion, extension, lateral flexion and rotation and in different starting positions (lying face down, sideways, on the back and in a sitting position). Passive mobility exercises consist of general, angular movements and specific translatory movements.

In addition to conventional exercises (flexibility exercises for cervical, thoracic and lumbar spine and major muscle groups) and respiratory exercises (pursed-lip breathing, expiratory abdomen augmentation, and synchronisation of thoracic and abdominal movement), aerobic exercises such as swimming and walking are recommended. Research has shown a significant increase in chest expansion following swimming programs and a significant increase in PvO2 and Six Minute Walk Test distances in patients practising swimming and/or walking aerobic exercises. [11] Aerobic exercises lead to a bigger chest expansion and therefore a better functional capacity and also decrease the chances of respiratory failure, It is recommended to perform moderate intensity aerobic exercises to improve the aerobic capacity without stressing the cardiovascular system. Strength exercises is recommended for AS to improve posture, to prevent osteoporosis and to prevent deconditioning.[20]

Spa therapy has shown significant positive short- and long-term effects on pain, stiffness, well-being and functioning of patients with AS.[15] However, this treatment is very expensive and since the optimal length of therapy is four weeks, this is unfeasible for many people, especially those who are in the workforce or have families at home.
Results of different studies shows us that an individual home-based or supervised exercise program is better than no intervention. Supervised group physiotherapy is better than home exercises and combined inpatient spa-exercise therapy followed by group physiotherapy is better than group physiotherapy alone. [15]

Exercise Type Methods Recommended Dosage Effects on Pulmonary Function

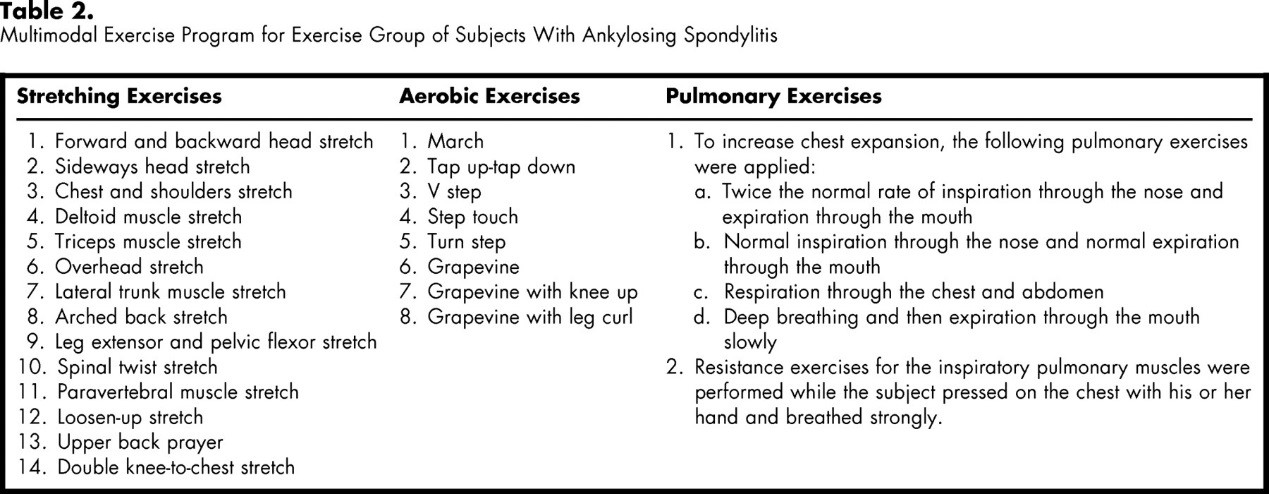

General Exercises See Table 2 below for recommended exercises to include in the exercise program[21](LOE:1B) 2 Times Per Week Minimum, For 6 Months Increased Functional Capacity, Improved Chest Expansion.
Pilates[22](LOE:1B)  Consists of a supervised Pilates session. The difficulty of the movements should be easy to moderate. Difficulty not to exceed 14 on the BORG scale. 1 Hour Sessions, 3 Times Per Week, For 12 Weeks Significant Improvements In Chest Expansion.
Incentive Spirometry[23](LOE:1B) This is a session of breath holding and controlling breaths. Patients should carry out 3-5 second breath holds and carry out Forced Expiratory Techniques interspersed between breath holds. This treatment should be combined with General Exercises and should not be used as a sole treatment (see above for general exercises 30 Minute Sessions, Once Per Day, For 16 Weeks Improved Chest Expansion and Improved Forced Vital Capacity
Inspiratory Muscle Training[24](LOE:1B) The supervised exercise program, delivered by a qualified physiotherapist, should include; motion and flexibility exercises of the cervical, thoracic, and lumbar spine; stretching of the hamstring muscles, erector spine muscle, and shoulder muscles; control abdominal and diaphragm breathing exercises and chest expansion exercises. In addition to these exercises at home patients should perform six loaded inspirations with a 60 second rest period between each inspiration. This sequence of six exercises continued with 45, 30, 15, 10 and five second rest periods up to 36 loaded inspirations. A rating of more than 17 on the BORG requires the patient to stop exercising. 40 minute session (supervised), Once Per Week, 5 Unsupervised Home Exercise Sessions Per Week Increased Aerobic Capacity, Improved Resting Pulmonary Function and Ventilatory Efficiency.
Manual Mobilisation [25](LOE:1B) Both active angular and passive mobility exercises can be used in the physiological directions of the joints in the spinal column and the chest wall in flexion, extension, lateral flexion and rotation and in different starting positions. Passive mobility exercises consist of general, angular movements and specific translatory movements. 1 Hour Sessions, 2 Times Per Week, for 8 Weeks Improved Chest Expansion, Posture and Spinal Mobility
Aerobic Exercise[26](LOE:5) Research shows that in the short term aerobic exercise has a major effect of all symptoms relating to ankylosing spondylitis. Although there is no bad form of aerobic exercise, studies show that swimming is the best for pulmonary rehabilitation. Studies also show that high impact contact sports should be avoided as this can have a negative impact on symptoms relating to AS 1 hour per day, 5 days per week. (more can be done however should not achieve more than 17 on the BORG Scale Improved Chest Expansion, Improved Functional Capacity and Decreases the Chance of Respiratory Failure.

Table of AS Exs.jpg

Hydrotherapy/Aquatic Physiotherapy

Hydrotherapy is used for many pathology’s relating to back pain.[27] The rationale for the use of hydrotherapy in patients with Ankylosing Spondylitis looks at addressing common symptoms such as stiffness and associated back pain, stooped posture and fatigue.

These factors include:

  • Warm water provides a relaxation effect the tight musculature around the back.
  • Buoyancy of water allows stretching to feel easier than on land.
  • Reduced pain while stretching/exercising as water provides shock absorption.
  • Easier to stay upright as effect of gravity reduced in water.
  • Effort required is reduced due to upward thrust of the water. In waist high water, body weight is half of what it would be on land. [28]

Evidence for the Use of Hydrotherapy/Aquatic Physiotherapy

Dunbar et al looked at the effect of hydrotherapy for patients with AS compared to home-based exercise programs. It concluded that an intensive hydrotherapy programme produced better outcomes in terms of pain and quality of life for AS patients compared to the home exercise group[29]and is a popular way to exercise, [30]although physiotherapist led formal hydrotherapy classes are not always easy to access.[31]

Spa therapy has shown significant positive short- and long-term effects on pain, stiffness, well-being and functioning of patients with AS.[32] However, this treatment is very expensive and since the optimal length of therapy is four weeks, this is unfeasible for many people financially.

Group Therapy

Group therapy has been reported to be superior to individualised therapy in improving thoracolumbar mobility and aerobic fitness, as well as having an important effect on patient reported global health[33]. Pilates has also been shown to have many positive effects on AS, most notably on improving physical capacity[34]. Other studies have noted a relationship between pilates and an improved quality of life particularly in patients who are in the early stages of AS even after a relatively short duration of treatment. While the method is easy to learn and adaptable to individual variations, it can be easily implemented in the rehabilitation treatment of ankylosing spondylitis[35].

Mindfulness Based Therapies

Non exercise-based interventions have also been shown to have positive effects in the management of AS such as mindfulness courses using a Vitality Training Program (VTP). In a 6-month follow up session statistically significant improvements were reported in psychological distress (measured by the General Health Questionnaire). Additionally, other improvements were reported in self-efficacy, pain and symptoms, emotional processing, fatigue, self-care ability and overall well-being[36].

Due to existing evidence suggesting the effectiveness of mindfulness interventions, scope has been established for its use in a group session in order to manage patient fatigue (which has been further sub-categorised into physical emotional, and psychological components). This is due to patients reporting that they often feel lost without any formal guidance or support and patients have expressed a preference for psychological therapies as opposed to a pharmacological one for managing fatigue. Mindfulness-Based Stress Reduction (MBSR) is a useful resource for self management. [37].

Treatment Phase

Initial/Acute Phase

The initial phase of AS is characterized by morning stiffness and pain in the spine.[8]

Primary Objective

  • control of the diffuse and intense pain secondary to joint stiffness,[8]
    • recovering proprioception, joint stability, restoring normal postural patterns and reduction of pain[8]
  • Intervention on pain along with pharmacological treatment prevents compensatory postures[8]

Secondary Objective

  • maintain the elasticity of the pelvis and spine to enable good respiratory function[8]

Remission Phase

The remission phase of AS is characterized by pain, restricted mobility of the spine +/- peripheral joints[8]

Primary Objective

  • Divided into short and long term goals.[8]
    • Short term goals include the improvement of body function and reduction of pain,[8]
    • Long-term goals include pain control, improvement in activities of daily living, general function and quality of life.[8]

Chronic Phase

The Chronic phase of AS is characterised by formation of diffused ankyloses, resulting in total rigidity of the spine, and assuming a curved orthostatic posture.[8]

Primary Objective

  • To enable the patient to maintain their residual function to guarantee the most autonomy possible.
    • Education on the importance of physiotherapy and body awareness is key in this phase of AS.
    • In-clinic sessions with manual therapy is essential to enable the patient to continue their home exercise programme.[8]

Considerations for Physical Therapy Management

Fatigue is a common complain in rheumatological conditions. It can be managed by taking regular microbreaks, avoiding sitting in the same position for long time periods, maintaining exercise and physical activity and having good sleep hygiene.

AS patients can suffer from flare-ups of increased disease activity, which can last from days to weeks. During the flare-up the patient may benefit from gentle stretching exercise, taking breaks and medications.

Joint protection management applies the ergonomics principles to ADL activities to preserve the functional ability.

Patient compliance can be achieved by determining the barriers facing the individual, including the patient’s exercise preference in the program, using different exercise varieties to avoid boredom and group therapy.

Educating the patient about his condition and how to manage it, besides having a patient-provider relationship are important for patients’ self managing.

ADL activities can be made easier using assistive devices and alternative techniques. For example, for managing shoes, slip-on shoes can be used or individual can raise his leg on a stool or place it on the opposite knee.

Driving can be difficult as a result of neck pain and stiffness, some tips for driving are taking breaks in long journeys and using a small pillow behind the back or under the buttocks for good posture.[20]

Clinical Bottom Line

Ankylosing spondyitis is a common chronic inflammatory rheumatic disease with unknown aetiology. Affected joints progressively become stiff and sensitive due to a bone formation at the level of the joint capsule and cartilage. This can lead to structural and functional impairments and a decrease in quality of life. Regions most affected by the disease are the axial skeleton and sacroiliac joints. A combination of medicines (such as non-steroidal anti-inflammatory drugs and biological medications) and physical therapy is recommended. Physiotherapy primarily consists of range of motion and respiratory exercises as well as working on postural corrections.


To download the PDF click here Living with a Chronic Disease – The Story of Ankylosing Spondylitis
https:// spondylitis ppt.PNG
Ankylosing Spondylitis

This presentation, created by Kyle Martin, Robby Martin, Haley Metzner, and Stacey Potter; Texas State DPT Class.

View the presentation


  1. Kataria R.K. et al., Spondyloarthropathies. Am Fam Physician, 2004, 69 (12):2853-2860 Level of Evidence 5
  2. 2.0 2.1 2.2 Chelsea L. Jordan et al., Differential Diagnosis and Management of Ankylosing Spondylitis Masked as Adhesive Capsulitis: A Resident's Case Problem, Journal of Orthopaedic & Sports Physical Therapy, 2012: 842–852. (Level of evidence 4)
  3. 3.0 3.1 3.2 3.3 3.4 3.5 Laura A. et al., Shoulder, Knee, and Hip Pain as Initial Symptoms of Juvenile Ankylosing Spondylitis: A Case Report, Journal of Orthopaedic & Sports Physical Therapy, 1998: 167–172. (Level of evidence 4)
  4. 4.0 4.1 4.2 4.3 4.4 4.5 Giles LGF. et al., The clinical anatomy and management of back pain series, Volume 2 Clincal Anatomy and Management of Thoracic Spine Pain, Butterworth Heinemann, 2000: 61-66. (Level of Evidence 5)
  5. 5.0 5.1 5.2 5.3 5.4 5.5 Mills K. et al., A colour atlas of low back pain, Wolfe, 12-13. (Level of Evidence 5)
  6. 6.00 6.01 6.02 6.03 6.04 6.05 6.06 6.07 6.08 6.09 6.10 6.11 Andersson B.J. G. et al., Lumbar spine syndromes, evaluation and treatment, Springer-Verlag Wien New York, 1989: 180-181. (Level of Evidence 5)
  7. 7.0 7.1 7.2 7.3 7.4 7.5 Braggings S., Back care, a clinical approach, Churchill livingstone; 2000: 49-50. (Level of evidence 5)
  8. 8.00 8.01 8.02 8.03 8.04 8.05 8.06 8.07 8.08 8.09 8.10 8.11 8.12 8.13 8.14 8.15 8.16 8.17 Nava T. Physiotherapy rehabilitation in patients with ankylosing spondylitis. Beyond Rheumatol [Internet]. 2019Dec.20 [cited 2020Sep.26];1(2):37-6. Available from:
  9. 9.0 9.1 9.2 9.3 Dean L, Jones G, MacDonald A, Downham C, Sturrock R, Macfarlane G. Global prevalence of ankylosing spondylitis. Rheumatology [Internet]. 2014 Apr [cited 2020 Sep 26]; 53(4), 650–657. Available from
  10. 10.0 10.1 10.2 Watad A, Bridgewood C, Russell T, Marzo-Ortega H, Cuthbert R, McGonagle D. The early phases of ankylosing spondylitis: emerging insights from clinical and basic science. Frontiers in Immunology. 2018 Nov 16;9:2668.
  11. 11.0 11.1 11.2 11.3 11.4 11.5 Alvarez I, López de Castro JA. HLA-B27 and immunogenetics of spondyloarthropathies. Curr Opin Rheumatol. 2000;12(4):248-253 (LOE:3A)
  12. 12.0 12.1 12.2 12.3 12.4 12.5 12.6 12.7 Baaj. A.A. et al., Handbook of spine surgery, Thieme, 2010: 180-182. (Level of evidence 5)
  13. Kataria R.K. et al., Spondyloarthropathies. Am Fam Physician, 2004, 69 (12):2853-2860 Level of Evidence 5
  14. Goodman C, Snyder T. Differential Diagnosis for Physical Therapists: Screening for Referral. St. Louis, MO: Saunders Elsevier: 2007. 539
  15. 15.0 15.1 15.2 15.3 15.4 15.5 15.6 Mandl P. et al., EULAR recommendations for the use of imaging in the diagnosis and management of spondyloarthritis in clinical practice, Ann Rheum Dis, 2015 (Level of evidence: 1A)
  16. 16.0 16.1 Bullough P.G. et al., Atlas of spinal diseases, Gower Medical Publishing, 1987: 105-109. (Level of evidence 5)
  17. bjchealthAU. Modified Schober's Test. Available from: [last accessed 01/12/12]
  18. bjchealthAU. Lumbar Side Flexion Test. Available from: [last accessed 01/12/12]
  19. bjchealthAU. Chest Expansion Test. Available from: [last accessed 01/12/12]
  20. 20.0 20.1 Living with a Chronic Disease – The Story of Ankylosing Spondylitis
  21. Ince G, Sarpel T, Durgun B, Erdogan S. Effects of a multimodal exercise program for people with ankylosing spondylitis. Physical therapy. 2006 Jul 1;86(7):924-35. LOE:1B
  22. Altan L, Korkmaz N, Dizdar M, Yurtkuran M. Effect of Pilates training on people with ankylosing spondylitis. Rheumatology international. 2012 Jul 1;32(7):2093-9. LOE:1B
  23. So MW, Heo HM, San Koo B, Kim YG, Lee CK, Yoo B. Efficacy of incentive spirometer exercise on pulmonary functions of patients with ankylosing spondylitis stabilized by tumor necrosis factor inhibitor therapy. The Journal of rheumatology. 2012 Sep 1;39(9):1854-8. LOE:1B
  24. Drăgoi RG, Amaricai E, Drăgoi M, Popoviciu H, Avram C. Inspiratory muscle training improves aerobic capacity and pulmonary function in patients with ankylosing spondylitis: A randomized controlled study. Clinical rehabilitation. 2015 Mar 25:0269215515578292. LOE: 1B
  25. Widberg K, Karimi H, Hafström I. Self-and manual mobilization improves spine mobility in men with ankylosing spondylitis-a randomized study. Clinical rehabilitation. 2009 Apr 29. LOE:1B
  26. Ozgocmen S, Akgul O, Altay Z, Altindag O, Baysal O, Calis M, Capkin E, Cevik R, Durmus B, Gur A, Kamanli A. Expert opinion and key recommendations for the physical therapy and rehabilitation of patients with ankylosing spondylitis. International journal of rheumatic diseases. 2012 Jun 1;15(3):229-38. LOE 5
  27. Baena-Beato PÁ, Artero EG, Arroyo-Morales M, Robles-Fuentes A, Gatto-Cardia MC, Delgado-Fernández M. Aquatic therapy improves pain, disability, quality of life, body composition and fitness in sedentary adults with chronic low back pain. A controlled clinical trial. Clinical rehabilitation. 2014 Apr 1;28(4):350-60. LOE:2B
  28. National Ankylosing Spondylitis Society (NASS). Hydrotherapy (Aquatic Physiotherapy). (accessed 16 January 2016). LOE:2C
  29. Dundar U, Solak O, Toktas H, Demirdal US, Subasi V, Kavuncu V, Evcik D. Effect of aquatic exercise on ankylosing spondylitis: a randomized controlled trial. Rheumatology international. 2014 Nov 1;34(11):1505-11. LOE:1B
  30. Davies H, Brophy S, Dennis M, Cooksey R, Irvine E, Siebert S. Patient perspectives of managing fatigue in Ankylosing Spondylitis, and views on potential interventions: a qualitative study. BMC musculoskeletal disorders. 2013 May 9;14(1):163. LOE:4
  31. Ward MM, Deodhar A, Akl EA, Lui A, Ermann J, Gensler LS, Smith JA, Borenstein D, Hiratzka J, Weiss PF, Inman RD. American College of Rheumatology/Spondylitis Association of America/Spondyloarthritis Research and Treatment Network 2015 Recommendations for the Treatment of Ankylosing Spondylitis and Nonradiographic Axial Spondyloarthritis. Arthritis & Rheumatology. 2015 Sep 1. LOE:1A
  32. Scholten-Peeters GGM, Dijkstra PU, Vaes P, Verhagen AP. Bohn Stafleu Van Longhum. Jaarboek Kinesitherapie. 2004. LOE:5
  33. Hidding A, van der Linden S, Boers M, Gielen X, de Witte L, Kester A, Dijkmans B, Moolenburgh D. Is group physical therapy superior to individualized therapy in ankylosing spondylitis? A randomized controlled trial. Arthritis & Rheumatism. 1993 Sep 1;6(3):117-25. LOE:1B
  34. Altan L, Korkmaz N, Dizdar M, Yurtkuran M. Effect of Pilates training on people with ankylosing spondylitis. Rheumatology international. 2012 Jul 1;32(7):2093-9. LOE:1B
  35. Berea S, Ancuţa C, Miu S, Chirieac R. The Pilates method in ankylosing spondylitis. rehabilitation. 2012 May 1;2:3. LOE:2B
  36. A mindfulness-based group intervention to reduce psychological distress and fatigue in patients with inflammatory rheumatic joint diseases: a randomised controlled trial 2012. LOE:1B
  37. Davies H, Brophy S, Dennis M, Cooksey R, Irvine E, Siebert S. Patient perspectives of managing fatigue in Ankylosing Spondylitis, and views on potential interventions: a qualitative study. BMC musculoskeletal disorders. 2013 May 9;14(1):163. LOE:4
