Definition[edit | edit source]
Developmental dysplasia of the Hip (DDH) also known as a congenital hip dislocation is a general term used to describe certain abnormalities of the femur, or the acetabulum, or both, nearly always diagnosed within the first two years of life, that results in inadequate containment of the femoral head within the acetabulum, resulting in an increased risk for joint dislocation, dislocatability, or inadequate joint development. In the joint the articulating bones are displaced which leads to separation of the joint surfaces.
There are two types of dislocation: typical and teratological. DDH occurs in approximately 1 in 1000 live births. The dislocation is more common in girls and the left hip is more affected than the right. There is also a chance that the dislocation is bilateral.
Clinically Relevant Anatomy[edit | edit source]
The Hip joint is a classical ball-and-socket joint. It meets the four characteristics of a synovial or diarthrodial joint: it has a joint cavity, joint surfaces are covered with articular cartilage, it has a synovial membrane producing synovial fluid, and it is surrounded by a ligamentous capsule.
Embryologically, the femoral head and acetabulum develop from the same block of mesenchymal cells. A cleft develops after 7 to 8 weeks and will separate the femoral head from the acetabulum. Postnatally, the acetabulum will develop and there will be a growth of the labrum which will deepen the socket. A deep concentric position of the femoral head in the acetabulum is necessary for a normal development of the hip. When the bone structures of the hip are fully grown, we can speak of a ball and socket joint between the rounded head of the femur and the cup-like acetabulum of the femur.
Etiology[edit | edit source]
There are several causes of DDH. First of all, there is the genetically determined joint laxity. This means that ligamentous laxity leads to lack of stability at the hip so that dislocation may easily occur in certain positions of the hip. It is possible that in females a ligament relaxing hormone may be secreted by the foetal uterus. This maternal relaxin hormone (a ligament relaxing hormone) which is commonly present in the mother during the time of pregnancy crosses the placental barrier and enter the foetus. If it is a female foetus then this relaxin hormone acts on the joints of foetus producing joint laxity, leading to dislocation. This may cause instability in the same way as genetically determined joint laxity. This is probably the reason while this disorder occurs more commonly in girls than in boys.
Hip Dysplasia can also be caused by a lot of structural abnormalities like a shallow acetabulum, a flat or irregular caput femoris, a femoral or acetabular anteversion, and a decreased head offset or perpendicular distance from the center of the femoral head to the axis of the femoral shaft. Another risk factor is swaddling the infant and the use of cradle board which locks the hip joint in an "abducted" position for extended periods.
Other risk factors are firstborn and breech birth. It has been found that the incidence of CDH is 10 times more in new borns with breech malposition. In breech position, the legs of the foetus are pressed inside the uterus leading to hip dislocation if the ligaments are lax. The caput femoris tends to be pushed out of the acetabulum. A narrow uterus also facilitates hip joint dislocation during fetal development and birth.
Finally genetically determined dysplasia of the hip can occur. This is created by a genetic factor which runs in the family or which is increased in certain ethnic populations (Native Americans and Sami people). Some studies suggest it has something to do with the hormone relaxine and others suggest it has something to do with chromosone 13. Due to a defect in the development of the acetabulum and also of the femoral head a dislocation can be developed. Conditions can also be bilateral or unilateral. With bilateral dysplasia both hips are affected. With unilateral dysplasia only one hip is affected.
Characteristics/ Clinical presentation[edit | edit source]
A hip is unstable when the femoral head is able to move within (subluxated) or outside (dislocated) the confines of the acetabulum.
Hip dysplasia will occur during the development of the hip. This means prenatal, during infancy and childhood. In this case the femoral head will be dislocated upwards and laterally from the acetabulum. This is because femoral head is not reduced into the depth of the socket. The femoral neck will be anteverted and the ossific centre for the roof of the acetabulum will develop late. Because of this process the surrounding muscles become contracted and there will be a limited abduction of the hip.
Hip dysplasia can be recognized by legs of different length, uneven skin folds on the thigh or asymmetric gluteus folds, Less mobility or flexibility on one side limping, toe walking, or a waddling, duck-like gait.
In 1979, Dr. John F. Crowe et al created a classification to define the degree of malformation and dislocation. This classification evaluates the amount of femoral head subluxation in relation to the acetabular height. The classification has 4 degrees from less severe(1) to severe(4).
|Crowe I||Femur and acetabulum show minimal abnormal development||Less than 50% dislocation|
|Crowe II||The acetabulum shows abnormal development||50% to 75% dislocation|
|Crowe III||The acetabula is developed without a roof. A false acetabulum develops opposite the dislocated femur head position. The joint is fully dislocated||75% to 100% dislocation|
|Crowe IV||The acetabulum is insufficiently developed. Since the femur is positioned high up on the pelvis this class is also known as "high hip dislocation"||100% dislocation|
Differential Diagnosis[edit | edit source]
Pain in the hip region can also be caused by:
- Hip joint contusion,
- Athletis pubalgia,
- Osteitis pubis,
- Inflammatory arthritis,
- Septic arthritis,
- Piriformis syndrome,
- Snapping hip syndrome,
- Femoral head avascular necrosis,
- Slipped femoral capital epiphysis,
- Legg-Calve-Perthes disease, or
- Referred pain from the lumbosacral and sacroiliac areas.
Diagnostic procedures[edit | edit source]
It is important to examine DDH in an early stage. This is not easy because of the lack of a definitive test or finding on examination. The disorder is also painless so there are no symptoms in the infant. Particularly bilateral dislocations are difficult to detect. All newborns are to be screened by physical examination. This examination includes an Ortolani or Barlow test.
If the tests are positive, the infant should be referred to an orthopedist. If the test is negative, but no asymmetric skin folds were detected or if the subluxation provocation test is positive, it is recommended that there is a follow up after two weeks by a pediatrician. When he then finds a positive Ortolani test or Barlow test, it is recommended to send the newborn to an orthopedist.
If these tests are negative but the provocation test is positive, an ultrasonography is recommended. In most cases, an ultrasonography will provide clarity about the disorder, but it is not recommended to carry out such a test for all newborn. A ultrasound has proven to be more useful defining the anatomy until the cartilage is ossified. Sometimes an MRI is also used. CT scans or 3D CT scans rarely are used. Sonographic examination is another diagnostic procedure. Its main disadvantage is that it might lead to over diagnosis, which might cause over treatment.
Other signs of hip dysplasia are asymmetric gluteus folds and an apparent limb-length inequality.
Medical Management[edit | edit source]
There is a difference in treatment approach between the neonatal cases and the cases where the disorder is examined between 6 months and 6 years. In the case where the dislocation is found on neonatal screening a 3 week wait is observed before intervention. Sometimes the hip becomes stable spontaneously. In this case it is still important that the child is re-examined at the age of 5 or 6 months. If on the other hand the hip is still unstable after three weeks, splinting in the reduced position in moderate abduction is recommended for a minimum of six weeks or for as long as instability persists. When splinting is needed for a longer period, the risk for the development of avascular necrosis of the femoral head will increase.
Between six months and six years there are three essential principles of treatment. First of all to secure the concentric reduction, secondly to provide conditions favorable to continued stability and normal development and thirdly to observe the hips regularly in order to detect any failure of normal development of the acetabulum and to apply appropriate treatment when necessary.
If possible, it is important to obtain reduction by non-operative means. Surgery is performed when other methods fail.
Closed reduction is often possible in babies up to eighteen months old. When DDH is diagnosed later, the chances increase that an operation is needed. Closed reduction is the standard practice and will apply weight traction to the limbs with the child either on a frame or in gallows suspension. While traction is maintained gradually to abduct the hips, a little more each day, until 80 degrees of abduction is reached. This will take three to four weeks.
Another option for treatment is diet. Dietary supplements are often used. Oral glucosamine comes from shellfish (although vegetarian options exist) and may help rebuild cartilage. An anti-inflammatory diet may help reduce inflammation. Ginger, garlic, green tea and Omega-3 fatty acids may have anti-inflammatory effects and can be found in fish and fish oil supplements, as well as in flaxseed, squash, collard greens, nuts, broccoli, cauliflower and spinach. Certain foods in the nightshade family can increase inflammation. The most common edible nightshades are tomato, potato, eggplant and red pepper.
Also anti-inflammatory medications or NSAIDs can be used. Patients can also be given steroid shots to reduce inflammation and pain. However some studies have shown that repeated use of cortisone can weaken tendons and soften cartilage.
Surgical Management[edit | edit source]
The other option of surgery is open reduction. This is used when a closed reduction fails to correct the joint. In an open reduction, the surgeon cuts into the hip capsule and re-positions the femoral head. Once the hip is sutured, a spica cast is applied for 4 months or longer to stabilize the hip.
Once children are older soft tissue surgery isn’t possible anymore. Then there are the bony surgeries. There are two options which are reshaping and redirecting. With the reshaping treatment the hip socket is reshaped to increase the hip congruency. This is only possible with children who have pliable bones. Redirecting is performed on older patients who no longer have pliable bones. The surgeon repositions the socket but does not change its shape.
Older children have the option between two surgeries. The first reshapes, redirects or salvages bone in order to preserve the natural joint for as long as possible. Shelf and Chiari osteotomy are some of those salvage procedures. In these cases non-articular cartilage is used to help hold the hip in place. The cartilage added in these procedures is fibrocartilage rather than true articular cartilage. The second option is a hip replacement.
Arthroscopy is a surgical procedure often performed on the soft tissue surrounding the joint. It's a minimally invasive procedure that can postpone more invasive surgery. In some cases where the dysplasia is relatively non-advanced, arthroscopy can rule out the need for further surgery altogether. Also the use of stem cells is possible. These stem cells are used in grafting or by seeding porous arthroplasty prosthesis with autologous fibroblasts or chondrocyte progenitor cells to assist in firmly anchoring the artificial material in the bone bed.
Physical Therapy Management[edit | edit source]
The treatment of hip dysplasia depends on the age of the child. The goal of the treatment is to position the hip in the proper position. Once the proper position is obtained the doctor will hold the hip in that position and that will allow the body to adapt to the new position. The younger the child, the better capacity to adapt the hip, and the better chance of full recovery.
When the child is younger then 6 month the use of a special brace called a Pavlik harness is used. The brace holds the hips of the baby in the correct position. Over time the joint begins normal formation. About 90% of the newborns treated with the Pavlik harness will recover fully. Also a Frejka Pillow is used but is not indicated in all forms of hip dysplasia.
Complications mainly arise because the sheet of the iliopsoas muscle pushes the circumflex artery against the neck of the femur and decreases blood flow to the femoral head. When the child is older then 6 months the Pavlik harness may not be successful. In that case a surgeon will place the hip in the proper position under anesthesia. Once in this position the child will be placed in a spica cast. The spica cast is similar to the Pavlik harness but allows less movement.

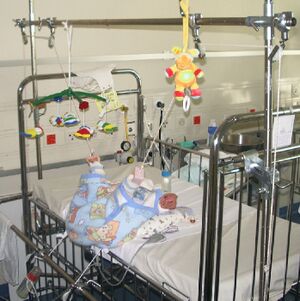

A treatment that isn’t often used is traction. Traction exists of the application of a force to stretch certain parts of the body in a certain direction. This will soften the tissue around the caput femoris and will allow the caput femoris to move back in the acetabulum. Traction consists of pulleys, strings, weights, and a metal frame attached over or on the bed. Traction is most often used for approximately 10 to 14 days. The application of ice on the painful regions helps to numb pain and reduces the inflammation.
Regular, low- or non-impact exercise such as swimming, aquatic therapy or cycling train strength and range of motion. Strong muscles will act like shock absorbers and provide greater support for the hip. Weight loss for those overweight can significantly reduce the stress on the hip and reduce pain. Physical therapy can be used to increase strength and flexibility around the joint which will decrease pain. Physical therapy can also be used to teach the body to better align itself which will lead to a decrease of stress on the joint.
In addition, there is another therapy called hippotherapy. Hippotherapy is a specialized therapy treatment strategy that uses a horse's movement to influence the patient/client in a various number of ways. During hippotherapy, functional riding skills are not taught; the client sits on the horseback and physically accommodates to the three-dimensional movements of the horse's walk. Hippotherapy is shown to motivate the child to engage in therapy, maintain the child's willingness to participate and provide a playful environment while facilitating pain free movement.
