Anterior Shoulder Instability

Original Editor - Liesbeth De Feyter, Daphné Bertrand, Lisa De Pelsemaeker, Arnaud Jacquet as part of the Vrije Universiteit Brussel Evidence-Based Practice Project

Top Contributors - Laura Ritchie, Scott Cornish, Andeela Hafeez, Emily McPherson, Admin, Leana Louw, Kim Jackson, Liesbeth De Feyter, Alexandra Stead, 127.0.0.1, Tony Lowe, Fasuba Ayobami, Borms Killian, Naomi O'Reilly, Kai A. Sigel and Wanda van Niekerk

Introduction

The term anterior shoulder instability refers to a shoulder in which soft tissue or bony insult allows the humeral head to sublux or dislocate from the glenoid fossa. It is an injury to the glenohumeral joint (GHJ) where the humerus is displaced from its normal position in the centre of the glenoid fossa and the joint surfaces no longer touch each other. Anterior shoulder instability can be either traumatic or atraumatic. The shoulder is the most mobile joint in the body, which in turn makes it vulnerable to instability and injury.

Also see related pages for shoulder instability, Shoulder Subluxation and shoulder dislocation.

Clinically Relevant Anatomy

The glenohumeral joint (multi-axial spheroidal joint) is one of the largest and most complex joints in the body. It has the greatest range of movement of any joint, but this leaves it inherently unstable and with the highest chance of dislocation of all the body's joints. The GHJ is formed where the humeral head fits into the glenoid fossa, an irregular oval shape, which is an extension of the scapula, like a ball and socket.

This joint is surrounded by numerous ligaments and muscles which give it stability. The surrounding capsule may also add some stability with the coracohumeral and glenohumeral ligaments reinforcing the capsule. Other important bones in the shoulder include:

• The acromion: a bony projection off the scapula
• The clavicle: which joins the acromion via the acromioclavicular joint and distal sternoclavicular joint to the axial skeleton
• The coracoid process: a hook-like bony projection from the scapula

The shoulder has several other important structures:

• The rotator cuff: A collection of 4 muscles originating from the scapula (supraspinatus, infraspinatus, subscapularis and teres minor) which stabilise the GHJ and allow the wide range of motion.
• The bursae: There are a number of bursae associated with the shoulder of which the subacromial bursa is the one most likely to become symptomatic with bursitis. It sits between the superior surface of the supraspinatus tendon and the acromion, coracoid, and the coracoacromial ligament, extending down over the humeral tendinous attachment of supraspinatus
• The labrum: A fibrous ring of cartilage which extends up from the glenoid providing stability in the form of a deeper cup for the humeral head to fit into.



Epidemiology

Anterior shoulder dislocations are much more common than posterior dislocations.

Research suggests that incidence of recurrent shoulder dislocation is significantly higher in younger patients. The consequences of an initial anterior glenohumeral dislocation in patients over forty years of age are quite different than in the younger population, primarily due to the increased incidence of rotator cuff tears and associated neurovascular injuries. The anterior or posterior supporting structures of the shoulder can also be disrupted following an anterior dislocation. In the younger population, anterior capsuloligamentous structures most commonly fail, whereas in older patients with pre-existing degenerative weakening of the rotator cuff, the posterior structures are more likely to fail.

Aetiology

The GHJ is stabilised by both dynamic and static structures.

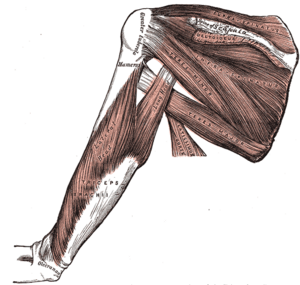

Rotator Cuff Muscles

• Dynamic stabilisers: Rotator cuff muscles (Supraspinatus, Infraspinatus, Teres Minor, Subscapularis), Biceps Brachii, deltoid
• Static stabilisers: Glenohumeral joint capsule, the glenohumeral ligaments, the labrum, negative pressure within the joint capsule, and the bony congruity of the joint.
• The labrum: This concave compression mechanism plays an important role in the stability of the glenohumeral joint by maintaining the localisation of the humeral head at the glenoid against translational forces. The glenoid concavity is established by the glenoid shape, the glenoid cartilage and the glenoid labrum. The glenoid labrum increases the width and depth of the glenoid. Instability is increased with the size of the glenoid defect.
• The glenohumeral ligaments: The superior glenohumeral ligament functions primarily to resist inferior translation and external rotation of the humeral head in the adducted arm. The middle glenohumeral ligament functions primarily to resist external rotation from 0° to 90° and provides anterior stability to the moderately abducted shoulder. The inferior glenohumeral ligament is composed of two bands, anterior and posterior, and the intervening capsule. The primary function of the anterior band is to resist anteroinferior translation.

Excessive lateral rotation or over-rotation of the thrower’s shoulder is purportedly associated with the development of internal impingement syndrome (which occurs when the shoulder is maximally laterally rotated and the intra-articular side of the supraspinatus tendon impinges on the adjacent posterior superior glenoid and glenoid labrum). Impingement syndrome is a potential precursor to anterior shoulder instability.

Glenohumeral Joint

Thrower's Shoulder

Characteristics/Clinical Presentation

Signs and symptoms for anterior shoulder instability:

• 95% of acute traumatic dislocations are anterior shoulder dislocations.
• Dead Arm syndrome indicates pathologic anterior instability. It occurs when the arm is in an abducted and laterally rotated position. The patient complains of a sharp anterior shoulder pain and tingling in the hand and drops the arm suddenly. This syndrome is often seen in overhead sports, such as volleyball, tennis, swimming and water polo.
• Rotator cuff weakness, particularly in external rotation and “empty-can” abduction, is common in athletes with anterior instability.
• Bankart lesions are the most common consequence of traumatic anterior shoulder instability.
• Humeral avulsion of the glenohumeral ligaments is also a cause of anterior shoulder instability.
• During an anterior dislocation, the posterolateral aspect of the humeral head contacts the anteroinferior rim of the glenoid, often resulting in a Hill Sachs defect. This defect has been observed in up to 80% of patients with initial anterior dislocation and in 100% of patients with recurrent anterior instability. If this bony concavity engages the anterior glenoid with the arm in 90° and external rotation it is term an “Engaging Hill Sachs Lesion”, and confers a higher risk of failure following an arthroscopic stabilisation procedure.

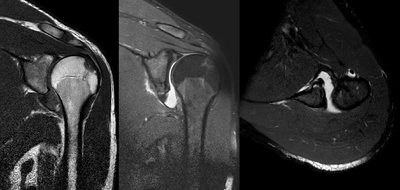

Shoulder MRI after dislocation showing Hill-Sachs lesion and labral Bankart's lesion

Symptoms related to recurrent anterior instability:

• Glenohumeral joint pain
• Shoulder stiffness with difficulty warming up for the activity
• Rotator cuff weakness
• Sensation of popping, grinding or catching deep in the shoulder joint
• Pain when reaching backward or above shoulder height
• Apprehension when sleeping with the arm overhead in abduction and external rotation
• Neurological: Tingling or burning in the lower arm and hand or localised numbness of the skin overlying the deltoid muscle
• Tenderness of the anterior glenohumeral joint line and the posterior rotator cuff

Differential Diagnosis

• Posterior instability
• Frozen shoulder/adhesive capsulitis
• Dead arm syndrome
• Rotator cuff tear
• Subacromial impingement
• Internal impingement
• Biceps tendinopathy

Diagnostic Procedure

Diagnosis of anterior shoulder instability is through a thorough history, radiology and three specific tests carried out in this order: apprehension, relocation and surprise (release) test. These tests are highly specific and strongly predictive of traumatic anterior glenohumeral instability. A fourth test, the bony apprehension test, is similar to the apprehension test, but is used to diagnose instability with a significant osseous lesion component.

History

When categorising GHJ instability, direction of instability, chronicity, and aetiology are taken into consideration. A thorough history and physical examination are essential. When taking a history from the individual, age, activity level, sports, and hand dominance should be recorded. It is also important to note if they have instability in any other joints, especially the contralateral shoulder. If the instability is traumatic in nature, getting thorough information on the position of the arm and force of the injury is important to understand the extent of the injury. Figuring out the arm position that causes symptom reproduction can be helpful when information about the position of the trauma is unknown.

Other important aspects of the history include if and how many prior shoulder subluxations or dislocations as well as all treatments that the individual has tried. This includes prior immobilisation, physiotherapy, and surgeries. While pain does not tend to be specific in regards to glenohumeral instability, it is important to understand the characteristics of the individual's pain. Other symptoms important to identify including any neurologic deficits and functional limitations. Figuring out whether the individual has subluxated, a partial separation, or dislocated their shoulder previously is also important to understand the level of trauma and instability. Understanding the impact of age at first dislocation is important in determining prognosis. Younger patients, under 20 years, with shoulder dislocations have a 90% chance of recurrent dislocations, while older patients, over 40 years, have a much lower chance of reoccurrence at only 10%. However, patients over 40 are prone to rotator cuff injuries. Understanding the goals and activity level of the patient is important as well when determining treatment as patients who are higher level athletes or compete in contact sports have a high risk of recurrence when the instability is treated conservatively.

Radiology

The first set of images taken are typically plain film radiographs with anteroposterior (AP) and axillary views. If the patient is unable to tolerate the set up for an axillary lateral view, then the images may be obtained with a Velpeau view in a semi-reclined, seated position. Other views that may be helpful include AP with the shoulder in internal rotation, a West Point view, a Didiee view, and a Stryker notch view.

Hill Sachs lesions are best viewed on AP radiographs in internal rotation and using a Stryker notch view. The Stryker notch view is obtained with the patient in the supine position and the arm forward flexed to 100° with the x-ray centred over the coracoid . An apical oblique view taken with the patient seated and rotated 45° and the beam directed 45° caudally is also useful for evaluating posterior humeral head defects. However, up to 60% of bone lesions can be missed on radiographs, so other imaging modalities, such as CT, MRI, and ultrasound, are also frequently used to diagnose Hill Sachs lesions.

In cases of bony Bankart lesions, recurrent instability can cause erosive or attritional loss of the glenoid rim causing progressive instability. Loss of 20% of the glenoid rim has been shown to cause significant recurrent instability and usually requires surgical correction of the bony deficiency. This deficiency may be seen on the axillary view and may be suggested by a break in the sclerotic line encircling the glenoid rim on the AP view of the shoulder. If further investigation is needed Didiee and West Point views can be considered. The Didiee view is obtained with the patient prone and the hand is placed on the ipsilateral iliac crest with the x-ray beam directed laterally at 45° to the floor. The West Point view is obtained in a similar prone position, with the shoulder abducted to 90° and the elbow bent with the arm hanging off the table. The x-ray beam is directed 25° medially and 25° caudally.

Other imaging modalities such as CT and MRI are useful in clinical situations where the diagnosis is unclear. CT may be useful to demonstrate and quantify bony abnormalities including glenoid bone loss or fractures, glenoid version and humeral head abnormalities. Adding contrast and performing a CT arthrogram of the shoulder can also provide some insight into the status of the labrum, rotator cuff and ligamentous complex. MRI is extremely useful, and the preferred method to evaluate these soft tissues, however, it does not provide as clear a picture of the associated bony injuries. In the acute setting, the hemarthrosis resulting from the dislocation serves as an intra-articular contrast medium. In the more chronic setting, gadolinium-enhanced MRI is a useful modality to investigate for soft tissue pathology such as labral tears and capsular damage.

In addition to Bankart lesions, an anterior periosteal sleeve avulsion (ALPSA) or a humeral avulsion of glenohumeral ligament (HAGL) can occur with an anterior shoulder dislocation. These are associated with higher recurrence rates and if missed they can lead to higher post-surgical failure rates. HAGL and ALPSA lesions are best seen using MRI and MR arthrogram.

Outcome Measures

• Disabilities of the Arm, Shoulder and Hand (DASH)
• Visual Analogue Scale (VAS)

Examination

Special tests

Load and shift test

This test can be performed with the patient in sitting or in supine. In sitting, the patient’s arm rests on the thigh with the examiner to their side and slightly behind. One hand is used to stabilise the scapula and the other is placed on the shoulder. The thumb is positioned over the posterior humeral head and fingers over the anterior humeral head. The humerus is loaded by pushing the humeral head into a neutral position within the fossa. Whilst maintaining the humeral head in this position, humerus is shifted forwards by applying an anterior force, to assess anterior instability. Some movement is normal, but should not be more than 25% of the humeral head.

Instability is classified as follows:

• Grade 1: Shift between 25% and 50%
• Grade 2: More than 50% shift with spontaneous reduction when the force is stopped,
• Grade 3: More than 50% shift without spontaneous reduction and remains dislocated. A combination of laxity and a reproduction of the symptoms determines a positive or negative result.


Apprehension, Relocation and anterior release tests

The patient is in a supine position, with the shoulder in 90° of abduction and maximal lateral rotation. A positive apprehension test occurs if the patient either looks apprehensive or resists further movement. To differentiate apprehension from other potential conditions, the relocation test is used. Start position is the same as that for the apprehension test, then an anterior-posterior force is applied to the shoulder to relocate the humerus in the fossa. The apprehension will decrease in the case of shoulder instability. The final test is the release test, where the posteriorly directed force applied in the relocation test is removed. The result is considered positive if the patient’s apprehension returns.

Anterior drawer test

The patient is in a supine position and the affected shoulder over the edge of the table. The patient’s arm should be relaxed. Position the arm in a combined midrange abducted position with forward flexion and lateral rotation. The stabilising hand is placed on the scapula so that the fingers and thumb secure the scapula at the spine of the scapula and the coracoid. The patient’s arm is pulled anteriorly to apply a gliding force to the glenohumeral joint. If an audible click is heard during the movement, the glenoid labrum may be torn, or the joint may be sufficiently lax to allow the humeral head to glide over the glenoid labrum rim.

Medical Management

Analgesics may be utilised to decrease pain while placing the patient in a position of comfort. It may be necessary to maintain cervical spine immobilisation as well, depending on circumstances. A discussion regarding conservative or operative management will depend on extent of injury, prior level of function, age, and comorbid injuries.

Physiotherapy Management

A conservative rehabilitation program needs to be patient specific, based on the type and degree of shoulder instability present and the desired level of return to function. A rehabilitation programme can consist of a combination of any of the following: Strengthening exercises, dynamic stabilisation drills, neuromuscular training, proprioception drills, scapular muscle strengthening and a graded return to the desired activities.

Rehabilitation factors

Seven key factors should be considered when designing a rehabilitation program:

• Onset of pathology: Pathological shoulder instability may result from an acute, traumatic event or chronic, recurrent instability. The goal of the rehabilitation program may vary greatly based on the onset and mechanism of injury. Following a traumatic subluxation or dislocation, the patient typically presents with significant soft tissue trauma, pain, and apprehension. Rehabilitation for the patient with a first-time traumatic episode will be progressed based on the patient's symptoms with emphasis on early controlled range of motion, reduction of muscle spasms and guarding, and relief of pain.
  Conversely, a patient presenting with atraumatic instability often presents with a history of repetitive injuries and symptomatic complaints. Rehabilitation for this patient should focus on early proprioception training, dynamic stabilisation drills, neuromuscular control, scapular muscle exercises, and muscle strengthening exercises to enhance dynamic stability due to the unique characteristic of excessive capsular laxity and capsular redundancy in this type of patient.
• Degree of instability: The second factor is the degree of instability present in the patient and the effect on their function.
  The rate of progression of the rehabilitation program will vary based upon the degree of instability and persistence of symptoms. For example, a patient with mild subluxations and muscle guarding may initially tolerate strengthening exercises and neuromuscular control drills more than a patient with a significant amount of muscular guarding.
• Frequency of dislocation: The primary traumatic dislocation is most often treated conservatively with immobilisation in a sling and early, controlled passive range of motion exercises, especially with first time dislocations. Chronic subluxations, as seen in the atraumatic, unstable shoulder may be treated more aggressively due to the lack of acute tissue damage and less muscular guarding and inflammation. Rotator cuff and periscapular strengthening activities should be initiated while ROM exercises are progressed. Caution is placed on avoiding excessive stretching of the joint capsule through aggressive ROM activities. The goal is to enhance strength, proprioception, dynamic stability and neuromuscular control, especially in the specific points of motion or direction which results in instability complaints.
• Direction of instability: Anterior instability is the most common traumatic type of instability seen clinically, where the humeral head is forced into extremes of abduction and external rotation, or horizontal abduction, the glenolabral complex and capsule may become detached from the glenoid rim.
• Concomitant pathologies: Other soft tissue need to be considered that may have been affected as well as the pre-morbid status of the soft tissue. These concomitant lesions may significantly slow down the rehabilitation program in order to protect the healing tissue.
• Neuromuscular control: The sixth factor to consider is the patient's level of neuromuscular control, particularly at end range of motion.
• Activity level: The final factor to consider in the conservative rehabilitation of the unstable shoulder is arm dominance and the desired activity level of the patient. If the patient frequently performs an overhead motion or sporting activities such as a tennis, volleyball, or a throwing sport, then the rehabilitation program should include sport specific dynamic stabilisation exercises, neuromuscular control drills, and plyometric exercises in the overhead position once full, pain free ROM and adequate strength has been achieved. Patients whose functional demands involve below shoulder level activities will follow a progressive exercise program to return to full ROM and strength.


Rehabilitation guidelines

Patients may be classified into two common forms of shoulder instability, traumatic and atraumatic. There are specific guidelines to consider in individualising the rehabilitation of each patient.

Traumatic Shoulder Instability

The program will vary in length for each individual depending on the seven rehabilitation factors.

Phase I: Acute motion phase

Goals:

• Protect healing capsular structures
• Re-establish pain-free range of motion
• Decrease pain, inflammation, and muscular spasms
• Retard muscular atrophy/establish voluntary muscle activity
• Re-establish dynamic stability
• Improve proprioception

Exercises:

• Range of motion: Pendulums, rope and pulley, active-assisted ROM (F, IR, ER)
• Strengthening/proprioception: Isometrics (flexion, abduction, extension, IR, ER, performed with arm at side)
• Rhythmic stabilisation: ER/IR/F/E in scapular plane, weight shifts (standing hands on table), proprioception training drills (active joint reproduction: F/ IR/ER)

During the early rehabilitation program, caution must be applied in placing the capsule under stress until dynamic joint stability is restored. It is important to refrain from pushing into external rotation or horizontal abduction with anterior instability.

Phase II: Intermediate phase

Criteria to Progress to Phase II:

• Nearly full to full passive ROM (ER may still be limited)
• Minimal pain or tenderness
• Good MMT of IR, ER, flexion and abduction
• Baseline proprioception and dynamic stability

Goals:

• Regain and improve muscular strength
• Normalise arthrokinematics
• Enhance proprioception and kinaesthesia
• Enhance dynamic stabilisation
• Improve neuromuscular control of shoulder complex

Exercises:

• Progress ROM activities at 90° abduction to tolerance (pain free)
• Initiate isotonic strengthening
• Emphasis ER and scapular strengthening: Abduction to 90°, side lying ER to 45°, push-ups onto table, biceps curls, triceps pushdowns, prone rowing
• Improve neuromuscular control of shoulder complex: PNF, wall stabilisation using a ball, static holds in push-up position on ball.

Phase III: Advanced strengthening phase

Criteria to Progress to Phase III:

• Full non-painful range of motion
• No palpable tenderness
• Continued progression of resistive exercises
• Normal muscle strength, dynamic stability and neuromuscular control

Goals:

• Improve strength/power/endurance
• Improve neuromuscular control
• Enhance dynamic stabilisations
• Prepare patient/athlete for activity

Exercises:

• Continue isotonic strengthening (progress resistance): Full ROM strengthening, bench press in restricted ROM, flat and incline chest press
• Emphasise PNF
• Advanced neuromuscular control drills: Ball flips on table, push-ups on ball with rhythmic stabilisations, manual scapular neuromuscular control drills, initiate perturbation activities
• Endurance training: Timed bouts of exercises (30-60s), increase number of repetitions, multiple bouts throughout day
• Initiate plyometric training: 2 hand-drills (chest pass throw, side to side throw, overhead soccer throw) and progress to 1 hand-drills (wall dribbles, 90/90 baseball throws)

Phase IV: Return to activity phase

Criteria to Progress to Phase IV:

• Full ROM
• No pain or palpable tenderness
• Satisfactory isokinetic test
• Satisfactory clinical exam

Goals:

• Maintain optimal level of strength/power/endurance
• Progressively increase activity level to prepare patient/athlete for full functional return to activity/sport

Exercises:

• Continue all exercises as in phase III
• Progress isotonic strengthening exercises
• Resume normal lifting program
• Initiate interval sport program

Follow up

• Isokinetic test (ER/IR/Abd/Add)
• Progress interval program
• Maintenance of exercise program

Atraumatic Instability

This multi-phased program is designed to allow the patient/athlete to return to their previous functional level as quickly and safely as possible. Each phase will vary in length for each individual depending upon the severity of injury, ROM and strength deficits, and the required activity demands of the patient.

Phase I: Acute phase

Goals:

• Decrease pain/inflammation
• Re-establish functional range of motion
• Establish voluntary muscular activation
• Re-establish muscular balance
• Improve proprioception
• Decrease pain and inflammation
• Therapeutic modalities (i.e. ice, electrotherapy)
• NSAIDs
• Gentle joint mobilisations (Grade I and II) for neuromodulation of pain

Exercises:

• Refrain from activities and motion in extremes of ROM
• ROM exercises: Pendulum, rope and pulley
• Strengthening exercises: Isometric, flexion, abduction, extension
• Proprioception
• Active joint reposition drills for ER/IR

Phase II: Intermediate phase

Criteria to Progress to Phase II:

• Full functional ROM
• Minimal pain or tenderness
• “Good” MMT

Goals:

• Normalise arthrokinematics of shoulder complex
• Regain and improve muscular strength of glenohumeral and scapular muscles
• Improve neuromuscular control of shoulder complex
• Enhance proprioception and kinaesthesia

Exercises:

• Initiate isotonic strengthening: IR/ER (side-lying dumbbell), abduction to 90°
• Initiate eccentric exercises at 0° abduction, IR/ER
• Improve neuromuscular control of shoulder complex: Rhythmic stabilisation drills at inner, mid, and outer ROM, proprioceptive, scapulothoracic/glenohumeral musculature, PNF, weight shifts hand on ball, wall stabilisation drills.

Phase III: Advanced strengthening phase

Criteria to Progress to Phase III:

• Full pain-free ROM
• No pain or tenderness
• Continued progression of resistive exercises
• Good to normal muscle strength

Goals:

• Enhance dynamic stabilisation
• Improve strength/endurance
• Improve neuromuscular control
• Prepare patient for activity

Exercises:

• Continue isotonic strengthening
• Continue eccentric strengthening
• Emphasise PNF exercises with rhythmic stabilisation hold
• Continue to progress neuromuscular control drills: push-ups with rhythmic stabilisation, progress to unsteady surface, medicine ball, rocker board
• Program scapular neuromuscular control training: Side-lying manual drills
• Emphasise endurance training: Timed sessions of exercise (30-60s), increasing number of reps

Phase IV - Return to activity phase

Goals:

• Maintain optimal level of strength/power/endurance
• Progressively increase activity level to prepare patient/athlete for full functional return to activity/sport

Exercises:

• Continue all exercises as in phase III
• Initiate interval sport program
• Patient education

Criteria to Progress to Phase IV:

• Full ROM
• No pain or palpable tenderness
• Satisfactory isokinetic test
• Satisfactory clinical exam

Clinical Bottom Line

• Shoulder instability may have a traumatic or atraumatic cause.
• Anterior shoulder instability is an injury to the shoulder joint so that the upper arm is displaced from its normal position in glenoid and the joint surfaces no longer contact each other.
• Anterior shoulder dislocations are much more common than posterior dislocations.
• The recurrence rate after primary shoulder dislocation is greatest in individuals less than 20 years old. Anterior instability accounts for 95% of acute traumatic dislocations.
• Diagnosis of anterior shoulder instability is made through history, radiology and the following three tests: apprehension, relocation and surprise (release) test, performed respectively.
• Rehabilitation should be based on an individual basis with consideration to the patient’s pre-morbid state and level of activity.
