Introduction[edit | edit source]

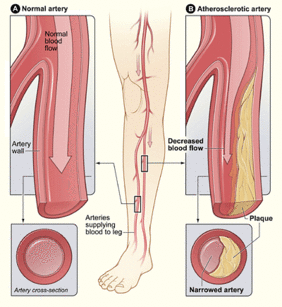

PAD

The ankle-brachial index (ABI) is a quick, non-invasive technique used to check vascular status and for peripheral arterial disease (PAD)[1][2]. It was first described by Winsor in 1950[3].

The ABI is the ratio between the systolic blood pressure of the lower limb (specifically at the ankle) and the upper limb, to assess for narrowing or blockages in the arteries in the legs[1][4].

Indications[edit | edit source]

Symptoms of peripheral artery disease:

  • Intermittent claudication or cramping pain in the legs.[5]
  • Wounds on the legs that are slow to heal.[6]
  • Leg that feels colder than other parts of the body or is a different shade of color. [6]


Those with risk factors for PAD, such as:[4]

Contraindications[edit | edit source]

  • Patients with confirmed or suspected DVT, because of the possibility of breaking of the thrombus.
  • Severe leg pain.[5]

Procedures[edit | edit source]

Tools[edit | edit source]

  • Doppler (an ultrasound machine that measures blood flowing through the vessels).[7]
  • Blood pressure monitor and the pressure cuffs to put around the limb.[5]

Preparation[edit | edit source]

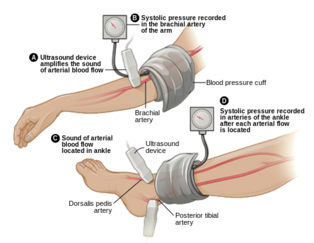

ABI measurement
  • Rest for 10-20 minutes prior to the test.
  • Wear loose, comfortable clothing.
  • Avoid nicotine/ smoking for 2 hours prior to the test.
  • Supported, comfortable supine position.

Technique[edit | edit source]

  1. Place the cuff around the patient's arm, use the doppler and press against the skin at the level of the brachial artery in the arm. Inflate the cuff to about 20 mmHg above the last audible pulse. The Doppler signal should disappear. Then slowly deflate the cuff, approximately 1 mmHg/sec. When the Doppler signal re-appears, the pressure of the cuff is equal to the brachial systolic pressure. Record the brachial systolic pressure.
  2. Place the cuff around the lower leg and locate two arteries:
    1. Dorsalis pedis, which is a branch from the anterior tibial artery, it is located between the tibialis anterior and extensor hallucis longus
    2. Posterior tibial artery, that is behind the medial malleolus.
  3. Repeat the same technique as the arm to record the dorsalis pedis and posterior tibial arterty: using the doppler to locate the signal, inflating the cuff and then deflating until the signal re-appears.
  4. The ABI value is calculated by taking the higher pressure of the 2 arteries at the ankle, divided by the brachial arterial systolic pressure.
  5. Repeat the ankle measurement for the other leg in order to calculate its ABI.[8]


Demonstration video:

[9]

Results and Interpretation[edit | edit source]

[8]
ABI value Interpretation Recommendation
<0.5 Severe arterial disease Refer to vascular specialist
0.5-0.8 Moderate arterial disease Refer to vascular specialist
0.8-0.9 Mild arterial disease Treat risk factors
0.9-1 Acceptable None
1-1.4 Normal range None
>1.4 Calcification of vessels Refer to vascular specialist

Evidence[edit | edit source]

  • A 2019 meta-analysis found sparse evidence for the validity of the ABI for diagnosing PAD in people with leg pain on exercise that is alleviated by rest.[10]
  • A 2019 systematic review deemed the inter- and intra-tester reliability of the ABI as acceptable, however, the authors note the validity of the included studies is undetermined. [11]
  • The ABI does not measure limb microvascular perfusion, which is believed to be a main cause of PAD symptoms and tissue injury.[12] This study supports the use of contrast-enhanced ultrasound alongside the ABI.
  • One study of 201 patients found oscillometric ABI showed good accuracy of PAD diagnosis, however, the authors noted high incidence of oscillometric errors and difficulties with interpreting the readings.[13]
  • When used in patients with diabetes the ABI has reduced sensitivity. Nevertheless, a 2019 systematic review found it is valid in the diabetic population as long as the threshold of diagnosis is raised or instead, the lowest systolic pressure value measured at the ankle should be used. [14]

Resources[edit | edit source]

Ankle-Brachial Index
