Hydrotherapy in ACL Rehabilitation
Original Editor - Falcone Tseng
Introduction[edit | edit source]

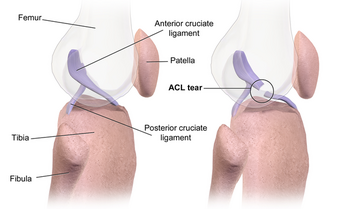

Anterior Cruciate Ligament (ACL) injuries are a common orthopedic condition, especially among athletes and young people, which can have long term physical and lifestyle impacts. This may include post traumatic arthritis, meniscus or cartilage injuries, knee instability, as well as impaired quality of life and not returning to sport. At present, recommended treatment options are surgical reconstruction, or conservative management, with both these approaches requiring rehabilitation . Research continues to investigate how to optimize ACL rehabilitation, including utilizing hydrotherapy. Hydrotherapy is the delivery of physiotherapy treatment in an aquatic environment, utilizing the properties of water (density, buoyancy, hydrostatic pressure and viscosity).
Outcome Measures of ACL Rehabilitation[edit | edit source]
- Instability episodes
- Pain
- Passive range of motion (knee flexion & extension)
- Muscle strength
- Thigh circumference (thigh girth, thigh muscle mass, knee joint swelling)
- Active range of motion (knee flexion & extension)
- Issues with:
- Measures of knee function:
- Medical Outcomes Study 36-Item Short-Form Health Survey (SF-36)
- International Knee Documentation Committee (IKDC) form, Lysholm and Tegner scores
- Knee Injury and Osteoarthritis Outcome Score (KOOS4)
- Graft rupture post-ACL reconstruction
- Contralateral ACL injury
- Lachman and pivot-shift tests
- 6 minute walk test (6MWT)
Advantages of Hydrotherapy in ACL and ACL Reconstruction Rehabilitation[edit | edit source]
- Reduce pain and swelling
- Early weightbearing
- Posture, gait and motor pattern retraining in a supported environment
- Water resistance induced muscular conditioning
- Cardiovascular exercise
- Early plyometrics
- In later stages of rehabilitation can support the between session recovery and optimal load management
Evidence[edit | edit source]
A study of 67 amateur or professional athletes post-ACL reconstruction, found patients who underwent 3 weeks of combined hydrotherapy with conventional rehabilitation, had superior outcomes in proprioception, walking and muscle strength in the short and medium term, compared to participants exclusively in conventional rehabilitation program . In addition, another study found patients who received innovative aquatic proprioceptive training alongside conventional rehabilitation had improved proprioception efficiency compared with those receiving only conventional treatment.
Another trial found that ACL reconstruction patients placed through 9 weeks of aquatic rehabilitation immediately post-surgery had better clinical parameters in muscle strength and mass circumference, pain, swelling, and range of motion compared to those on land rehabilitation .
A smaller case study of 3 subjects demonstrated no risk of harm in utilizing hydrotherapy to accelerate rehabilitation of ACL reconstruction .
One study compared water-based treadmill walking training with land-based treadmill walking training via a randomized, single blind trial with 60 patients post anterior ACL reconstruction. They found the ratio of peak torque to body weight ratio for the knee extensor muscles, passive position sense and Lysholm scores showed significantly greater improvement in the water-based group than in the land based group.
Further research is needed, including among non-athlete populations. For example, a 2022 systematic review for the OPTIKNEE consensus did not include hydrotherapy due to its inclusion in only 1 of the 142 randomized control trials reviewed.
Considerations for ACL hydrotherapy rehabilitation design[edit | edit source]
For ACL injury or reconstruction rehabilitation, the hydrotherapy program can include:
- Gait training
- Quadriceps and hamstring strengthening (closed and open kinetic chain exercises)
- Strength and endurance training (running and cycling)
- Hip and calf maintenance and strengthening
- Balance and proprioception exercises
- Plyometric training
- Sport-specific rehabilitation
Resources[edit | edit source]
References:[edit | edit source]
- Krause M, Freudenthaler F, Frosch KH, Achtnich A, Petersen W, Akoto R. Operative Versus Conservative Treatment of Anterior Cruciate Ligament Rupture. Dtsch Arztebl Int. 2018 Dec 24;115(51-52):855-862.
- Filbay SR, Grindem H. Evidence-based recommendations for the management of anterior cruciate ligament (ACL) rupture. Best Pract Res Clin Rheumatol. 2019 Feb;33(1):33-47.
- Kohn L, Rembeck E, Rauch A. Verletzung des vorderen Kreuzbandes beim Erwachsenen : Diagnostik und Therapie [Anterior cruciate ligament injury in adults : Diagnostics and treatment]. Orthopade. 2020 Nov;49(11):1013-1028.
- Aquatic Therapy Association of Chartered Physiotherapists (ATACP). About ATACP. Available from: https://atacp.csp.org.uk/content/about-atacp (Accessed 19/12/2022)
- Fithian DC, Paxton EW, Stone ML, Luetzow WF, Csintalan RP, Phelan D, Daniel DM. Prospective trial of a treatment algorithm for the management of the anterior cruciate ligament-injured knee. The American journal of sports medicine. 2005 Mar;33(3):335-46.
- Tovin BJ, Wolf SL, Greenfield BH, Crouse J, Woodfin BA. Comparison of the effects of exercise in water and on land on the rehabilitation of patients with intra-articular anterior cruciate ligament reconstructions. Physical Therapy. 1994 Aug 1;74(8):710-9.
- Zamarioli A, Pezolato A, Mieli E, Shimano A. The significance of water rehabilitation in patients with anterior cruciate ligament reconstruction. Physiotherapy. 2008 Apr 1;16(2):3-6.
- Momberg BL, Louw Q, Crous L. Accelerated hydrotherapy and land-based rehabilitation in soccer players after anterior cruciate ligament reconstruction: a series of three single subject case studies. South African Journal of Sports Medicine. 2008 Dec 1;20(4):109-14.
- Frobell RB, Roos EM, Roos HP, Ranstam J, Lohmander LS. A randomized trial of treatment for acute anterior cruciate ligament tears. New England Journal of Medicine. 2010 Jul 22;363(4):331-42.
- Salmon L, Russell V, Musgrove T, Pinczewski L, Refshauge K. Incidence and risk factors for graft rupture and contralateral rupture after anterior cruciate ligament reconstruction. Arthroscopy. 2005 Aug 1;21(8):948-57.
- Kostogiannis I, Ageberg E, Neuman P, Dahlberg LE, Fridén T, Roos H. Clinically assessed knee joint laxity as a predictor for reconstruction after an anterior cruciate ligament injury: a prospective study of 100 patients treated with activity modification and rehabilitation. The American journal of sports medicine. 2008 Aug;36(8):1528-33.
- Buckthorpe M, Pirotti E, Villa FD. BENEFITS AND USE OF AQUATIC THERAPY DURING REHABILITATION AFTER ACL RECONSTRUCTION -A CLINICAL COMMENTARY. Int J Sports Phys Ther. 2019 Dec;14(6):978-993.
- Torres-Ronda L, i del Alcázar XS. The properties of water and their applications for training. Journal of human kinetics. 2014 Dec 1;44(1):237-48.
- Peultier-Celli L, Mainard D, Wein F, Paris N, Boisseau P, Ferry A, Gueguen R, Chary-Valckenaere I, Paysant J, Perrin P. Comparison of an innovative rehabilitation, combining reduced conventional rehabilitation with balneotherapy, and a conventional rehabilitation after anterior cruciate ligament reconstruction in athletes. Frontiers in surgery. 2017;4:61.
- Hajouj E, Hadian MR, Mir SM, Talebian S, Ghazi S. Effects of Innovative Aquatic Proprioceptive Training on Knee Proprioception in Athletes with Anterior Cruciate Ligament Reconstruction: A Randomized Controlled Trial. Arch Bone Jt Surg. 2021 Sep;9(5):519-526.
- Li D, Zhang Q, Liu X, Chen C, Lu J, Ye D, Li Y, Wang W, Shen M. Effect of water-based walking exercise on rehabilitation of patients following ACL reconstruction: a prospective, randomised, single-blind clinical trial. Physiotherapy. 2022 Jun;115:18-26
- Singh SP, Borthwick KG, Qureshi FM. Commentary: Comparison of an Innovative Rehabilitation, Combining Reduced Conventional Rehabilitation With Balneotherapy, and a Conventional Rehabilitation After Anterior Cruciate Ligament Reconstruction in Athletes. Front Surg. 2021 Jun 23;8:665748.
- Culvenor AG, Girdwood MA, Juhl CB, Patterson BE, Haberfield MJ, Holm PM, Bricca A, Whittaker JL, Roos EM, Crossley KM. Rehabilitation after anterior cruciate ligament and meniscal injuries: a best-evidence synthesis of systematic reviews for the OPTIKNEE consensus. Br J Sports Med. 2022 Dec;56(24):1445-1453.
