Electrocardiogram

Introduction[edit | edit source]

ECG Waves.png

An electrocardiogram also termed an ECG or EKG (K means kardia for heart in Greek) or a 12 lead ECG. is a simple non-invasive test that records the heart's electrical activity[1].

  • The ECG machine is designed to recognise and record any electrical activity within the heart.
  • It provides information about the function of the intracardiac conducting tissue of the heart and reflects the presence of cardiac disease through its electrical properties.
  • Understanding ECG helps to understand how the heart works.
  • With each heartbeat, an electrical impulse starts from the superior part of the heart to the bottom. The impulse prompts the heart to contract and pumps blood.
  • It was invented by a Dutch physician, William Einthoven in 1902.

Some heart problems are easier to diagnose when your heart is working hard and beating fast. During stress testing i.e. exercise ECG, exercise is used to make the heart work hard and beat fast while an EKG is done. If exercise can't be done, you'll be given medicine to make your heart work hard and beat faster[2].

  • Heart rate and blood pressure will also be monitored throughout the test period. It usually takes about 7 to 12 minutes to complete[2].

An adequate understanding of the Heart and coronary distribution plays a vital role in understanding ECG reading. see Anatomy of the Human Heart....

Purpose of ECG Test[edit | edit source]

ECG is used to

  1. Detect bradycardia and tachycardia.
  2. Determine if symptoms, such as chest pain, shortness of breath, or palpitations are due to a heart problem[2].
  3. Know a steady or irregular heart rhythm and electrolyte imbalance.[3]
  4. Know the strength and timing of electrical signals as they pass through each part of your heart
  5. Detect other disorders that affect heart function.
  6. Study and detect many heart problems, such as heart attacks, arrhythmia, heart failure, congenital heart disease[4], and rheumatic heart disease.
  7. Assess coronary blood flow and heart valves integrity.
  8. Monitor deeply-sedated patients and for consciously-sedated patients with compromised cardiovascular function.
  9. Monitor some medications for the heart.
  10. The indications for exercise electrocardiography include ascertaining the correct exercise prescription, the investigation of angina and post-myocardial infarction assessment as well as the postoperative examination of bypass surgery[2].
  11. Evaluation of metabolic disorders and blunt cardiac trauma[5]
  12. Vital in Cardiopulmonary resuscitation
  13. Monitoring in anesthesia during surgery as well in preoperative, intraoperative and postoperative monitoring
  14. Assessment in a sports physical exam to rule out cardiomyopathy[6]

Electrode and Lead[edit | edit source]

An electrode is a sensor (conductive pad) attached to the skin and enables recording of electrical currents. An ECG lead is a graphical description of the electrical activity of the heart created by reading several electrodes. This means that each ECG lead is gotten by analysing the electrical currents detected by several electrodes[1]. A 12-lead ECG is obtained using 10 electrodes. These 12 leads consists of limb leads and chest leads (percordial leads).  For further reading see...

To better under why there are only 10 leads instead of 12 leads read about Einthoven's triangle and the heart's action potential generation.

ECG PAPER[edit | edit source]

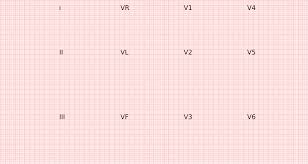

The ECG paper is a strip of graph paper with large and small grids with horizontal axis (Time in seconds) and vertical axis(amplitude in volts). Each 1 mm square (the smallest square) represents 0.04 second and each large square (5 mm) represents 0.2 second. On the vertical axis, each large square represents 0.5mV and each small block equals 0.1mV. ECG paper.jpg ECG Paper.jpg

Procedure[edit | edit source]

The procedures are to be explained to the patient and what is to be expected during testing will also be clearly communicated to the patient.

Electrode Placement[edit | edit source]

Limb Sensor Application[edit | edit source]

Place the 4 limb sensors on a smooth fleshy area of the lower inner forearm and lower inner legs, or upper inner arms and lower inner thighs, or upper inner arms and lower abdomen[7]. Attach the limb leads.

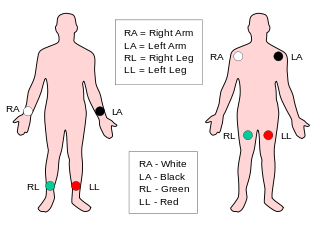

Limb leads placement.png

Chest Sensor Application[edit | edit source]

Place the 6 Chest sensors on the patient’s chest as follows:
  • V1 Fourth intercostal space at right border of the sternum
  • V2 Fourth intercostal space at left border of the sternum
  • V3 Midway between position V2 and position V4
  • V4 At the mid-clavicular line in the fifth intercostal space
  • V5 At the anterior axillary line on the same horizontal level as V4
  • V6 At the mid-axillary line on the same horizontal level as V4 and V5

Attach the chest leads.

12 lead placement.jpg
12 lead ecg placement.png

Stress Test (Exercise Electrocardiogram)[edit | edit source]

Before exercise commencement, the investigator will perform an EKG at a resting heart and also take blood pressure reading.

Conditions to end the test will be told to the patients and that they should inform the investigator if they feel any of the following:

  • Chest or arm discomfort
  • Short of breath
  • Dizzy
  • Lightheaded
  • Any other unusual symptoms

At regular intervals, the lab personnel will ask how you are feeling.

It’s normal for your heart rate, blood pressure, breathing rate, and perspiration to increase during the test. The lab personnel will watch for anything on the EKG monitor that suggests the test should be stopped.

The patients starts the exercise at slow pace (e.g. walking on a treadmill or pedaling a stationary bicycle without resistance at a leisure pace). The intensity of the exercise will be gradually increased, until the patient feels exhausted. The patient then reverts back to slow walking pace or pedal slowly for a couple of minutes to cool down. The heart rate, blood pressure, and EKG will continue to be monitored until the levels begin returning to normal.

If medication is used, an IV will be inserted in on the arm in order to have the medication administered.

Electrocardiogram Wave[8][edit | edit source]

•The first wave (P wave) represents atrial depolarisation (ventricular filling)

Normal ecg one wavelength.png

•Q wave representing septal depolarisation

•R wave representing ventricular depolarisation

•S wave representing depolarisation of the Purkinje fibres

•QRS is ventricular depolarisation

•T wave is  ventricular repolarisation

•ST segment is a flat line any change shows myocardial infarction

• P wave, QRS complex, and T wave show the 3 phase of cardiac cycle in one heart beat.

•after the PQRST complex a U wave, seen in electrolyte imbalance(potassium)[9]

Clinician should be aware that some changes in reading are commonly noted so it should not serve as a concern unless other symptoms are present to validate the supposed pathology. It is paramount to compare the current ECG with past reading if any, because any change or difference may point out an anomaly.

The ECG must always be interpreted systematically because failure to do so, may be detrimental. The step by step sequence of interpreting ECG makes it easy for anyone, as well as reduces the chances of missing important abnormalities and also expedite the process.

ECG changes should be put into a clinical context. For example, ST-segment elevations are common in the population and should not raise suspicion of myocardial ischemia if the patient do not have symptoms suggestive of ischemia.

Rhythm[edit | edit source]

Assess ventricular (RR intervals) and atrial (PP intervals) rate and rhythm by checking:

  • ventricular rate (beats/min)
  • regular or irregular ventricular rhythm
  • atrial rate (beats/min)
  • regular or irregular atrial rhythm
  • P-waves should precede every QRS complex and the P-wave should be positive in lead II.

Possible findings are:

  1. Sinus rhythm (which is the normal heart rhythm) has the characteristics heart rate of 50–100 beats/minute,P-wave before every QRS complex and positive in lead II and also a constant PR interval.
  2. Bradycardia: sinus bradycardia is seen in a skipped rhythm, Causes are second and third degree AV block, sinoatrial block and arrest termed sinus node dysfunction (SND) bradycardia and sick sinus syndrome (SSS) if symptomatic.
  3. Tachycardia (tachyarrhythmia) with narrow QRS complexes (QRS duration <0.12 second): Causes are sinus tachycardia, inappropriate sinus tachycardia, sinoatrial re-entry tachycardia, atrial fibrillation, atrial flutter, atrial tachycardia, and multifocal atrial tachycardia. Tachyarrhythmia with narrow QRS complexes rarely cause circulatory compromise.
  4. Tachycardia (tachyarrhythmia) with wide QRS complexes (QRS duration ≥0.12 second): The main cause is ventricular tachycardia and it can be life-threatening. QRS complexes become wide due to abnormal ventricular depolarization but 10% of wide complex tachycardia starts from the atria.

P-wave Morphology and PR Interval[edit | edit source]

Assess P- wave morphology and PR interval by checking:

  • P-wave is actually positive in leads II, III and aVF.
  • All leads P-wave duration is <0.12 second
  • All leads P-wave amplitude is ≤2.5 mm.
  • All leads PR interval must be 0.12–0.22 second.

Possible findings are:

  1. A P-wave that is not positive in lead II is not sinus rhythm.
  2. First-degree AV block seen when PR interval >0.22 second
  3. Pre-excitation (WPW syndrome) seen when PR interval <0.12 second.
  4. P-wave may be biphasic in V1 (the negative deflection should be <1 mm). It may have a prominent second hump in the inferior limb leads (particularly lead II)
  5. Longer P-wave duration, amplified second hump in lead II and enhanced negative deflection in V1 depicts P mitrale
  6. P pulmonale is seen in amplified P-wave in lead II and V1.
  7. If P-wave not clearly visible, look for inverted P-waves, that is anywhere between the J point and the terminal part of the T-wave.
  8. Second-degree AV-block Mobitz type I (Wenckebach block) is seen if there is repeated cycles of gradually increasing PR interval until an atrial impulse (P-wave) is blocked in the atrioventricular node and the QRS complex does not appear.
  9. Second-degree AV-block Mobitz type II is noted if there is intermittently blocked atrial impulses (no QRS seen after P) but with constant PR interval.
  10. Third-degree AV-block is noted when all atrial impulses (P-waves) are blocked by the atrioventricular node.
  11. Almost normal QRS-T complexes but totally absent or obscured P waves as seen in A-V Nodal Paroxysmal Tachycardia

QRS Complex[edit | edit source]

Assess QRS complex by checking:

  • QRS duration should normally be between 0.06-0.10 second
  • There must be at least one limb lead with R-wave amplitude >5 mm and at least one precordial lead with R-wave amplitude >10 mm; otherwise there is low voltage.
  • High voltage exists if the amplitudes are too high, i.e if the following condition is satisfied: S-waveV1 or V2 + R-waveV5 >35mm.
  • Look for pathological Q-waves. Pathological Q-waves are ≥0.03 second and/or amplitude ≥25% of R-wave amplitude in same lead, in at least 2 anatomically contiguous leads.
  • If the R-wave progression in the V1–V6 leads normal
  • If the electrical axis normal; Electrical axis assessed in limb leads should be between –30° to 90°.

Possible findings are:

  1. Short QRS duration is of no clinical relevance.
  2. QRS duration ≥0.12 second depicts left bundle branch block, right bundle branch block, nonspecific intraventricular conduction disturbance, hyperkalemia, use of class I antiarrhythmic drugs, use of Tricyclic antidepressants. Ventricular ventricular extrasystoles (premature complexes), artificial pacemaker use which stimulates in the ventricle, aberrant conduction or Pre-excitation.
  3. High voltage noted in any leads could be due to cardiac muscle hypertrophy, left bundle branch block (leads V5, V6, aVL), right bundle branch block (V1–V3). Normal variant is noted in younger, well-trained and slender individuals.
  4. Low voltage is noted in cardiac myopathies, previous myocardial artery infarctions resulting reduced cardiac muscle mass, precardial effusion, pleural effusion, pulmonary emphysema

QT Interval and U-wave[edit | edit source]

Asses QT interval and U-wave by checking:

  • QT duration men should be  ≤0.45 second
  • QT duration women should be  ≤0.46 second
  • Prolonged QT duration
  • Shortened QT duration (≤0.32 second)
  • The U-wave is seen most times in well-trained individuals, and during low heart rate. It is more pronounced in V3 and V4 and three times less the amplitude of T-wave.

Possible findings are:

  1. Acquired QT prolongation can be seen in some patient using anti arrhythmic drugs, psychiatric medications and antibiotics; patients that have these conditions: hypothermia, hypothyroidism, hypokalemia, hypocalcemia, hypomagnesemia, cerebrovascular injury, myocardial ischemia, cardiomyopathy and bradycardia;
  2. Congenital QT prolongation seen in some form of genetic disease.
  3. Short QT syndrome is rare but usually as a result of hyperkalcemia and/or digoxin treatment, that could lead to malignant ventricular arrhythmia.
  4. Negative U-wave is seen more with heart disease.

T-wave[edit | edit source]

Assess T-wave by checking:

  • Positive on almost all limb leads and consistent with QRS complex.
  • T-wave progression should be consistent in chest leads.
  • In limb leads the amplitude is highest in lead II, and in the chest leads the amplitude is highest in V2–V3.

Possible findings are:

  1. An single T-wave inversion is accepted if seen in either in lead V1 and lead III.
  2. In some instances persistent juvenile T-wave pattern from childhood in lead V1–V3 and V4.
  3. Global idiopathic T-wave inversion (V1–V6) but it is rare.
  4. T-wave inversion without simultaneous ST-segment deviation may be due to post-ischemia. One type of post-ischemic T-wave inversion is especially acute, namely Wellen’s syndrome (characterized by deep T-wave inversions in V1–V6 in patient with recent episodes of chest pain), Cerebrovascular insult (bleeding), Pulmonary embolism; T-waves become inverted in perimyocarditis and Cardiomyopathy.
  5. T-wave inversion with simultaneous ST-segment deviation depicts acute myocardial ischaemia that could be as a result exercise in case of coronary insufficiency.

Information provided by the ECG may also assist the physical therapist (PT) in the assessment of a patient's readiness for and response to physical activity. Physiotherapists in many different practice environments have access to information afforded by the ECG. It is therefore crucial that all Physiotherapists have a basic understanding of the uses and limitations of the ECG in their practices.

Determination Regular and Irregular Heart Rate[10][edit | edit source]

There are several methods of estimating heart rate from a printed ECG strip

  1. Sinus rhythm (normal heart): Find an R-wave located on or near a heavy vertical line. Proceeding to the left of that R wave, for each subsequent heavy vertical line, assigned the following numbers: 300 for the first heavy line encountered, 150 for the next followed by 100, 75, 60, 50, and 42. stop at the first heavy vertical line following the next R wave that is encountered. The heart rate may be estimated as falling between the two most recently assigned values.
  2. Irregular rhythm: with the R-waves appearing at varying intervals, a mark may be placed at 1 or 3 seconds intervals, enabling quicker appraisal of heart rate based on a 6-second strip. the procedure is as follows. Obtain a printed strip of sufficient length, covering more than 6 seconds, if 1-second marks are not present, it may be convenient to place a mark at every fifth large block. Next, select a 1- second mark or a heavy vertical line on the left side of the strip, and proceed to the right for a length corresponding to 6 seconds. if 1-second marks are counted, do not count the starting mark or there will be only a 5-second strip. Count the number of R-waves within the 6-seconds recording and multiply by 10.

Determination of some cardiac conditions on ECG[11]


check out for the regularity, rate, P-wave, PR interval and QRS complex on the ECG strip

Ventricular Fibrillation (VF)[edit | edit source]

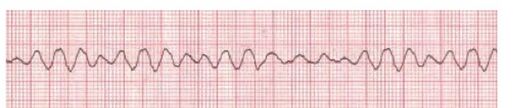

Disorganised ECG VF

In VF there is no regularity shape of the QRS complex because all electrical activity is disorganized.

The rate appears rapid, but the disorganized electrical activity prevents the heart from pumping.

P wave: There are no P waves present.

PR interval: There are no PR intervals present.

QRS complex : The ventricle complex varies

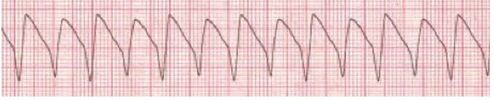

Ventricilular tachycardia.jpg

Ventricular Tachycardia[edit | edit source]

Regularity: R-R intervals are usual, but not always regular

Rate: The atrial rate cannot be determined, Ventricular rate is usually between 150 and 250 beats per minute

P Wave: QRS complexes are not preceded by P waves. There are occasionally P waves in the strip, but they are not associated with the ventricular rhythm.

PR interval: it is not measured since this is a ventricular rhythm.

QRS complex: it measures more than 0.12 seconds. The QRS will usually be wide and bizarre. It is usually difficult to see a separation between the QRS complex and the T Wave.

Screenshot 1.jpg

Torsades De Pointes (Irregular Wide Complex Tachycardia)[edit | edit source]

There is no regularity

The atrial rate cannot be determined. Ventricular rate is usually between 150 and 250 beats per minute.

P Wave: there are no P waves present.

PR interval: there are no PR interval present.

QRS complex: the ventricle complex varies.

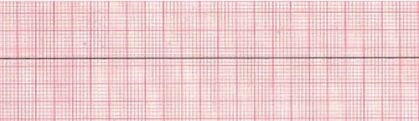

Pulseless Electrical Activity(PEA) and Asystole[edit | edit source]

Regularity: the rhythm will be a nearly flat line.

Rate: there is no rate.

P wave: there is no P waves present

PR interval: PR interval is unable to be measure due to no P waves being present.

QRS Complex: there are no QRS complexes present.

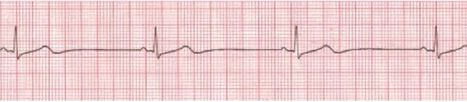

Sinus brady.jpg

Sinus Bradycardia[edit | edit source]

Regularity: R-R intervals are regular, overall rhythm is regular.

Rate: the rate is less than 60bpm, but usually more than 40bpm

P wave: there is one P wave in front of every QRS. The P waves appear uniform

PR interval: measures between 0.12 and 0.20 seconds in duration. PR interval is consistent.

QRS complex: measures less than 0.12 seconds.

Sinus tachy.jpg

Sinus Tachycardia[edit | edit source]

Regularity: R-R intervals are regular, overall rhythm is regular.

Rate the rate is over 100bpm but usually less than 170bpm

P wave: there is one P wave in front of every QRS. The P wave appear uniform.

PR interval: measures between 0.12-0.20 seconds in duration. PR interval is consistent.

QRS complex: Measures less than 0.12 seconds.

Atrial flutter.jpg

Atrial Flutter[edit | edit source]

Regularity: The atrial rate is regular.   The ventricular rate will usually be regular, but only if the AV node conducts the impulses in a consistent manner.   Otherwise, the ventricular rate will be irregular.

Rate: The atrial rate is normally between 250 to 350.  Ventricular rate depends on conduction through the AV node to the ventricles.

P wave: The P waves will be well defined and have a “sawtooth” pattern to them.

PR interval: Due to the unusual configuration of P waves, the interval is not measured with atrial flutter

QRS complex: QRS measures less than 0.12 seconds

References[edit | edit source]

  1. 1.0 1.1 The ECG leads: electrodes, limb leads, chest (precordial) leads, 12-Lead ECG (EKG).https://ecgwaves.com/ekg-ecg-leads-electrodes-systems-limb-chest-precordial/ accessed on 14 Nov, 2018
  2. 2.0 2.1 2.2 2.3 Heart disease and stress.https://www.webmd.com/heart-disease/guide/stress-test#2 accessed on 14 Nov, 2018
  3. El-Sherif N, Turitto G. Electrolyte disorders and arrhythmogenesis. Cardiol J. 2011;18(3):233-45.
  4. Saleh A, Shabana A, El Amrousy D, Zoair A. Predictive value of P-wave and QT interval dispersion in children with congenital heart disease and pulmonary arterial hypertension for the occurrence of arrhythmias. J Saudi Heart Assoc. 2019;31(2):57-63.
  5. Alborzi Z, Zangouri V, Paydar S, Ghahramani Z, Shafa M, Ziaeian B, et al. Diagnosing Myocardial Contusion after Blunt Chest Trauma. J Tehran Heart Cent. 2016;11(2):49-54.
  6. Drezner JA, Sharma S, Baggish A, Papadakis M, Wilson MG, Prutkin JM, et al. International criteria for electrocardiographic interpretation in athletes: Consensus statement. Br J Sports Med. 2017;51(9):704-731.
  7. Khan GM. A new electrode placement method for obtaining 12-lead ECGs. Open Heart. 2015; 2(1): e000226. doi: 10.1136/openhrt-2014-000226
  8. Kenny WL,Wilmore JH, Costill DL. Physiology of Sport and Exercise, 5th ed. Human Kinetics, 2011. 146-148.
  9. Guyton C, Hall E. Test book of medical physiology. Philadelphia:Elsevier Inc. 2006; pg.131-156
  10. Donna F. Elizabeth D. principles and practice of Cardiopulmonary physical therapy third edition. mosby-Year Book, Inc. 1996
  11. 1.      Karl D. Advanced Cardiac life support 2015-2020 guidelines and standards: Satori Continuum Sahara Ave Suite 1507, Las vegas, NV 89104.
