Basic Foot and Ankle Anatomy - Muscles and Fascia

Original Editor - Ewa Jaraczewska


Top Contributors - Ewa Jaraczewska, Wanda van Niekerk and Tarina van der Stockt

Description[edit | edit source]

Muscles are responsible for movement and the primary source of ankle and foot injuries is a movement performed excessively, repetitively, and for a long duration that exceeds tissue capabilities.[1] Weight-bearing is a primary function of the foot and ankle and together, these two structures often have different responsibilities in order for this task to be completed. What is expected from these structures is a quick transformation from being flexible to adapt to the ground to become very rigid to propel the body forward. Other functions include maintaining balance, upright posture and recognising body position in space.[1]

Lower Leg Muscle Compartments[edit | edit source]

The lower leg muscles are divided into four compartments: the superficial posterior compartment, the deep posterior compartment, the lateral compartment, and the anterior compartment.

Posterior Compartments[edit | edit source]

The primary plantar flexors of the ankle are located in this compartment. Because of its insertion medial to the midline of the foot, they also function as supinators.

Primary responsibilities include:

  • transforming the foot into a rigid lever
  • assisting with push-off during the gait cycle
  • controlling tibia progression over the foot during initial contact through the push-off gait cycle
  • controlling foot pronation during initial contact through the push-off gait cycle

Superficial Posterior Compartment[edit | edit source]

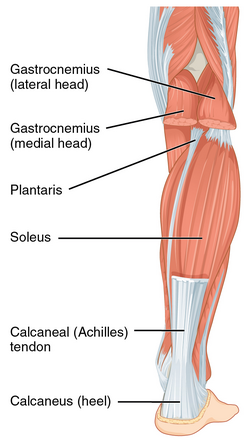

Lower Leg Muscles-Superficial Posterior Compartment

Soleus

  • Origin: Soleal line, medial border of tibia, head of the fibula, posterior border of the fibula
  • Insertion: Posterior surface of the calcaneus (via calcaneal tendon)
  • Nerve supply: Tibial nerve (S1, S2)
  • Vascular supply: Posterior tibial artery and vein

Gastrocnemius

  • Origin: Two heads, lateral: Posterolateral aspect of lateral condyle of the femur, medial: Posterior surface of the medial femoral condyle, the popliteal surface of the femoral shaft
  • Insertion: Posterior surface of the calcaneus via the calcaneal tendon
  • Nerve supply: Tibial nerve (S1, S2)
  • Vascular supply: Medial sural artery, a branch of the popliteal artery

Plantaris

  • Origin: Lateral supracondylar line of the femur, oblique popliteal ligament of the knee
  • Insertion: Posterior surface of the calcaneus (via calcaneal tendon)
  • Nerve supply: Tibial nerve (S1, S2)
  • Vascular supply: lateral sural and popliteal arteries and superior lateral genicular artery

Deep Posterior Compartment[edit | edit source]

Flexor digitorum longus

  • Origin: Posterior surface of the tibia (inferior to soleal line)
  • Insertion: Bases of distal phalanges of digits 2-5
  • Nerve supply: Tibial nerve (L5, S1, S2)
  • Vascular supply: Posterior tibial artery

Tibialis posterior

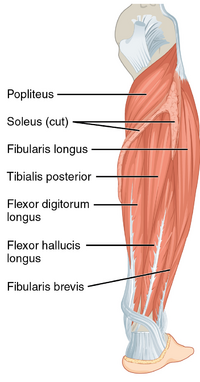

Lower Leg Muscles-Posterior and Lateral Compartments
  • Origin: Posterior surface of the tibia, posterior surface of fibula and interosseous membrane
  • Insertion: Tuberosity of navicular bone, all cuneiform bones, cuboid bone, bases of metatarsal bones 2-4
  • Nerve supply: Tibial nerve (L4, L5)
  • Vascular supply: Branches of the posterior tibial artery

Flexor hallucis longus

  • Origin: Distal 2/3 of the posterior surface of fibula, interosseous membrane, the posterior intermuscular septum of the leg, fascia of tibialis posterior muscle
  • Insertion: Base of distal phalanx of the great toe
  • Nerve supply: Tibial nerve (S2, S3)
  • Vascular supply: Posterior tibial artery, fibular artery

Popliteus

  • Origin: Lateral condyle of femur, posterior horn of lateral meniscus of the knee joint
  • Insertion: Posterior surface of the proximal tibia
  • Nerve supply: Tibial nerve (L4-S1)
  • Vascular supply: Inferior medial and lateral genicular arteries (popliteal artery), posterior tibial recurrent artery, posterior tibial artery, nutrient artery of the tibia

Lateral Compartment[edit | edit source]

Peroneus (Fibularis) Longus

  • Origin: Head and superior 2/3 of the lateral surface of the fibula
  • Insertion: base of the 1st metatarsal and medial cuneiform
  • Nerve supply: Superficial fibular nerve (L5 - S1)
  • Vascular supply: Fibular artery
  • Function:
    • Ankle eversion and week plantarflexion
    • Muscular control of the forefoot position

Peroneus (Fibularis) Brevis

  • Origin: Inferior 2/3 of the lateral surface of the fibula
  • Insertion: base of the 5th metatarsal
  • Nerve supply: superficial fibular nerve (L5 - S1)
  • Vascular supply: Anterior tibial artery
  • Function:
    • Ankle eversion and weak plantarflexion
    • Stabilises the lateral column of the foot

Anterior Compartment[edit | edit source]

Ankle dorsiflexion is performed by all the muscles within the anterior compartment. In addition

  • tibialis anterior and extensor hallucis longus invert the foot during dorsiflexion
  • extensor digitorum longus everts the foot during dorsiflexion
  • eccentric control of foot lowering during heel strike
  • concentric control of toes clearance during swing phase

Tibialis Anterior

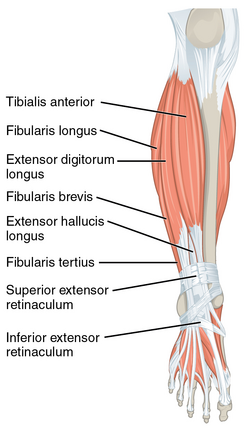

  • Lower Leg Muscles- Anterior Compartment
    Origin: Posterior surface of the tibia, posterior surface of fibula and interosseous membrane
  • Insertion: Tuberosity of navicular bone, all cuneiform bones, cuboid bone, bases of metatarsal bones 2-4
  • Nerve supply: Tibial nerve (L4, L5)
  • Vascular supply: Branches of the posterior tibial artery

Extensor Digitorum Longus

  • Origin: Proximal 1/2 of the medial surface of fibula, lateral tibial condyle, interosseous membrane
  • Insertion: Distal and middle phalanges of digits 2-5
  • Nerve supply: Deep fibular nerve (L5, S1)
  • Vascular supply: Anterior tibial, fibular, anterior lateral malleolar, lateral tarsal, metatarsal, plantar, and digital arteries

Extensor Hallucis Longus

  • Origin: Middle 1/3 of the medial surface of fibula, interosseous membrane
  • Insertion: Base of distal phalanx of the great toe
  • Nerve supply: Deep fibular nerve (L5, S1)
  • Vascular supply: Anterior tibial artery

Peroneus (Fibularis) Tertius

  • Origin: Distal 1/3 of the medial surface of fibula, interosseous membrane (anterior surface), anterior intermuscular septum
  • Insertion: Dorsal surface of base of the 5th metatarsal bone
  • Nerve supply: Deep fibular nerve (L5, S1)
  • Vascular supply: Anterior lateral malleolar artery, lateral tarsal artery, metatarsal arteries, lateral plantar artery, digital arteries, arcuate artery, fourth dorsal metatarsal artery

Foot Muscles[edit | edit source]

Stabilisation of the arches, metatarsophalangeal (MTP) and interphalangeal (IP) joints are the main functions of the intrinsic muscles of the foot. In addition these muscles :

Foot Muscles
  • assist with tension regulation and counteract extrinsic muscle force production
  • provide critical stabilisation of the foot allowing its transition from rigid to flexible during the gait cycle
  • quadratus plantae helps with toe flexion in the sagittal plane
  • lumbricals extend the interphalangeal joint
  • interosseus assist with the MTP joint flexion, IP joint extension, toe abduction and adduction

Quadratus Plantae

  • Origin: Calcaneus
  • Insertion: tendon of the flexor digitorum longus
  • Nerve supply: Lateral plantar nerve (S1-S3)
  • Vascular supply: branch of the posterior tibial artery

Lumbricals

  • Origin: Tendon of the flexor digitorum longus
  • Insertion: Medial proximal phalanx and dorsal expansion of the extensor digitorum longus
  • Nerve supply: Lumbrical 1: Medial plantar nerve (S2, S3); Lumbricals 2-4: Lateral plantar nerve (S2-S3)
  • Vascular supply: Lateral plantar artery, plantar metatarsal arteries, dorsal metatarsal arteries, dorsal digital arteries

Interossei

  • Origin: Shafts of the metatarsals
  • Insertion: Base of the proximal phalanx
  • Nerve supply: Lateral plantar nerve (S2-S3)
  • Vascular supply: Lateral plantar artery

Fascia[edit | edit source]

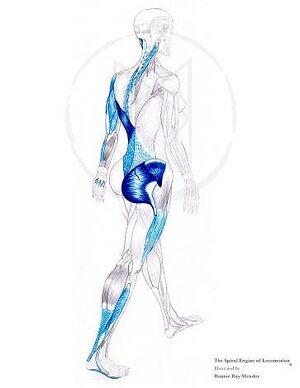

Myofascial chains

Fascia connects mechanically with the underlying muscles. The muscles' insertion into the myofascia supports the clinical observation that the fascia and muscles influence each other. The connection between the extensor hallucis longus muscle, the anterior crural compartment and the muscles located in the peroneal compartment that connects with the lateral collateral ligament is an example of when myofascial connections have a direct and indirect effect on muscle function and proprioception.[2]

The myofascial chain is a concept that explains how the mechanical forces transfer between the muscle of one limb and the muscles in series. The available studies of the muscle-fascia lines indicate, for example, a force transmission occurring across the posterior myofascial chain (PL) that includes the plantar aponeurosis, gastrocnemius muscle and fascia, hamstring muscles and fasciae, sacrotuberous ligament, and lumbar fascia and erector spinae muscle.[2]

Another function of the fascia is blood flow regulation. In the lower leg, proper vascular supply partially depends on the pressure created by the fascia compartments. Fascial restrictions can cause blood vessels entrapment that leads to oedema, cramping, and claudication.[3]

Lower Leg Fascia[edit | edit source]

The Lateral Line of fascia (LL) connects the lateral and the medial side of the foot with the lateral side of the body.[4] It begins on the medial side of the foot with the insertion of the peroneus longus, travels under the foot towards its lateral aspect and is joined by the peroneus brevis tendon. It then moves up towards the lateral malleolus, where peroneus longus and peroneus brevis are the only muscles within the lateral compartment of the lower leg. The complete LL myofascial tracks are as follow:

Splenius capitis/sternocleidomastoid→external/internal intercostals→lateral abdominal obliques→Gluteus maximus/Tensor Fasciae Latae/Iliotibial track→Anterior ligament of head of fibula→Peroneal(Fibularis) muscles/lateral crural compartment.[4]

[5]

Tensor Fascia Latae is a fascial continuation of the LL that divides the lower leg muscles into four compartments.[6] Their primary roles are:

  • assisting the muscle with transferring the power from the muscle to the bone
  • creating spatial restriction for oedema
  • effecting nerve and blood vessel function within the compartment in case of oedema.

Foot Fascia[edit | edit source]

Foot Fascia

The fascia of the foot can be defined by the superficial and deep fascia, each having different strengths and thicknesses. Its primary function is to support, divide and attach muscles.[7] In addition it:

  • optimises the static and dynamic function of the foot
  • influences the shape of the muscles,
  • optimises movement and function of the regional nerves and blood vessels
  • supports foot arches. Partial and total plantar fascia release may decrease the arch height [8]
  • is a functional windlass
  • provides the shock-absorbing characteristics to allow for pedal movement[7].

The fascia specifies five anatomic compartments of the foot: medial, central, lateral, dorsal, and interosseous compartments. The plantar fascia appears to be the major contributor to static foot posture.

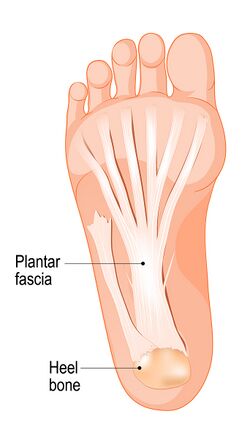

Plantar fascia

  • Origin: calcaneus
  • Insertion: phalanges
  • Nerve supply: lateral and medial plantar nerves
  • Vascular supply: branch of the dorsalis pedis artery and the posterior tibial artery

    The lateral band of the plantar fascia belongs to the Superficial Back Line. However, the fascia Lateral Line through the metatarsal complex and its connections with the fibula provides support for the lateral longitudinal arch.[4]

Windlass Mechanism[edit | edit source]

The Windlass mechanism (tightening of a cable) describes plantar fascia's role in weight-bearing activities by providing dynamic support to the foot. You can read more about this mechanism and how to test it here.

Arches[edit | edit source]

There is one continuous arch in the foot that runs anterior to posterior and medial to lateral, but the literature usually describes three arches of the foot: the medial, lateral and transverse arch.[1] The medial and lateral arches constitute the longitudinal arch. All arches act as rigid and flexible structures needed for normal walking.[9] In addition:

  • provides a stable base for standing posture
  • lateral arch plays role in providing support during frontal plane body weight shift with locomotion
  • the height of the medial arch defines pes planes or pes cavus
  • the transverse arch is necessary for medial and lateral arches stability.

The arches are formed by the following bones:

  • The medial arch:
    • calcaneus, talus, navicular, three cuneiforms, first three metatarsals
  • The lateral arch:
    • calcaneus, cuboid, lateral two metatarsals
  • The transverse arch:
    • three cuneiforms, cuboid, bases of five metatarsals.[9]

All arches receive ligamentous support via plantar ligaments and plantar aponeurosis.

Clinical Relevance[edit | edit source]

  1. The area posterior to the medial malleolus tends to get injured frequently causing tendon injury of the posterior tibialis, flexor hallucis longus or flexor digitorum and tibial nerve compression.[1]
  2. The transtarsal joint achieves its stability through the bony shape, ligament tightness and extrinsic muscles crossing the foot as there are no intrinsic muscles attaching to the talus or calcaneus and inserting to cuboid or navicular bones. This may be the cause of this joint's frequent hypermobility.[1]
  3. Hammer and claw toe deformities can be prevented with strong action of the interossei and lumbricals.
  4. Increased tissue stiffness in gastrocnemius and hamstrings muscles can lead to plantar fasciitis, and calf muscle stretching can be the solution for the problem.[2]
  5. Acute or chronic tears in the plantar fascia can be diagnosed by palpation of the painful lump on the sole of the foot.[7]
