Avascular necrosis of the femoral head

Original Editor Anouk Toye

Top Contributors -

Clinically relevant anatomy[edit | edit source]

see: Hip Anatomy

Mechanism of injury / pathological process[edit | edit source]

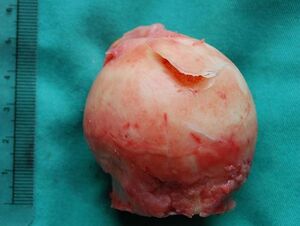

Head of femur avascular necrosis.jpg

Avascular necrosis of the femoral head, also known as osteonecrosis, although this term isn’t used that much anymore, is characterized by variable areas of dead trabecular bone and bone marrow, extending to and including the subchondral plate. Most of the time it is the anterolateral region of the femoral head that is affected but no area is necessarily spared. This disease is often seen in patients in the third, fourth, and fifth decades. The older the patients, the less the chance of revascularization. We can also state that most radiographically evident lesions progress until the femoral head collapses [1].

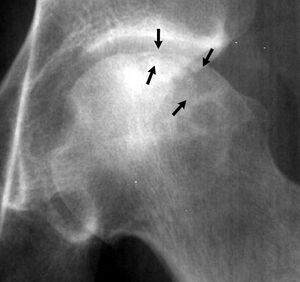

The earliest sign of this mechanical failure is the crescent sign, which represents the separation of the subchondral plate from the underlying necrotic cancellous bone. After the femoral head has collapsed, most patients have clinical progression resulting in the need for a total hip replacement [1].
The pathophysiology of avascular necrosis of the femoral head has not been completely accounted for. In some patients there has clearly been a direct cause (trauma, radiation,..)[2], while in others the pathophysiology is still uncertain. Avascular necrosis of the femoral head has often been described as a multifactorial disease. It is associated in some cases with a genetic predilection[3] as well as an exposure to certain risk factors. The most common risk factors are corticosteroid intake[4], alcohol use, smoking, and various chronic diseases [5][6]. Patients with human immunodeficiency virus are also at higher risk for the development of avascular necrosis of the femoral head[6]. It has to be noted too, that osteonecrosis is a (rare) complication of pregnancy[6]. Many of these cases are initially misdiagnosed as transient osteoporosis of the hip.


Diagnostic procedures[edit | edit source]

It is very important that avascular necrosis is diagnosed early in the disease process since the success of the treatment is related to the stage at which the treatment starts.
There are several possible diagnostic modalities:

History and Physical Examination[edit | edit source]

Patients are often seen because of pain in the groin, but symptoms can also radiate to the knee or buttocks. On examination, there is usually a painful range of motion, especially on forced internal rotation[1]. It is also important to track any risk factors before the start of the examination. Investigators need to be wary of avascular necrosis in any patient who has pain in the hip, negative radiographic findings, and any of the risk factors, described above. The other hip must also be evaluated.

Radiographic Evaluation[edit | edit source]

When standard anteroposterior and frog-leg lateral radiographs show obvious avascular necrosis of the femoral head, it is not necessary to perform an MRI.

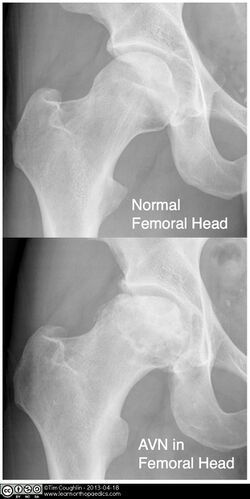

                                              Hip X ray avascular necrosis.jpg

Magnetic Resonance Imaging[edit | edit source]

This is the best method for cases that are radiographically occult or not obvious on radiographs. It has been found to be 99%sensitive and 98% specific for this disease[6].

                                    Avacular necrosis MRI.jpg

Management / interventions[edit | edit source]

The management of avascular necrosis of the femoral head ranges from conservative (non-operative) to invasive (operative). Factors such as patient's age, pain/discomfort threshold, severity of necrosis, intact or collapse of the articular surface, and comorbidities.[7]

Conservative managements are physical therapy, restricted weight-bearing, alcohol cessation, discontinuation of steroid therapy, pain control medication, and targeted pharmacologic therapy, among others.

1. Non-operative Treatment[edit | edit source]

Observation or Protected Weight-Bearing[edit | edit source]

This method is believed to slow the progression of avascular necrosis so that the femoral head wouldn’t collapse. However, more than 80% of affected hips do progress to femoral head collapse and arthritis by four years after the diagnosis[6]. There are various methods to reduce weight-bearing. The concept of this method is to reduce the forces on the hip joint. This (interventional) treatment has various modalities, such as a cane, crutch, walker, or two crutches.
Most studies have shown though that non-operative treatment yields poor results. The only condition for which protected weight-bearing might be effective is a type-A lesion[1].

Pharmacological Treatment[edit | edit source]

Vasodilators, e.g. iloprost (PGI2), are used to reduce intraosseous pressure thus, increased blood flow.[8]

Statins act to decrease the differentiation of stem cells into fat cells, by reducing intraosseous pressure for better perfusion.[9]

Anticoagulants, e.g. enoxaparin are used to prevent the progression of osteonecrosis due to hypercoagulability and thromboembolic events.[10]

Bisphosphonates, such as alendronate, prevent osteoclasts action thus reducing bone resorption.[11][12]

Pain medication such as NSAIDs and Opioid care for pain modulation. Despite intra-articular steroid injections been fast-acting pain relieving agents, they are normally short-termed and their use can cause significant deterioration of avascular necrosis.[12]

Physical therapy[edit | edit source]

See avascular necrosis page

Electrical stimulation has been shown experimentally to enhance osteogenesis and neovascularization as well as to alter osseous turnover.[1]
Three different methods can be described:

  • Non-invasive pulsed electromagnetic-field stimulation
  • Direct-current stimulation of the necrotic area through the insertion of an electrode at the time of a core decompression
  • Non-invasive direct-current stimulation by capacitive coupling after a core decompression

Electrical stimulation remains experimental for the treatment of avascular necrosis of the femoral head. Additional study is needed to define the optimum dosage, application, and timing of treatment. [1]

2. Operative Treatment[edit | edit source]

There are several possible ways to treat avascular necrosis of the hip: core decompression, Core decompression with electrical stimulation, Osteotomy, Non-vascularized bone-grafting, and Vascularized grafts. The joint preservation interventions are core decompression, osteotomy, bone grafts, and use of cellular therapies; while reconstructive interventions are arthroplasty.

Recommendations for treatment[edit | edit source]

Table 1.jpg

Table 2.jpg

Table 3.jpg

All tables come from: MA Mont, LC Jones and DS Hungerford, Non-traumatic avascular necrosis of the femoral head: ten years later, J Bone Joint Surg Am. 2006;88:1117-1132 [6]

References[edit | edit source]

  1. 1.0 1.1 1.2 1.3 1.4 1.5 Mont MA, Hungerford DS. Non-traumatic avascular necrosis of the femoral head. J Bone Joint Surg Am. 1995; 77:459-474
  2. Baig SA, Baig MN. Osteonecrosis of the Femoral Head: Etiology, Investigations, and Management. Cureus. 2018;10(8):e3171.
  3. Adesina O, Brunson A, Keegan THM, Wun T. Osteonecrosis of the femoral head in sickle cell disease: prevalence, comorbidities, and surgical outcomes in California. Blood Adv. 2017;1(16):1287-1295.
  4. Xie XH, Wang XL, Yang HL, Zhao DW, Qin L. Steroid-associated osteonecrosis: Epidemiology, pathophysiology, animal model, prevention, and potential treatments (an overview). J Orthop Translat. 2015 Apr;3(2):58-70.
  5. Jaffré C, Rochefort GY. Alcohol-induced osteonecrosis--dose and duration effects. Int J Exp Pathol. 2012;93(1):78-9
  6. 6.0 6.1 6.2 6.3 6.4 6.5 Mont MA, Jones LC, Hungerford DS. Non-traumatic avascular necrosis of the femoral head: ten years later. J Bone Joint Surg Am. 2006;88:1117-1132
  7. Hsu H, Nallamothu SV. StatPearls. StatPearls Publishing; Treasure Island (FL), 2020. Hip Osteonecrosis. Available from:https://www.ncbi.nlm.nih.gov/books/NBK499954/ (Accessed 25 July 2020)
  8. Claben T, Becker A, Landgraeber S, Haversath M, Li X, Zilkens C, et al. Long-term Clinical Results after Iloprost Treatment for Bone Marrow Edema and Avascular Necrosis. Orthop Rev (Pavia). 2016;8(1):6150.
  9. Pritchett JW. Statin therapy decreases the risk of osteonecrosis in patients receiving steroids. Clin. Orthop. Relat. Res. 2001;(386):173-8.
  10. Lai KA, Shen WJ, Yang CY, Shao CJ, Hsu JT, Lin RM. The use of alendronate to prevent early collapse of the femoral head in patients with nontraumatic osteonecrosis. A randomized clinical study. J Bone Joint Surg Am. 2005;87(10):2155-9.
  11. Agarwala S, Shah S, Joshi VR. The use of alendronate in the treatment of avascular necrosis of the femoral head: follow-up to eight years. J Bone Joint Surg Br. 2009;91(8):1013-8.
  12. 12.0 12.1 Immonen I, Friberg K, Grönhagen-Riska C, von Willebrand E, Fyhrquist F. Angiotensin-converting enzyme in sarcoid and chalazion granulomas of the conjunctiva. Acta Ophthalmol (Copenh). 1986;64(5):519-21.
