Tetralogy of Fallot

Definition/Description[edit | edit source]

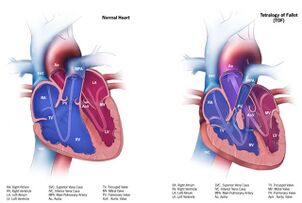

Tetralogy of Fallot (TOF) is a congenital heart defect which presents with 4 conditions: a ventricular septal defect (a hole between the right and left ventricles), a narrowing of the pulmonary outflow tract (the vessel between the heart and lungs), an overriding aorta (the aorta is shifted to the right instead of being connected strictly to the left side), and hypertrophy of the right ventricle. Each of these components can vary in severity. These defects cause there to be lower oxygen levels in the blood, leading to cyanosis. It is the most common cause of cyanotic cardiac disease in neonates.[1]

Prevalence[edit | edit source]

TOF is categorized as a rare heart disease affecting 5 out of every 10,000 babies.[2]  While it is rare, it is the most common form of congenital cyanotic heart disease.[3]  TOF is responsible for approximately 10% of all cases of congenital heart disease. [4]


Characteristics/Clinical Presentation[edit | edit source]

Most babies present with mild to moderate cyanosis but do not typically present with signs of respiratory distress or heart failure. Symptoms of TOF include:[5][1]

• Cyanosis, which gets worse when the baby is upset
• Clubbing of fingers
• Fainting
• Heart murmurs
• Poor appetite and/or slow growth
• Tires easily
• Has trouble breathing when eating or crying
• Squatting episodes during cyanosis


Patients with TOF may experience a hypercyanotic spell. They are not common but they can occur in as young as 2 months of age. These spells are characterized by a sudden decrease in oxygen due to acute, almost complete obstruction of subpulmonary outflow. These spells are a medical emergency and can result in death if not treated.
If the child is having a hypercyanotic spell, put his/her knees to chest in order to try to increase venous return to the right side of the heart. Take the child to the hospital or call emergency medical contact for prompt care.[7]

Infant with cyanosis of the lips


Associated Co-morbidities[edit | edit source]

Patients with TOF have a higher incidence of other major congenital defects.[3] Infants with Down Syndrome have a higher incidence of TOF, as do infants with DiGeorge syndrome and branchial arch abnormalities. [4] Many children who have undergone corrective surgery and their families are not educated on the importance of physical activity and are not given guidelines for physical activity end up living a sedentary lifestyle. The sedentary lifestyle can lead to obesity and all the associated co-morbidities, such as diabetes and development of other cardiovascular disease. [5]

Child with down syndrome

Medications[edit | edit source]

Surgery is the first line of defense in children with TOF. Afterward, they may or may not be on various medications to help control arrhythmias (if they have one) or to help their heartbeat more forcefully. Children after TOF surgery may be required to take antibiotics when going to the dentist to get their teeth cleaned, or if they are around someone that has an infection as an act of prophylactic care.[9]

Diagnostic Tests/Lab Tests/Lab Values[2][edit | edit source]

Doctors use 3 methods to diagnosis TOF:

  • Baby’s signs and symptoms
  • Physical examination
  • Results from diagnostic tests.

For signs and symptoms see the section above.

During the physical examination, the doctor will look for these signs and symptoms and listen to the baby’s heart. A heart murmur is also commonly found with TOF.

The diagnostic tests performed include echocardiography, EKG, chest x-ray, pulse oximetry, and cardiac catheterization.

  • Echocardiography – uses ultrasound waves to create a moving picture of the heart. This allows the doctor to see any problems with the way the heart is working and clearly shows the four defects and how the heart is responding to them.
  • EKG (Electrocardiogram) – records the heart's electrical activity. This test will determine if the right ventricle is enlarged.
  • Chest X-Ray – creates a picture of the chest and the structures of the chest. This will show if the heart is enlarged or if there is any fluid build-up in the lungs, a sign of CHF.
  • Pulse Oximetry – gives an idea of how much oxygen is in the blood at any given time. [10]
  • Cardiac Catheterization – used dye injected into the bloodstream to determine if blood is mixing between the right and left side of the heart. MDs also use cardiac catheterization to measure pressure in the chambers of the heart.

Etiology/Causes[edit | edit source]

The cause of TOF is unknown, but there are some risk factors[7][11]:

  • Chromosomal abnormalities
  • Gestational diabetes
  • Untreated phenylketonuria
  • Excessive alcohol consumption while pregnant
  • Malnutrition while pregnant
  • Mother over 40 years old
  • Rubella or another virus during pregnancy

Systemic Involvement[edit | edit source]

Tetralogy of Fallot doesn’t directly affect any other systems, but it decreases the amount of oxygen circulating in the bloodstream. This decrease in oxygen affects the entire body, and is most noticeable in the integumentary system, bluing of the nails and lips, the musculoskeletal system, decreased endurance and tiring with activity, and the CNS, fainting or passing out.[2][3][4][12]

Medical Management[edit | edit source]

Surgery is the only corrective measure for children born with TOF. There are two different surgical routes the infant may undergo: early/temporary correction, or complete correction. First, though, the neonate may be injected with prostaglandin in order to preserve ductal patency and provide a stable blood source to the lungs.[7] Early or temporary correction is done to increase blood flow to the lungs for a period of time until the child is big enough and ready for complete corrective surgery. In this surgery, surgeons place a shunt between the systemic and pulmonary artery in order for the subclavian and pulmonary artery on the same side to communicate.[5]

In a complete repair, surgeons close the hole between the ventricles with a patch, re-channel the aorta to connect with the left ventricle instead of the right and widen the narrowed pulmonary tract. This surgery is usually performed somewhere between 4-6 months but is beginning to be introduced in as young as 3 months.[11] A complete repair provides relief of the volume and pressure overload on the right ventricle, minimizing cyanosis (and thus reducing secondary damage to organs), decreasing right ventricular hypertrophy, and reducing the incidence of arrhythmias. Patients who have successful surgery usually do not need to have another heart surgery in their first year. Longer follow-up is usually necessary with children undergoing a complete correction. There is however a risk of surgery using the patch between ventricles at such a young age. The patch can create a state of chronic pulmonary regurgitation, which increases morbidity in young adults. This can lead to exercise intolerance and ventricular arrhythmias.[7] The mortality rate of this surgery is less than 3%, and more children are surviving into adulthood than ever before, living normal, healthy lives.

In one study[13], percutaneous balloon dilation was performed on children with TOF for palliative purposes after cardiac catheterization. There was an immediate improvement in aortic saturation. At the one year follow up, all of the cardiac lesions were successfully corrected. This study supports that balloon dilatation can be used alternative palliative therapy for TOF other than the routine surgery options listed above.

Physical Therapy Management[edit | edit source]

Pre-Operative [14] – Most infants with TOF will receive thoracic surgery to correct the associated abnormalities. The most important physical therapy intervention pre-operative for the patient and family is education. Many institutes are using a method of education that describes a pre-operative program that helps to decrease post-operative complications. Many institutions use a doll to explain to children about the tubes and how to care for them.

Post-Operative [14]Pulmonary function is the main area of concentration after thoracic surgery. The interventions vary with age but the general goal is the same, to mobilize secretions, increase aeration and increase general mobility. Atelectasis is a concern after thoracic surgery and is caused by the slowed mucous transport, altered breathing patterns, prolonged positioning in supine and diaphragmatic dysfunction in the early post-operative period. The yawn maneuver and prolonged inspiration to increase inflation are ways to prevent atelectasis. The incentive spirometry is an effective tool for preventing atelectasis in the pediatric population. Other ways that can be more fun for children are activities such as blowing bubbles or blowing on a windmill. There are expiratory maneuvers but the children typically take a large breath before blowing, thus they become inspiratory maneuvers also.

Segmental expansion techniques are effective to increase segmental aeration. These techniques are performed by placing your hand over whichever segment of the lung is not effectively inflating and allowing your hand to move with the respiratory cycle. Gentle pressure may be applied to the chest at the end of the expiratory phase, just before the inhalation phase. This elicits a stretch reflex that facilitates airflow to that particular segment.

Percussion and vibration may be performed in conjunction with segmental expansion. Percussion is the rhythmic clapping with cupped hands over the involved lung segment performed throughout the respiratory cycle, with the goal of mechanically dislodging pulmonary secretions. Vibration is performed by creating a fine oscillating movement of the hands-on the chest wall just before expiration begins and throughout the expiration phase. If the child does not tolerate percussion and vibration, placing the patient in side-lying and gently rocking back and forth may stimulate expansion, secretion motion, and relaxation. This technique is effective if the child is upset and may decrease the respiratory rate.
Positioning may be useful for patients, but certain positions may be contraindicated post thoracic surgery. Check with the MD or nurse before using positioning to make sure that it is safe for the child.


If the child is intubated suctioning may be used to remove secretions from the airways, however children with cyanotic defects (such as TOF) tend to desaturate during suctioning and it is very important to hyperventilate these patients before and after suctioning and to monitor oxygen levels.

Coughing is an effective way to mobilize secretions if the patient is able and willing to cough. A teddy bear or pillow can be used by the child to self-splint the incision. Have the child squeeze the stuffed animal against their chest to decrease pain.

Range of motion (ROM) exercises should be initiated as soon as possible after surgery. ROM exercises are extremely important with thoracic surgery because this type of incision tends to produce more guarding. Child position should be changed regularly to avoid pooling of secretions in the dependent part of the lungs and regular position changes reduce the risk of fevers after surgery. Ambulation should be implemented as soon as possible to decrease both pulmonary and circulatory complications. As soon as atrial lines and groin lines are removed, patients should begin to ambulate, even if only 5-10 ft.

Differential Diagnosis[edit | edit source]

Any other cyanotic heart defects, such as pulmonary stenosis, transposed arterial trunks, common arterial trunk, and tricuspid atresia. Patients with heart murmurs will also be tests for persistent pulmonary hypertension.[7]
