Introduction to the Facial Nerve

Original Editor - Merinda Rodseth as part of a course by Wendy Walker

Top Contributors - Merinda Rodseth, Tarina van der Stockt and Kim Jackson

Introduction[edit | edit source]

Knowledge of the facial nerve, its course, function and vulnerabilities, is essential for the optimal management of any facial palsy. The facial nerve (Cranial Nerve VII) is one of the most important and continuously used nerves in the body, connecting at least 21 muscles with the brain, providing motor innervation to the muscles of facial expression which are also involved in mastication, speech and the expression of our emotions.[1][2] The anatomy of the facial nerve is highly complex and often described based on its relationship to the cranium or the temporal bone as intracranial, intratemporal and extracranial.[1][2][3] Exploring the course of the facial nerve also highlights its possible vulnerabilities which could in turn result in the development of facial palsy. A very simplified explanation of the course of the facial nerve will be discussed in the next section to enhance the understanding of its potential sites of injury, and the impact thereof.

Intracranial Course of the Facial Nerve[edit | edit source]

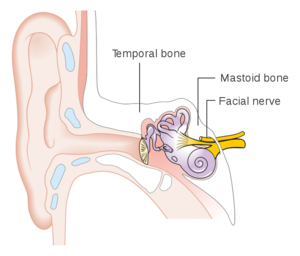

Proximity of Facial Nerve and Vestibulocochlear Nerve

The facial nerve exits the pons as two seperate roots, a motor root known as the facial nerve proper and a combined sensory and autonomic root known as the intermediate nerve, and pass through the cerebellopontine angle before it enters the internal auditory meatus/canal of the temporal bone.[1][4] At the internal auditory meatus the facial nerve lies in close proximity to the vestibulocochlear nerve (also known as the auditory/acoustic/8th cranial nerve) with the nervus intermedius interposed.[1]

Its close proximity to the auditory nerve (8th cranial nerve) at this point can potentially expose the facial nerve to damage. Benign, slow growing tumours, known as acoustic neuromas (vestibular schwannomas), occasionally grow on the auditory nerve, necessitating surgical removal.[5] Due to its proximity to the auditory nerve, the facial nerve is vulnerable to damage during the surgical removal of the acoustic neuroma leading to facial palsy.[5] Very rarely the growing tumour could also put pressure on the facial nerve, causing facial palsy.

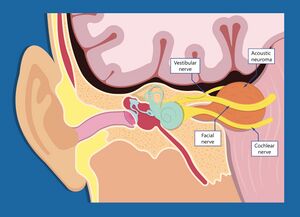

Acoustic Neuroma (Vestibular Schwannoma)

Intratemporal Course of the Facial Nerve[edit | edit source]

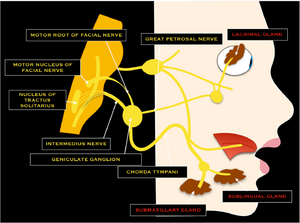

Schematic drawing of the facial nerve.png

At the base of the meatus, the motor root (facial nerve proper) and nervus intermedius enters the facial canal (fallopian canal) where it merges to form the facial nerve. The facial nerve then forms the geniculate ganglion and 3 small nerve branches originate:[1][4]

  • Greater Petrosal Nerve - this provides parasympathetic fibres to lacrimal glands of the eye and mucus membrane of the nasal cavity and palate
  • Nerve branch to the Stapedius muscle in the middle ear which reflexively stabilises the tympanic membrane during sudden loud sounds
  • Chorda Tympani - contains special sensory fibres which supply taste sensation for the anterior 2/3 of the tongue as well as parasympathetic fibres to the submandibular and sublingual salivary glands

The facial nerve then exits the fallopian/facial canal, leaving the cranium via the stylomastoid foramen of the temporal bone. Following the close proximity of the nerve to the temporal bone, any temporal bone fractures could result in damage to the facial nerve. It is also useful to consider the bony fallopian/facial canal and its lengthy z-shaped course (3cm). Bony canals are known as possible sites of entrapment for nerves especially in the presence of swelling when there is a lack of space for the nerve with concurrent loss of nerve conduction.

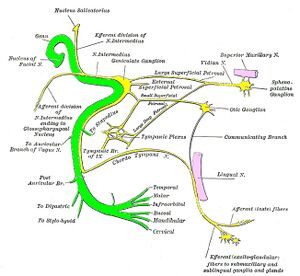

Course of the Facial Nerve

Extracranial Course of the Facial Nerve[edit | edit source]

Outside of the skull, the facial nerve turns forwards and enters the posteriomedial surface of the parotid gland where it divides into a temporofacial division and a cervicofacial division containing the five terminal sets of branches that provide motor supply to the muscles of facial expression.[1]

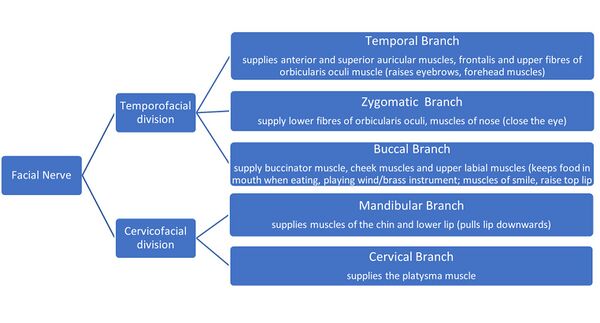

Terminal branches of Facial nerve and supplies.jpg

High variability exists among these terminal branches due to varied peripheral branching and intercommunication between the different terminal branches.[6]  The intricate anatomical relationship of the facial nerve and the parotid gland is another site of vulnerability for facial palsy, especially following swelling of the parotid gland (as seen in mumps) or surgery to the parotid gland (parotidectomy).[4][7][8]

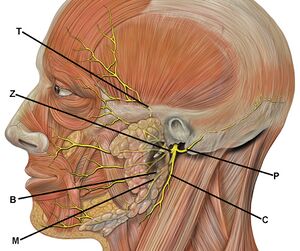

Terminal Branches of the Facial Nerve and its Proximity to the Parotid Gland

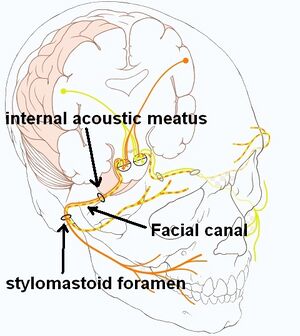

Facial Nerve in the Facial Canal

Discussing possible anatomic sites where the facial nerve can get damaged necessitates considering Bell’s palsy as the most common cause of facial paralysis. The etiology of Bell’s palsy is still unclear but reactivation of herpes simplex virus  (cold sore virus)  in the geniculate ganglion is  suspected as the most likely cause.[9][10] Post-mortem  studies identified  the underlying pathophysiology as vascular distention, inflammation and swelling with subsequent compression of the nerve in the narrow fallopian canal. Hypoperfusion (strangulation) and ischaemia of the facial nerve ensues, leading to damage of the axons and myelin sheaths with resultant nerve dysfunction.[9][10] The diagnosis of Bell’s palsy is still mainly clinical and several other conditions need to be considered in the differential diagnosis of which Stroke (upper motor neuron lesion - patient is still able to wrinkle the forehead) and Herpes Zoster (Ramsay Hunt Syndrome) are the most pertinent.[9][10]

Recovery after Facial Nerve Damage[edit | edit source]

Facial nerve injury is followed by an initial period of flaccid paralysis, where after many patients regain movement.[11] Recovery of the facial nerve is dependent on the extent of injury it acquired and the distance it needs to regrow.  The anatomical sites where the nerve damage occurs also have a profound impact on the timescale of regrowth of the damaged nerve fibres. The further the degenerated axons have to regrow, the longer it will take them to reach their target muscles, considering  axon regrowth occurs at a rate of 1mm/day (1cm/month).  Expectations for recovery should therefore be set keeping the distance of required regrowth in mind, whether shorter distances such as from the parotid gland  (3-4 months), or shorter terminal branches of the facial nerve (zygomatic to the eye or buccal to the cheek) (5-7 months) from injury following Bell’s Palsy or Ramsay Hunt Syndrome (Herpes Zoster virus, similar site of injury and timescale) or longer axons from the acoustic meatus following acoustic neuroma surgery or the longer nerve branches such as the temporal branch to the forehead or the mandibular branch to the chin.

It is also useful to keep the three degrees of nerve damage in mind as it also has a direct impact on the recovery time frame for the nerve:

  • Neuropraxia - temporary loss of function, no permanent damage, movements back to normal within 6-8 weeks
  • Axonotmesis - Outer sheath is intact but the axon is damaged  resulting in degeneration of the nerve. Regeneration/regrowth of the nerve is known to occur at a rate of 1mm/day (1cm/month)
  • Neurotmesis - Complete severance of the nerve necessitating surgical repair.

The immediate treatment for Bell’s Palsy is therefore mostly aimed at reducing the swelling of the nerve in order to prevent axonal damage and incorporates 10 days of steroids, started within 72 hours of onset of the palsy.[9][10] Around 71% of patients with Bell’s Palsy are expected to recover normally, leaving around 30% who will suffer axonotmesis damage and delayed return of muscle functioning (5-6 months).[9] Initially these patients will be able to close their eyes and start moving their mouths in order to smile, but not yet raise their eyebrows as the temporal branch of the nerve is much longer than that of the buccal or zygomatic branches, and hence takes longer to regrow.

A small number of patients may experience a delay in recovery after facial nerve injury, with subsequent development of synkinesis.[10][11] It occurs in the vast majority of people who have axonotmesis damage to the facial nerve. Facial synkinesis is defined as “abnormal facial movements that occur during volitional or spontaneous movement, for example, voluntary movement of the mouth may result in the closure of the eye”.[11] Even though the exact mechanism of synkinesis is still unknown, it is proposed to develop due to aberrant regeneration of the facial nerve during recovery resulting in “miswiring” of the nerve.[11] Synkinesis develops when more axons reach the muscles and therefore only becomes evident later in the recovery phase, around month 3 with parotid gland surgery, month 5-6 with Bell’s Palsy, and even later with acoustic neuroma surgery (6-9 months) due to the length of the axons.

Facial Nerve with all its Branches
