Introduction[edit | edit source]
Walking is an integral part of humans' daily locomotion and an important indicator of health. It is the most common physical activity that most adults will do in their leisure time.
- The individual gait pattern is influenced by age, personality, mood and sociocultural factors.
- The preferred walking speed in older adults is a sensitive marker of general health and survival.
- Safe walking requires intact cognition and executive control. It is a complex biomechanical process of dynamic balance which requires a person to maintain their centre of gravity within their base of support throughout movement.
- Gait disorders lead to a loss of personal freedom, falls and injuries and result in a marked reduction in the quality of life.
Thus, it is valuable to be able to measure and analyse human gait. In order to do so, a number of relevant terms and parameters have been defined.
Definitions[edit | edit source]
Gait - The manner or style of walking.
Gait analysis - An analysis of each component of the two phases of ambulation is an essential part of the diagnosis of various neurological disorders and the assessment of patient progress during rehabilitation and recovery from the effects of neurologic disease, musculoskeletal injury or disease process, or amputation of a lower limb. Clinicians and researchers use various qualitative and quantitative parameters to analyse gait. A systematic review in 2017 found that the most relevant parameters for gait analysis in a healthy adult population were walking velocity, cadence, and step/stride length. The authors defined relevant parameters as those that help clinicians identify gait abnormalities applicable in a rehabilitation setting.
Step length - The distance between the initial contact of one foot and the initial contact of the contralateral foot. Normal step length is on average about 70 cm.
Stride length - The distance between the consecutive initial contacts of the same foot.
Step time - The time between the initial contact of one foot and the initial contact of the contralateral foot.
Stride time - The time between the consecutive initial contacts of the same foot.
Cadence - The number of steps taken per minute (steps/minute). Healthy adults average about 90-120 steps per minute for a comfortable walking speed.
Gait speed/velocity - Velocity is determined by one's cadence and step length, measured in units of distance over time (metres/second). Clinically, it is often calculated by measuring the time it takes to walk a specified distance, usually 6 m or less. Healthy adults will self-select a comfortable walking speed of about 1.34 m/s on average. Slower speeds correlate with an increased risk of mortality in geriatric patients. Normal walking speed primarily involves the lower extremities, with the arms and trunk providing stability and balance. With faster speeds, the body depends on the upper extremities and trunk for propulsion, balance, and stability with the lower limb joints producing greater ranges of motion.
The following video shows a 4-metre walk test:

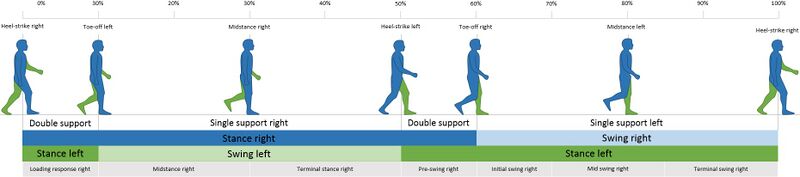

Gait cycle - A repetitive pattern involving steps and strides or the time from when the heel of one foot touches the ground to the time the same heel touches the ground again. The gait cycle is divided into two phases which are further divided into eight sub-phases:
- Stance Phase (60% of the gait cycle) - during which some part of the foot is in contact with the ground:
- Initial contact/heel strike
- Foot flat
- Heel off
- Toe off
- Swing Phase (40% of the gait cycle) - during which the foot is not in contact with the ground:
- Initial swing
- Late swing
The demarcation between walking and running occurs when periods of double support during the stance phase of the gait cycle (both feet are simultaneously in contact with the ground) give way to two periods of double float at the beginning and the end of the swing phase of gait (neither foot is touching the ground).
