Brachial plexus

Introduction

The Brachial Plexus is a network of nerve fibers that run from the spine, passing through the cervico-axillary canal to reach axilla.  It is formed by the ventral rami of the lower four cervical and first thoracic nerve roots (C5-C8, T1). [1]

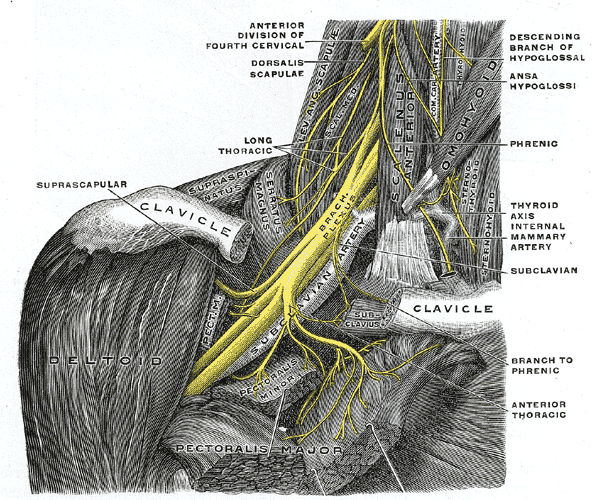

The right brachial plexus with its short branches, viewed from in front.
Brachial plexus anterior view nerves.JPG


Function

The brachial plexus is responsible for cutaneous and muscular innervation of the entire upper limb, with two exceptions: the trapezius muscle innervated by the spinal accessory nerve (CN XI) and an area of skin near the axilla innervated by the intercostobrachial nerve.[2]

Description

Path [3] [4]

The brachial plexus is divided into Roots, Trunks, Divisions, Cords, and Branches. There are five "terminal" branches and numerous other "pre-terminal" or "collateral" branches that leave the plexus at various points along its length.

  • The five Roots are the five anterior rami of the of the lower four cervical and first thoracic nerve roots (C5-C8, T1), after they have given off their segmental supply to the muscles of the neck. These Roots merge to form three Trunks:
    • Upper Trunk (C5-C6)
    • Middle Trunk (C7)
    • Lower Trunk (C8, T1)
  • Each Trunk then splits into anterior and posterior divisions, to form six Divisions.   The anterior/ posterior divisions innervate flexor groups versus extensor groups:
    • anterior divisions of the upper, middle, and lower trunks
    • posterior divisions of the upper, middle, and lower trunks
  • These six Divisions will regroup to become the three Cords. The Cords are named by their position with respect to the axillary artery.
    • The Posterior Cord is formed from the three posterior divisions of the trunks (C5-C8,T1)
    • The Lateral Cord is the anterior divisions from the upper and middle trunks (C5-C7)
    • The Medial Cord is simply a continuation of the anterior division of the lower trunk (C8,T1)
Anatomical illustration of the brachial plexus with areas of roots, trunks, divisions and cords marked.

Specific Branches [1][3]

The branches are listed below. Most branch from the cords, but a few branch (indicated in italics) directly from earlier structures.

Bold indicates primary spinal root component of nerve. Italics indicate spinal roots that frequently, but not always, contribute to the nerve.

From Nerve Roots Muscles Cutaneous
roots Dorsal scapular nerve C4, C5 Rhomboid muscles and Levator scapulae -
roots Long thoracic nerve C5, C6, C7 Serratus anterior -
upper trunk Nerve to the subclavius C5, C6 Subclavius muscle -
upper trunk Suprascapular nerve C5, C6 Supraspinatus and Infraspinatus -
lateral cord Lateral pectoral nerve C5, C6, C7 Pectoralis major and Pectoralis minor (by communicating with the Medial pectoral nerve) -
lateral cord Musculocutaneous nerve C5, C6, C7 Coracobrachialis, Brachialis and Biceps brachii becomes the Lateral cutaneous nerve of the forearm
lateral cord lateral root of the Median nerve C6, C7 fibres to the median nerve -
posterior cord Upper subscapular nerve C5, C6 Subscapularis (upper part) -
posterior cord Thoracodorsal nerve (middle subscapular nerve) C6, C7, C8 Latissimus dorsi -
posterior cord Lower subscapular nerve C5, C6 subscapularis (lower part ) and Teres major -
posterior cord Axillary nerve C5, C6 anterior branch: deltoid and a small area of overlying skin
posterior branch: Teres minor and deltoid muscles
posterior branch becomes Upper lateral cutaneous nerve of the arm
posterior cord Radial nerve C5, C6, C7, C8, T1 Triceps brachii, Supinator, Anconeus, the extensor muscles of the Forearm, and Brachioradialis skin of the posterior arm as the Posterior cutaneous nerve of the arm
medial cord Medial pectoral nerve C8, T1 Pectoralis major and Pectoralis minor -
medial cord medial root of the Median nerve C8, T1 fibres to the median nerve portions of hand not served by ulnar or radial
medial cord Medial cutaneous nerve of the arm C8, T1 - front and medial skin of the Arm
medial cord Medial cutaneous nerve of the forearm C8, T1 - medial skin of the forearm
medial cord Ulnar nerve C8, T1 Flexor carpi ulnaris, the medial two bellies of Flexor digitorum profundus, the intrinsic hand muscles except the Thenar muscles and the two most lateral lumbricals the skin of the medial side of the hand and medial one and a half fingers on the palmar side and medial two and a half fingers on the dorsal side

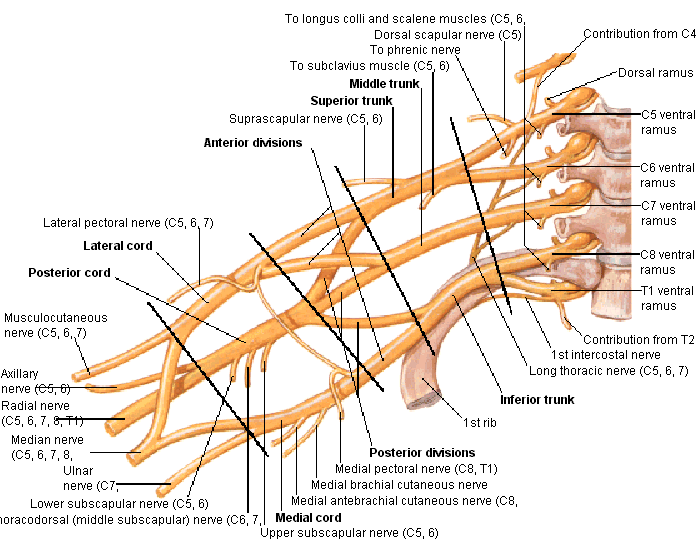

Specific branches can be visualised on the diagram below:


Injuries

Injury to the brachial plexus can be very problematic because the nerves branching off of the plexus provide innervation to the upper extremity. Clinical signs and symptoms vary with which area of the plexus is involved, and generally result in paralysis or anesthesia.[3]

Symptoms can range from transient nerve dysfunction to complete upper extremity weakness.  Beacuase of the anatomical variants[5] of the brachial plexus these injuries can be a challenge to diagnose.

Mechanism of Injury

The main causes of brachial plexus palsies are traction, due to extreme movements, and heavy impact. [6]

Brachial plexus injury can occur in a variety of ways and can occur as a result of shoulder trauma, tumours, or inflammation. The rare Parsonage-Turner Syndrome causes brachial plexus inflammation without obvious injury, but with nevertheless disabling symptoms. But in general, brachial plexus lesions can be classified as either traumatic or obstetric.

  • Obstetric injuries may occur from mechanical injury involving shoulder dystocia during difficult childbirth. During birth, excessive stretching of the neck or pulling the upper extremity can result in an upper brachial plexus injury or inferior trunk, respectively. The incidence of brachial plexus injury is approximately 1 in 1,000 live births. [7]
  • Traumatic injury may arise from penetrating or sports related injuries, falls, work related injuries, radiation therapy and iatrogenic causes (i.e. first rib resection, shoulder surgery, brachial plexus block).  However the most common mechanism of injury is a traction injury due to forceful separation of the neck from the shoulder.

Common associated injuries can include fractures of the proximal humerus, clavicle, scapula, cervical spine and upper limb vascular injuries. [6] Management of these injuries may complicate the picture when diagnosing brachial plexus injury but can also guide in determining the mechanism of injury.

Classification of Injury

There are many classification systems for brachial plexus injuries, they can be divided into three types:

  1. An upper brachial plexus lesion, which occurs from excessive lateral neck flexion away from the shoulder. Most commonly, forceps delivery or falling on the neck at an angle causes upper plexus lesions leading to Erb's Palsy. This type of injury produces a very characteristic sign called Waiter's tip deformity due to loss of the lateral rotators of the shoulder, arm flexors, and hand extensor muscles.[1]
  2. Less frequently, the whole brachial plexus lesion occurs.
  3. Most infrequently, sudden upward pulling on an abducted arm (as when someone breaks a fall by grasping a tree branch) produces a lower brachial plexus lesion, in which the eighth cervical (C8) and first thoracic (T1) nerves are injured either before or after they have joined to form the lower trunk. The subsequent paralysis affects, principally, the intrinsic muscles of the hand and the flexors of the wrist and fingers. This results in a form of paralysis known as Klumpke's Paralysis[1]

However a commonly used one is Leffert's classification system which is based on eitiology and level of injury:

  • I Open (usually from stabbing)
  • II Closed (usually from motorcycle accident)
  • IIa Supraclavicular (preganglionic or postgangionic)
  • IIb Infraclavicular
  • IIc Combined
  • III Radiation induced
  • IV Obstetric
  • IVa Erb's (upper root)
  • IVb Klumpke (lower root)
  • IVc Mixed

Signs and Symptoms

Nerve damage causes a multifaceted clinical picture consisting of sensorimotor disturbances (pain, muscle atrophy, muscle weakness, secondary deformities) as well as reorganization of the Central Nervous System that may be associated with upper limb underuse.[8]

  • Pain is most common, in particular those afecting the preganglionic fibres[9].  Often described as crushing with intermittent severe attacks shooting down the arm.
  • Paralysis and anaesthesia in affected extremity.
  • Bizarre sensations, hyperalgaesia, dysethesia and allodynia.
  • Myoclonic jerks in the affected extremity.
  • Ipsilateral Horners Syndrome with T1 injury.

Investigations [4]

  • Xray of shoulder area and cervical spine to determine if any boney abnormalities are causing the lesion.
  • MRI will help to visualise causative pathology such as tumors, neuritis, radiation injury.
  • EMG and NCS help to confirm diagnosis, localise lesion and determine degree of axonal loss.
    These tests are the most useful tests to determine localisation of the plexopathy, especially, the sensory nerve conduction studies (SCSs) because sensory nerve action potential amplitude will decrease in plexopathies due to Wallerian degeneration of the postganglionic sensory fibers[10].
  • Histamine test to differentiate between pre and postganglionic lesion[9].

Management

brachial plexus injury may result in severe and chronic impairments in both adults and children, thus requiring an early and long-lasting treatment. [8]

Medical Management

  • The main aspect of medical management is pain control.  Often treated in a similar way to neuropathic pain with NSAID, tricyclic antidepressants, anticonvulsants and oral or transdermal opoids. [11]

Phychological Management

  • Psychological problems and a lack of cooperation by the patient may limit rehabilitation effects and increase disability.[8]

Physiotherapy Management

The aim is to maintain the range of motion of the extremity, to strengthen the remaining functional muscles, to protect the denervated dermatomes, and to manage pain. [11]

  • Pain control - acupuncture, TENS
  • Maintaining ROM - passive movements, exercise therapy [11]
  • Strengthen affected muscles - biofeedback, exercise therapy
  • Managing chronic oedema - compression garments, advice, massage therapy

Intervention Management

  • Continuous brachial plexus block
  • Transcutaneous nerve stimulation
  • Dorsal route entry zone (DREZ) ablation or implantable dorsal route stimulators.
  • Surgical techniques include neurolysis, nerve grafting and nerve transfer. Intercostal nerves are commonly used to reinnervate muscles after a brachial plexus injury with avulsion of spinal nerve roots.[11] [12]


Brachial Plexus Block

A brachial plexus block allows a surgeon to operate on an upper extremity without the use of a general anesthetic, when combined with a tourniquet. [13]

The location of the injection is between the posterior border of the sternocleidomastoid and the clavicle. The axillary sheath surrounds the axillary vein, axillary artery, and three cords of the brachial plexus. When the injection takes effect, the muscles and skin innervated by the cords found in the sheath are anesthetized. [13]

Read more here


[14]


Other Information

Some mnemonics for remembering the branches:

  • Posterior Cord Branches
    • STAR - subscapular (upper and lower), thoracodorsal, axillary, radial
    • ULTRA - upper subscapular, lower subscapular, thoracodorsal, radial, axillary
  • Lateral Cord Branches
    • LLM "Lucy Loves Me" - lateral pectoral, lateral root of the median nerve, musculocutaneous
  • Medial Cord Branches
    • MMMUM "Most Medical Men Use Morphine" - medial pectoral, medial cutaneous nerve of arm, medial cutaneous nerve of forearm, ulnar, medial root of the median nerve
