Anatomy and Physiology of Swallowing

Original Editor - Srishti Banerjee

Top Contributors - Ewa Jaraczewska and Jess Bell

Introduction

Deglutition, or swallowing, refers to the movement of liquids or solids from the mouth to the stomach via the pharynx and oesophagus. The pharyngeal swallow, one of the first pharyngeal motor responses, has been observed from around week 10 of gestation; consistent swallowing appears around week 22. Multiple organ systems are involved in swallowing, including the musculoskeletal, neuromuscular and respiratory systems. Normal swallowing requires a coordinated effort of numerous muscles, the central nervous system, and five cranial nerves. Other key anatomical structures involved in this process are the nose, nasal cavity, oral cavity, and pharynx. This article explores the relevant anatomy and physiology of normal swallowing.

Developmental Anatomy and Swallowing

There are a number of anatomical changes that occur from infancy to childhood.

Infants:

• Teeth have not erupted
• The hard palate is flatter
• The larynx and hyoid bone are located high in the neck
• The epiglottis touches the back of the soft palate
• The airway is separated from the oral cavity by a soft tissue barrier
• The jaw, oral cavity and larynx are small
• The tongue occupies a significant portion of the mouth
• Uses the tongue, sucking pads, and sulci to suck
• Sucking pads provide stability
• Lack of a distinct oropharynx
• The base of the tongue is close to the larynx

Older children:

• The mouth is bigger, so the tongue lies at a lower position (floor of the mouth) and sits behind the teeth
• The mandible extends down and forward
• The oral cavity expands
• The neck gets longer, so the larynx descends to a lower position in the neck
• The contact between the epiglottis and soft palate is gradually lost
• The pharynx lengthens vertically
• The hyoid descends
• The sucking pads degenerate

These anatomical changes are essential for speech, but they make humans more prone to aspiration.

Adult Anatomy and Swallowing

Muscles

Table 1 lists the major muscles of swallowing and their function. The tongue muscles listed are the extrinsic muscles, which alter the position of the tongue; the intrinsic muscles (superior longitudinal, inferior longitudinal, transverse and vertical) alter its shape and are not covered here. Some muscles appear more than once to highlight their relationships with different structures.

Table 1. Muscles of swallowing

Muscles	Function
Extrinsic tongue muscles: genioglossus, hyoglossus, styloglossus.	Hyoglossus: depresses and retracts the tongue. Genioglossus: protrudes and depresses the tongue; maintains upper airway patency and prevents posterior tongue displacement. Styloglossus: retracts and elevates the tongue.
Muscles of mastication: masseter, temporalis, medial and lateral pterygoid muscles.	Masseter: elevates and protracts the mandible. Temporalis: elevates and retracts the mandible. Medial pterygoid: a bilateral contraction elevates, closes and protrudes the mandible; a unilateral contraction swings the mandible to the opposite side. Lateral pterygoid: a bilateral contraction protrudes and depresses the mandible; a unilateral contraction moves the mandible medially.
Suprahyoid muscles: digastric (anterior belly (ABD) and posterior belly (PBD)), mylohyoid, geniohyoid, stylohyoid.	ABD: elevates and stabilises the hyoid during swallowing, helping to protect the airway while eating PBD: elevates and retracts the hyoid bone Together, the ABD and PBD lift the tongue base and hyoid bone and depress the mandible for jaw opening, chewing and speech Mylohyoid: works with the infrahyoid muscles on the position of the hyoid bone. When the mandible is fixed, it elevates the base of the tongue and the hyoid bone anterosuperiorly during swallowing. When the hyoid bone is fixed, it depresses the mandible and elevates the floor of the oral cavity. Geniohyoid: pulls the hyoid bone up and forward during swallowing for effective bolus flow and pharyngeal clearing. Stylohyoid: elevates and retracts the hyoid bone (there are variable descriptions of its function in the literature).
Soft palate and pharynx: tensor veli palatini (TVP), levator veli palatini (LVP), palatopharyngeus (PPh), salpingopharyngeus (SaPh), stylopharyngeus (SPh), intrinsic laryngeal muscles (IL).	TVP: tenses the soft palate and opens the auditory tube. LVP: elevates the soft palate. PPh: elevates and shortens the pharynx, pulls the pharyngeal walls superiorly, anteriorly and medially during swallowing, and closes off the nasopharynx from the oropharynx. SaPh: raises the pharynx and larynx during swallowing and draws the pharyngeal walls up laterally. SPh: elevates the pharynx and larynx. IL: open and close, and lengthen and shorten, the vocal folds.
Upper oesophageal sphincter (UES): Extrinsic muscles: anterior group: suprahyoid muscles (geniohyoid, mylohyoid, stylohyoid and anterior belly of digastric); infrahyoid muscles (thyrohyoid, sternohyoid, sternothyroid and omohyoid). Extrinsic muscles: posterior group: stylopharyngeus, palatopharyngeus and pterygopharyngeus. Intrinsic muscles: cricopharyngeus (CPM), inferior constrictor, cranial aspect of the circular oesophageal muscle.	Extrinsic muscles anterior group: the suprahyoid muscles move the hyoid bone anterosuperiorly; the infrahyoid muscles then pull the larynx up and anteriorly with the hyoid bone (thyrohyoid and omohyoid), while sternohyoid and sternothyroid stabilise the larynx during swallowing. Extrinsic muscles posterior group: shorten the pharynx, pulling the UES upwards while widening it. Intrinsic muscles: prevent the swallowing of air during respiration and phonation and the regurgitation of oesophageal contents into the airway; CPM relaxes to allow food to pass into the oesophagus.

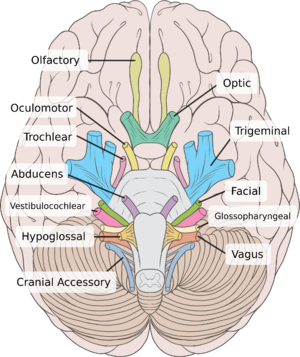

Figure 1. Cranial nerves

Cranial nerves

Cranial nerves modulate the execution of swallowing. Table 2 summarises the function and the clinical relevance of the five cranial nerves involved in swallowing.

Table 2. Cranial nerves involved in swallowing

Cranial nerves (CN)	Function	Clinical relevance
Trigeminal nerve (TN) CN V	Controls somatosensation of the face and the anterior two-thirds of the tongue Provides motor innervation of the following muscles: mylohyoid, anterior belly of the digastric muscle, masticatory muscles, and the tensor veli palatini	Impairment of the TN can lead to: problems in the preparatory oral and oral phase of swallowing due to poor mastication and poor stabilisation of the mouth floor decreased hyolaryngeal excursion during the pharyngeal phase of swallowing due to mylohyoid and anterior belly digastric muscle impairment
Facial nerve (FN) CN VII	Conveys taste sensation in the anterior two-thirds of the tongue Controls the motor movement of the orbicularis oris and buccinator muscle, which are involved in the closure and prevention of oral residue Provides motor innervation of the stylohyoid muscle and the posterior belly of the digastric muscle Innervates the submandibular and sublingual salivary glands	Impairment of the FN can result in: decreased taste perception poor bolus formation during the preparatory oral phase anterior bolus spilling post-swallow oral residue dry mouth
Glossopharyngeal nerve (GN) CN IX	Controls somatosensation of the posterior third of the tongue, the mucosa of the soft palate and the upper pharyngeal tract Conveys taste sensation from the posterior third of the tongue Provides autonomic innervation of the parotid gland Provides motor innervation of the stylopharyngeus muscle, which assists in the opening of the upper oesophageal sphincter	Dysfunction of the glossopharyngeal nerve can result in: impaired pharyngeal bolus transport impaired upper oesophageal sphincter opening, resulting in post-swallow pharyngeal pooling
Vagus nerve (VN) CN X	Provides motor innervation to all striated muscles of the larynx and pharynx, except the stylopharyngeus and the tensor veli palatini The pharyngeal branches of the vagus nerve innervate the levator veli palatini, salpingopharyngeus, palatopharyngeus, palatoglossus, and the uvular muscle The external superior laryngeal nerve (SLN) supplies the motor innervation of the cricothyroid muscle The recurrent laryngeal nerve (RLN) is responsible for the motor innervation of all intrinsic laryngeal muscles except for the cricothyroid muscle The RLN and the SLN internal branches provide mucosal sensory innervation of the pharynx, larynx, and proximal trachea	Impairment of the VN can cause: poor velopharyngeal seal and nasal reflux weak pharyngeal contraction reduced vocal fold adduction, resulting in dysphonia and poor cough effectiveness impaired upper oesophageal sphincter opening—post swallow pharyngeal pooling silent aspiration
Hypoglossal nerve (HN) CN XII	Innervates all intrinsic and extrinsic tongue muscles, except for the palatoglossus muscle Controls all movements of the tongue	Impairment of the HN can cause: dysarthria problems with oral control of the bolus problems with bolus propulsion due to poor lingual pressure premature posterior spill of the bolus to the pharynx post-swallow oral residue

Anatomical Structures

"Feeding and breathing share the same anatomy."

Nose and nasal cavity: we breathe through our nose while eating solids since our mouth is processing the food, and our lips are sealed to prevent food from escaping anteriorly. Nasal air pressure oscillates with masticatory jaw movement. It becomes positive relative to atmospheric pressure during jaw closure and negative during jaw opening.

Oral cavity: tongue movement corresponds with cyclic jaw movement when food is in the mouth. The tongue repositions food laterally and the cheeks reposition food medially.

Pharynx: a breathing, mastication and swallowing route. The pharynx dilates to maintain the airway for breathing and constricts to push the food bolus to the oesophagus for swallowing.

Larynx and vocal folds: the posterior aspect of the larynx forms the anterior wall of the upper oesophageal sphincter.

Upper oesophageal sphincter: a fibromuscular structure located behind the larynx. It is bordered posterolaterally by the pharyngoesophageal muscles and superiorly by the pharynx. Inferiorly, it continues into the oesophagus.

Neural Coordination of Swallowing

Swallowing requires a coordinated contraction of the muscles in the mouth, pharynx, upper oesophageal sphincter, and upper oesophagus via central control. Swallowing centres activate the voluntary motor centres and inhibit the respiratory centres - this prevents food from entering the trachea. There is also activation of the:

• reflex centres
• nuclei of the cranial nerves that are involved in the movement of the tongue, larynx and pharynx

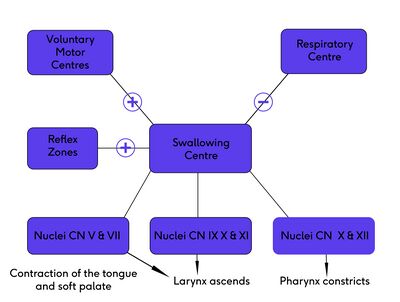

Please see the swallowing flow chart in Figure 2 for more information.

Figure 2. Swallowing flow chart.

Figure 3. Physiology of swallowing.

Physiology of Swallowing

Swallowing is often described as having four phases: (1) oral preparatory phase, (2) oral propulsive phase, (3) pharyngeal phase, and (4) oesophageal phase. The oral phases change depending on whether we are drinking liquids or eating solids.

Swallowing Liquids

Oral Preparatory Phase

The oral preparatory phase starts as soon as you take a sip. It is a voluntary phase of swallowing, and includes the following steps:

• formation of a liquid bolus in the mouth
• holding the bolus in the anterior part of the mouth, known as the anterior floor of the mouth, or on the surface of the tongue against the hard palate
• the tongue and the soft palate seal the oral cavity posteriorly to prevent leakage of the liquid into the oropharynx

Oral Propulsive Phase

The oral propulsive phase immediately follows the oral preparatory phase:

• the tip of the tongue rises to touch the hard palate
• as the tip of the tongue rises, the oral cavity opens
• the tongue-to-palate contact area gradually widens in an anterior-posterior direction
• the bolus is pushed backwards along the pharynx

To prevent liquid aspiration, "the bolus is commonly held in the oral cavity until just before the initiation of the pharyngeal swallow." With solids, the food is propelled to the oropharynx, accumulated, and bolus is formed before swallowing.

Swallowing Solids

The Process Model of Feeding describes the oral stage of eating solid food.

Oral Preparatory Phase

Stage I Transport: after food enters the mouth, the bolus is taken to the post-canine dentition, where it is rotated laterally

Food processing: mastication (chewing) reduces the food particle size, and saliva softens the food to an appropriate consistency for swallowing. This involves cyclical movements of the jaw together with the tongue, cheek, soft palate and hyoid bone. Unlike with liquids, the posterior cavity is not sealed - the cyclical movement of the jaw and soft palate pumps air into the nasal cavity through the pharynx. This delivers the aroma of the food to the chemoreceptors in the nose.

The movements associated with chewing progress from early jaw opening, when the lips are sealed and the tongue and jaw move forward and downward, to late jaw opening, when the lips open and the tongue curls to avoid being bitten. Throughout, the tongue moves mediolaterally and rotates along its antero-posterior axis, while the hyoid bone stabilises the jaw and tongue.

Clinical relevance: Older adults have increased chewing cycles and activity of the jaw adductor muscles during mastication, which increases mastication time. However, despite this increase, the bolus size at the time of swallow onset is larger in older adults than in younger people because of a decrease in masticatory function.

Oral Propulsive Phase

Stage II transport: once ready to be swallowed, the bolus is placed on the surface of the tongue and propelled backwards to the oropharynx; chewing continues while food remains in the oral cavity.

Clinical relevance: The initial consistency of food affects the duration of oropharyngeal bolus aggregation before the swallow and the number of chewing cycles. There are more chewing cycles, and the oropharyngeal bolus aggregation time is longer for hard foods than for soft foods.

Pharyngeal Phase

The pharyngeal phase is rapid and involves two key events: food passage and airway protection.

Food passage: the bolus is propelled from the pharynx through the upper oesophageal sphincter to the oesophagus. The tongue elevates, blocking the oral cavity and pushing the bolus against the pharyngeal wall, and the pharyngeal constrictor muscles contract to create a peristaltic wave that drives the bolus downwards.

Airway protection: the epiglottis, arytenoids and vocal folds act as three gatekeepers against aspiration. The soft palate elevates against the lateral and posterior pharyngeal walls, closing the nasopharynx and preventing regurgitation of food. The true vocal folds adduct to close the glottis, and the arytenoid cartilages adduct and tilt anteriorly towards the base of the epiglottis, closing the laryngeal vestibule from below. At the same time, the suprahyoid and thyrohyoid muscles pull the hyoid bone up; because the larynx is attached to the hyoid, it moves up and forward, and this hyolaryngeal elevation, together with bolus pressure, causes the epiglottis to invert and complete closure of the laryngeal vestibule.

All of this must occur before the upper oesophageal sphincter opens, because once it does, the bolus passes into the oesophagus.

Opening of the sphincter depends on three factors: relaxation of the cricopharyngeus muscle; contraction of the suprahyoid and thyrohyoid muscles, which pulls the hyolaryngeal complex forward; and the pressure created by the descending bolus.

Oesophageal Phase

The oesophagus is a tube-like structure that has three anatomical segments: cervical, thoracic and abdominal. It extends from the upper oesophageal sphincter to the lower oesophageal sphincter. The upper third of the oesophagus is made up of striated muscle and the lower third of smooth muscle, with a transitional middle third of mixed striated and smooth muscle.

The oesophageal phase includes the following activities:

• food passes through the upper oesophageal sphincter to the oesophagus
• a peristaltic wave develops, which transports the bolus through the oesophagus
• during swallowing, the lower oesophageal sphincter relaxes to allow the bolus to enter the stomach - it is contracted at rest to prevent regurgitation of food from the stomach

This optional video discusses the anatomy and physiology of swallowing:

Swallowing and Respiration

Swallowing and breathing are coordinated actions. Swallowing usually starts during the expiratory phase of breathing. During swallowing, breathing briefly pauses because the airway is physically closed by the elevation of the soft palate and tilting of the epiglottis. There is also neural suppression of respiration in the brainstem. This pause continues for 0.5-1.5 seconds during swallowing, before respiration resumes with expiration after swallowing.

This sequence of exhale-swallow-exhale prevents the inhalation of any food that remains in the pharynx. Other patterns of swallowing and respiration include (1) “inhale-swallow-exhale”, (2) “exhale-swallow-inhale” and (3)“inhale-swallow-inhale”. The inhale-swallow-exhale pattern is the second most common after exhale-swallow-exhale; the exhale-swallow-inhale and inhale-swallow-inhale patterns occur rarely in healthy adults.

Note: "When performing sequential swallows while drinking from a cup, respiration can resume with inspiration." During mastication, the respiratory cycle duration decreases and then increases with swallowing following the sequence of exhale-swallow-exhale.
