Physiotherapy for Morton's Neuroma


Original Editor - Ewa Jaraczewska
Top Contributors - Ewa Jaraczewska and Jess Bell

Introduction[edit | edit source]

Civinini Morton’s Syndrome (CMS) is more commonly known as Morton’s neuroma. Weinfield and Myerson[1] have also proposed the term "interdigital neuritis", which better describes the pathology of this condition. Neural degeneration and perineural fibrosis are typical of Morton's neuroma[2]; the presence of inflammatory tissue in histological examination justifies the description of Morton's neuroma as perineural fibrosis.[3] Clinical symptoms that can help with diagnosis include pain and abnormal forefoot sensation. Conservative treatment, including lifestyle adjustment, may not always be practical. Thus, patients may choose to have surgery or various types of ultrasound-guided percutaneous injections to manage this condition.

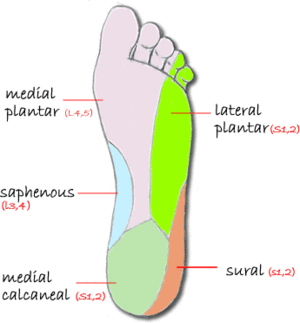

Foot innervation

Clinically Relevant Anatomy[edit | edit source]

Magnetic resonance imaging (MRI) shows the medial and lateral plantar nerves arise from the posterior tibial nerve.[4] The bifurcation of the tibial nerve occurs inside the retinaculum or proximal to the flexor retinaculum.[5] The two plantar nerves penetrate the tunnel made of the deep fascia of the abductor hallucis muscle and the fibrous septum, which connects the fascia to the bone.[5]

The medial plantar nerve (MPN) is the larger of the two plantar nerves. It originates under the laminate ligament and passes between abductor hallucis and flexor digitorum brevis. Upon reaching the metatarsal bases, it divides into three common digital plantar nerves.[6] The MPN innervates the abductor hallucis, flexor hallucis brevis, flexor digitorum brevis and the first lumbrical of the foot.

The lateral plantar nerve (LPN) innervates abductor digiti minimi, flexor digiti minimi brevis, quadratus plantae, the three lateral lumbricals of the foot, adductor hallucis, the plantar interossei, and the dorsal interossei.

The common plantar digital (CPD) nerves pass under the intermetatarsal ligaments. They go through the plantar aponeurosis and divide into two branches, which supply the plantar skin of the toes. Smaller portions of the CPD nerves innervate the adjacent metatarsals, metatarsophalangeal joints and plantar skin under the metatarsal heads.[7]

The third common digital nerve begins as the medial plantar nerve and receives a communicating branch from the lateral plantar nerve. Because it passes through the narrow space deep to the transverse metatarsal ligament, it becomes less mobile, especially during weight-bearing activities.[7]

The branches of the common digital nerve in the third plantar webspace are most commonly affected in Morton's neuroma. It has been proposed that the location of this nerve (i.e. near the narrow space of the transverse metatarsal ligament) may be why Morton's neuroma often occurs within the third intermetatarsal space.[7]

Morton's neuroma

Neuroma[edit | edit source]

A neuroma is also referred to as a pinched nerve. Morton's neuroma is a compressive neuropathy of the common plantar digital nerve caused by an entrapment of the nerve between the intermetatarsal ligaments.

Aetiology[edit | edit source]

There are several aetiopathogenetic theories behind the development of Morton's neuroma. These include:

  • Chronic traction damage[8]
  • Chronic, repetitive trauma[8]
  • Ischaemia of vasa nervorum (Vasa nervorum = nutrient vessels that provide blood supply to each peripheral nerve from adjacent blood vessels)[7][8]
  • Entrapment or mechanical compression[3][9]
  • Inflammation due to intermetatarsal bursitis[3]

Anatomical considerations:

  • The third common digital nerve is thicker than the others due to an anastomosis between two nerve trunks[7]
  • The fourth ray is more mobile than the third, which might lead to inflammation[7]
  • The plantar nerve is compressed by the distal metatarsal transverse ligament[3]

Epidemiology[edit | edit source]

More females than males develop Morton's neuroma, with a female-to-male ratio of 5:1.[7] It affects around 30% of the population. The average age for Morton's neuroma is 50 years. It affects both feet, and in most cases, the third intermetatarsal space is involved, followed by the second (Hauser’s neuroma).[10] Multiple locations are scarce.[7]

Mechanism of Injury / Pathological Process[edit | edit source]

According to the literature, the most frequent mechanism of injury is nerve entrapment.[9] As the third common digital nerve is thicker due to the fusion of the medial and lateral plantar nerves, it can be entrapped by the surrounding ligament.[9] Entrapment neuropathy causes perineural fibrosis and nerve degeneration.[9] The thickening of the nerve progresses due to vascular hyalinisation, which causes more nerve trauma and entrapment. Wearing high-heel shoes can also add to the pathological process as these shoes cause excessive weight bearing through the forefoot.[9]

Clinical Presentation[edit | edit source]

Individuals with Morton's neuroma can be clinically symptomatic or asymptomatic. Persons with clinically symptomatic Morton's neuroma may present with the following symptoms:[9]

  • Pain or paresthesias in the intermetatarsal region, toes, and dorsal web space. Pain is worsened by weight-bearing or the use of high-heeled shoes. Removing shoes and gently massaging the forefoot can usually relieve the pain.
  • Pain is usually sharp and can become debilitating to the point that the patient is afraid or anxious about walking or even putting their foot on the ground.[7]
  • The patient may complain of a burning sensation in the intermetatarsal spaces.[11]
  • A mass can be palpated.
  • Symptoms can be present as a result of trauma.
  • Patients may describe altered sensation and report that it feels like they have a “pebble in the shoe”.[12]
  • Pain worsens with walking or running.[12]

The presence of hallux valgus is considered a predisposing factor in the development of Morton's neuroma.[12]

Diagnostic Tests[edit | edit source]

  • Web space compression test (also known as the metatarsal squeeze test): The clinician grasps the medial and lateral aspects of the patient's forefoot and squeezes them with one hand while the other hand palpates the tender area. The aggravation of pain indicates a positive test.
  • Mulder's sign: a painful, palpable click[13] that occurs when pressing and rubbing a neuroma between the metatarsal heads
  • Digital nerve stretch test[14]: The clinician passively holds both ankles in full dorsiflexion while extending the posterior toes of the suspected web space. The test is positive if the patient complains of discomfort in the web space of the affected foot.

[15]

MRI of Morton's neuroma
X-ray of Morton's neuroma
Ultrasound of Morton's neuroma

Diagnostic Procedures[edit | edit source]

  • Ultrasound (US): high diagnostic accuracy. Proper diagnosis depends on the technique and experience of a person performing the test.[7][10]
  • Magnetic resonance imaging (MRI): the gold standard investigation to identify a neuroma.[12] Primary indications for MRI are unclear clinical assessment and cases when more than one intermetatarsal space (IMS) are affected.[7]
  • X-rays: essential as a first-line imaging approach to rule out tarsal–metatarsal joint stiffness, metatarsal hypermetria, Frieberg’s disease, toe deformities and metatarsophalangeal (MTP) instabilities.

Differential Diagnosis[edit | edit source]

The differential diagnosis includes the following conditions:[9]

Physiotherapy Management / Interventions[edit | edit source]

Footwear[edit | edit source]

Goal: to limit nerve compression in the early stages of Morton's neuroma.

Tools: patient education, footwear modification.

According to Colò et al.,[7] if an individual is more than 4.5 months post-diagnosis and the neuroma is larger than 5-6 mm, orthotics and/or shoe modifications are no longer effective for symptom management. At this stage, they offer a palliative solution to achieve an "acceptable life with pain."[7]

Patient Education[edit | edit source]

The patient should receive education on:

  • Avoiding narrow and high-heeled shoes
  • Staying compliant with footwear prescription
  • Activity modification[16]
Rocker sole shoe

Footwear Modification[edit | edit source]

The most appropriate footwear will have the following features:[7][17]

  • Sufficiently long[7]
  • Wide toe box[7]
  • Low heel[7]
  • Thick external sole, which should not be excessively flexible[7]
  • Metatarsal padding[17]
  • A rocker-bottom sole may be helpful[18]
Metatarsal pad

Orthotics[edit | edit source]

Goals:

  1. To displace pressure sites
  2. To provide pain relief
  • The most common orthotic provided initially is the metatarsal bar. It aims to:
    • Spread the heads of the metatarsals to relieve pressure
    • Improve symptoms
  • There is limited to no evidence of improvement in patient-reported outcomes with the use of inversion or eversion insoles (varus/valgus foot wedge).[12]
  • According to de Oliveira et al.,[19] a customised insole with metatarsal and arch support offers pain relief during ambulation and improves function.
  • Custom-made toe inserts modelled in silicone rubber can be added when a claw-toe deformity is present.[9]
  • Custom orthotics through foam impression methods. The foot is placed in a neutral subtalar position, with a prolonged longitudinal vault to support the first metatarsal (flat support). The goal is to mimic the physiological pattern of metatarsal weight bearing, from lateral to medial, before pressure moves to the big toe.[7]

Steroid Injections[edit | edit source]

Goal: to provide pain relief.

Steroid injections are fairly standard in the management of Morton's neuroma. The injection method varies: they can be guided by ultrasound or using a landmark technique.

  • A randomised controlled trial by Mahadevan et al.[20] found no statistical difference in patient outcomes after a steroid injection guided by ultrasound vs an injection not guided by ultrasound.
  • Choi et al.[21] demonstrated that there was a "satisfactory clinical outcome"[21] in terms of pain reduction in patients after corticosteroid injections, but 30% of patients eventually required surgery for pain management.
  • Lizano-Diez et al.[22] found no difference in pain and function in participants who received an injection of a corticosteroid plus a local anaesthetic versus those who received a local anaesthetic only.

Modality[edit | edit source]

Manipulation/Mobilisation[edit | edit source]

According to Cashley and Cochrane,[24] foot manipulation and mobilisation of the other foot and ankle joints can decrease foot pain in patients diagnosed with plantar digital neuralgia (Morton's neuroma). The authors recommend performing joint manipulation once a week for four weeks, followed by two more visits at 14-day intervals.[24]

Strengthening Exercises[edit | edit source]

According to Helene Simpson,[16] strengthening exercises for the toe flexors and the intrinsics can help with muscle activation during mid-stance of the gait cycle and prevent the metatarsal heads from dropping.

Other Treatment Options[edit | edit source]

Surgery is considered when conservative treatment fails, or the patient is no longer willing to adjust their lifestyle to manage symptoms of Morton's neuroma. The following operative and non-operative treatment options are available:

  • Surgical nerve excision (neurectomy)[25]
  • Surgical nerve decompression[26]
  • Ultrasound-guided percutaneous radiofrequency
  • Alcohol injection
  • Percutaneous electrostimulation-guided alcoholisation with phenol[9]
