Osteochondritis Dissecans of the Elbow


Definition/Description [edit | edit source]


Osteochondritis Dissecans (OCD) is defined as an inflammatory pathology of bone and cartilage. This can result in localized necrosis and fragmentation of bone and cartilage.

Arrow points to calcific flake in distal capitellum[1]

OCD of the elbow is most commonly seen in the sporting adolescent population (ages 12-14) in particular throwing sports or upper limb dominant sports such as baseball or hockey.[2][3] Hence the common term "Little league elbow".[4]

In the elbow, the most common area affected is the capitellum, although it has been reported to affect the olecranon and the trochlea.[5][3] OCD can mean one or more flakes of articular cartilage have become separated. Which form loose bodies within the joint. The separated flakes can then ossify due to nourishment by the synovial fluid.[6] The cartilage is damaged and can form a loose body.[7]


In the long term OCD can lead to subsequent degenerative arthritis or osteoarthritis.[2]

Clinically Relevant Anatomy[edit | edit source]

Involved anatomy of this disorder includes the radial head or the central and/or lateral aspect of the capitellum.

Most OCD lesions of the elbow involve the capitellum, typically the central or lateral portion, but also the radial head, the olecranon of the ulna and the trochlea humeri.[2]

Epidemiology / Aetiology[edit | edit source]

Ostechondritis of the humeral capitellum is secondary to repetitive compression forces between radial head and capitellum.

Repetitive high stress forces on the joint can result in a series of minor injuries on the elbow that can eventually lead to bony fragmentation and ultimately detachment of the bony fragment from the bone.[3]

Many factors are associated with the aetiology and development of avascular necrosis. They include the following components: genetics, anatomy, trauma, vascular, metabolic, haematogenous, endocrine, nutritional and inflammatory disorders.[8]

Commonly seen in the adolescent sporting population; who partake in repetitive throwing or overhead activities such as baseball and gymnastics.[7] More frequently seen in males (ages 10-14) than females and often affecting the dominant arm.[3][7]

Stages of osteochondritis dissecans:[5][edit | edit source]

Stage I[edit | edit source]

Thickening of cartilage and a stable lesion

Stage II[edit | edit source]

Articular cartilage interrupted and a stable lesion low signal rim behind fragment showing that there is fibrous attachment

Stage III[edit | edit source]

Articular cartilage interrupted, Unstable high signal changes behind fragment and underlying subchondral bone

Stage IV[edit | edit source]

Loose body Unstable

[9]

The cause of OCD is likely multi-factorial. Causes of this pathology normally include injury or repetitive stress on the joint, lack of blood supply, and/or genetic makeup[5].

Some other mechanisms that can contribute to the development of OCD are: trauma, ischaemia, disordered ossification and genetic abnormalities. However, these mechanisms are not universally accepted but may be a contributing factor.[2]

Vascular hypo perfusion and repeated micro-trauma may also contribute to the development of OCD. Capillary blood supply is often limited to 1 or 2 end vessels with limited collateral flow. This leads to vascular hypo perfusion.

Repeated micro-trauma could lead to a production of a relatively avascular state in the vulnerable immature capitellar chondroepiphysis.[2]

Characteristics/Clinical Presentation[edit | edit source]

Presentation includes[3] [10] :

  • Lateral Pain over the joint
  • Swelling of elbow
  • Stiffness
  • Feeling of instability
  • Stiffness after resting
  • Locking
  • Giving way
  • Popping/clicking
  • Reduced range of motion
  • Painful full elbow flexion or extension

Differential Diagnosis[edit | edit source]

If there is no radiological confirmation of Osteochondritis Dissecans, other diagnoses may include:

Diagnostic Procedures [edit | edit source]

Radiographs can detect any abnormalities on the surface of the joint. Radiographs and MRI can also confirm diagnosis, monitor progress and assess for potential surgical intervention.[11]

X-ray can show if the cartilage flake includes a piece of underlying bone.[5]

Magnetic Resonance Imaging (MRI) will show any accumulation of fluid in the area and can detect any loose fragments. MRI should be considered when symptomatic patients have a normal X-Ray.[12]

Computerised Tomography (CT) can detect any bony fragments, pinpoint their location and determine whether they have settled in the joint space.[13]

Ultrasonography is also used to assess OCD lesions [14]

Outcome Measures [edit | edit source]

An outcome measure appropriate for this injury is the DASH questionnaire which measures disabilities of the elbow, shoulder and hand as they relate to everyday function.[15][16]

Additional measures may be required in terms of return to sport, especially in professional level sport.

Examination[edit | edit source]

Subjective assessment[edit | edit source]

  • Complaints of aching post exercise or activity
  • Gradually worsening symptoms[3]
  • Reported crepitus or popping[17]
  • Increase in sport recently

Objective assessment[edit | edit source]

  • Swelling posterior-laterally[18]
  • Loss of full extension[3]
  • Lateral elbow joint pain
  • Positive response to valgus overload[3]
  • Crepitus or popping (indicating osteochondral defects)[17]
  • Positive radio-capitellar compression test: full extension with active pronation and supination. Positive test will reproduce lateral pain[2]


[19]

Management [edit | edit source]

OCD can be managed conservatively or surgically. Surgical management may be necessary if conservative care fails, if the lesion is Grade III or higher, or if disruption of the cartilage cap continues.[20]

Conservative management[edit | edit source]

  • Analgesia and NSAIDs
  • Bracing to offload the joint. In a hinged brace set to pain free range of movement (ROM)[3]
  • Ceasing sports or activities that aggravate symptoms for 6-12 weeks[3]
  • Activity modification
  • Physiotherapy

Conservative management may not always be successful even in Grade I lesions and should be re-assessed regularly.[21]

Surgical management[3][edit | edit source]

Arthroscopic surgery will aim to:

  • Assess the anterior elbow
  • Remove loose bodies and fragments
  • Debride any necrotic bone
  • Mirco-fracture the site to stimulate increased blood flow[22]

In some cases a large fragment may need to be re-attached to the capitellum which will be done via K wire or screw fixation.[3] In severe cases osteochondral grafting may be required.[23]

Physiotherapy Management[edit | edit source]

Conservative[edit | edit source]

The initial stage should be focused on advice, education and pain management. This can be through use of NSAIDs, activity modification, cessation of sports and/or bracing for 6-12 weeks.[3]

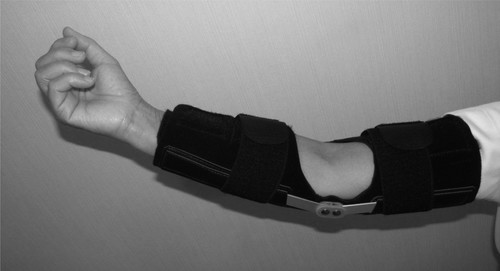

Hinged elbow brace[24]

A hinged brace can be used to help offload the joint and any valgus pressure. This can be set to any pain free ROM and gradually increased as swelling and symptoms decrease.[3]
When pain has settled, management would be to gradually introduce full ROM and strengthening exercises out of a painful range.

The patient can start return to play exercises as long as symptoms are not an issue.[3][24]

Post-operative[edit | edit source]

Initially post operatively the patient would likely be on a continuous passive movement machine until put in a hinge brace. Gentle circulation and residual joint ROM exercises can be started (fingers, wrist and shoulder). [3]

At three weeks post operatively ROM and gradual strengthening may be commenced however; this may vary depending on consultant preference. Some post operative protocols state no strengthening exercises until three months.[25]

Return to play will depend on sport and pain.[3][25] Athletes have the potential to return to their pre-injury level if motivation and compliance with rehabilitation allows.[22]

Complications [26][edit | edit source]

Resources[edit | edit source]

DASH Questionnaire

Osteochondritis Dissecans: Clinical manifestation and diagnosis

Clinical Bottom Line [edit | edit source]

Osteochondritis Dissecans is, in adolescent athletes, an increasingly common cause of elbow dysfunction and elbow pain.[2] It can eventually lead to osteoarthritis and other elbow pathologies if not treated. The mechanisms of injury can be multi-factorial but most common in the young sporting population.

OCD occurs when one or more flakes of articular cartilage separates and forms loose bodies within the joint. [2] The separated flakes remain alive and frequently ossify causing popping and crepitus.[3]

Main characteristics of the disease that are commonly mentioned are locking, giving away, stiffness and recurrent effusions. [3]

Examination can be done using the active radiocapitellar compression test, in case of lateral joint pain evocation the test is considered positive. [2] For medical management, the use of arthroscopic surgery is the main route of management to remove the bony fragments. [3] Physiotherapy post-operative management is fairly standard and will vary depending on consultant preference, however, conservative management mainly reports to avoid symptoms and aggravating activities until the bony fragments have healed.[3]
