Sporting Hand and Wrist - What to Consider When Measuring Range of Motion
Bony Anatomy[edit | edit source]

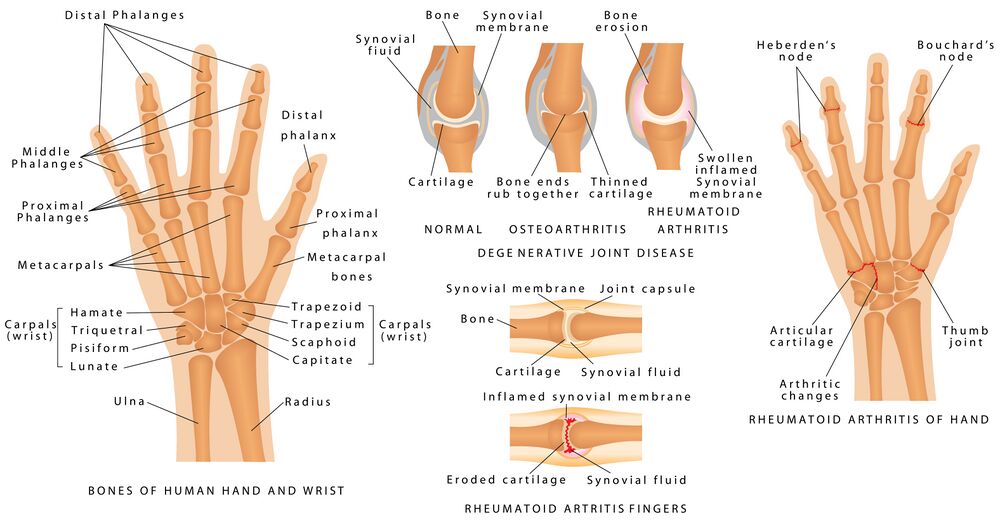

The carpus is formed from eight small bones collectively referred to as the carpal bones. The carpal bones are bound in two groups of four bones:
- the pisiform, triquetrum, lunate and scaphoid on the upper end of the wrist
- the hamate, capitate, trapezoid and trapezium on the lower side of the hand.
Other bones of the hand are:
- the metacarpals – the five bones that comprise the middle part of the hand
- the phalanges (singular phalanx) – the 14 narrow bones that make up the fingers of each hand. Each finger has three phalanges (the distal, middle, and proximal); the thumb has two.
The hand is divided into three regions
- The proximal region of the hand is the carpus (wrist)
- The middle region the metacarpus (palm)
- The distal region the phalanges (fingers)
The forearm consists of the radius and ulna and a complex and interrelated set of joints
- distal radioulnar joint
- proximal radioulnar joint
- soft tissue stabilizers between the 3 bones
- triangular fibrocartilage complex at the wrist (The crucial stabiliser)
- annular ligament at the elbow
- interosseous membrane in the forearm (load transmission from radius to ulna)
- palmar and dorsal radioulnar ligaments
This arrangement guarantees stability of the joint throughout pronation and supination
Disruptions in any of these structures may lead to forearm instability.
Joints in the Wrist and Hand[edit | edit source]
|Joint||Proximal articulation||Distal Articulation||Type||Movement|
|Radiocarpal joint||Radius and articular disc/ concave||Scaphoid, lunate, triquetrum / – convex||Ellipsoid||Flexion-extension; Abduction-adduction|
|Midcarpal joint||Scaphoid. Lunate, Triquetrum||Trapezium, Trapezoid, Capitate, Hamate||Gliding||Flexion-extension; Abduction-adduction|
|Carpometacarpal joint (thumb)||trapezium||1st metacarpal||Saddle||Flexion-extension; Abduction-adduction; circumduction; opposition|
|Carpometacarpal joint (fingers)||trapezoid, trapezium
|Metacarpophalangeal joints||Metacarpals||phalangeal||Ellipsoidal||Flexion, extension, abduction, adduction, circumduction|
|Interphalangeal||Proximal phalangeal||Distal phalangeal||Hinge||Flexion (lots) Extension (minimal)|
Table summarised from The Physiology of the Joints: Volume 1, The Upper Limb. 5th Ed.
Range of Motion in the Wrist and Hand[edit | edit source]
|Flexion||Flexor carpi radialis||0-80||Medial Epicondyle of humerus||2nd and 3rd metacarpals||Median nerve (C6,7)||60% midcarpal joint
40% radiocarpal joint
|Flexor carpi ulnaris||Medial epicondyle of humerus and sup.post. border of ulna||Pisiform, hamate and base 5th metacarpal||Ulnar nerve (C7,8)|
|Palmaris longus||Medial epicondyle of humerus||Flexor reinaculum and palmar aponeurosis||Median nerve (C8)|
|Flexor digitorum superficialis||Medial epicondyle of humerus, coronoid process of
ulna, and a ridge along lateral margin of anterior surface of radius
|Middle phalanges of each finger||Median nerve (C7,8 T1)|
|Flexor digitorum profundus||Anterior medial surface of body of ulna||Base of distal phalanx of thumb||Median nerve (C7,8, T1)
Ulnar nerve (C8, T1)
|Flexor pollicis longus||Anterior surface of radius and interosseous membrane||Base of distal phalanx of thumb||Median nerve (C8, T1)|
|Extension||Extensor carpi radialis longus||0-70||Lateral supracondylar ridge of humerus||2nd metacarpal||Radial nerve (C6,7)||40% midcarpal joint
60% radiocarpal joint
|Extensor carpi radialis brevis||Lateral epicondyle of humerus||Distal and middle phalanges of each finger||Radial nerve (C6,7)|
|Extensor carpi ulnaris||Lateral epicondyle of humerus and posterior border of ulna||5th metacarpal||Radial nerve (C7,8)|
|Extensor digitorum||Lateral epicondyle of humerus||Distal and middle phalanges of each finger||Radial nerve (C7,8)|
|Extensor indicis||Posterior surface of ulna||Tendon of extensor digitorum of index finger||Radial nerve (C7, 8)|
|Extensor digiti minimi||Lateral epicondyle of humerus||Tendon of extensor digitorum on 5th phalanx||Radial nerve (C7,8)|
|Extensor pollicis longus||Posterior surface of middle of radius and ulna and interosseous membrane||1st metacarpal||Radial nerve (C7,8)|
|Extensor pollicis brevis||Posterior surface of middle of radius||Base of proximal phalanx of thumb||Radial nerve (C7,8)|
|Radial deviation||Flexor carpi radialias||10-20||Medial Epicondyle of humerus||2nd and 3rd metacarpals||Median nerve (C6,7)||Radiocarpal Jt|
|Ulnar deviation||Flexor carpi ulnaris||30-40||Medial epicondyle of humerus and sup.post. border of ulna||Pisiform, hamate and base 5th metacarpal||Ulnar nerve (C7,8)||Radiocarpal Jt|
|Supinator||60||Lateral epicondyle of humerus and ridge near radial notch of ulna||Lateral surface of proximal one-third of radius||Radial nerve (C5,6)||Sup. and inf.radioulnar jt|
|Biceps brachii||Long head - supraglenoid tubercle; Short head - coracoid process of scapula||Radial tuberosity and bicipital aponeurosis||Musculocutaneous nerve (C5,6)|
|Brachioradialis||Medial and lateral borders of distal end of humerus||Superior to styloid process of radius||Radial Nerve (C5,6)|
|Pronator teres||40||Medial epicondyle of humerus and coronoid process of ulna||Midlateral surface of radius||Median nerve (C6,7)||Sup.and inf.radioulnar jt|
|Pronator quadratus||Distal portion of shaft of ulna||Distal portion of shaft of radius||Median nerve (C8, T1)|
|Brachioradialis||Medial and lateral borders of distal end of humerus||Superior to styloid process of radius||Radial nerve (C5,6)|
Table summarised from Anatomy and Human Movement: Structure and Function. 6th Ed.
Tools Used to Measure the Range of Motion in the Wrist and Hand[edit | edit source]
|Pros||Compact, easy to use and portable||Accurate and measures multiple planes||Accurate, measures multiple planes, free downloadable app, convenient|
|Limitations||Only one plane of movement||Bulky and expensive|
Reason to Measure[edit | edit source]
The main reason to measure is that you have an accurate baseline to base your rehab and progression on.
Considerations When Measuring Wrist Flexion and Extension[edit | edit source]
1. Coupling[edit | edit source]
Coupling occurs in the wrist while performing flexion–extension and radial–ulnar deviation movements. Maximal wrist range of motion is near the neutral position. The wrist should be placed at a neutral position in work station design to account for the naturally coupled wrist motion.

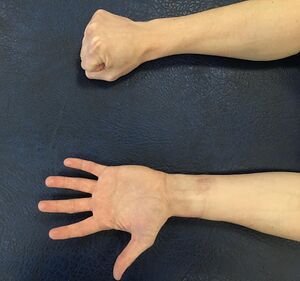

2. Open versus closed hand[edit | edit source]
- Open hand = joint
- Closed hand = soft tissue
- Open hand = soft tissue
- Closed hand = joint
