Scleroderma Case Study

Author/s[edit | edit source]

Catelin Infante, Jessica Frederick, Kristin Casagrand, Jarrod Smith from the Bellarmine University Physical Therapy Program's Pathophysiology of Complex Patient Problems Project.

Patient Characteristics[edit | edit source]

  • Demographic Information: (occupation/vocation, gender, age, etc.)[1]

Native American


Born and raised in Oklahoma

Works in a factory

Thirty-five years old

Family history of rheumatoid arthritis on mother's side

  • Medical diagnosis if applicable


  • Co-morbidities

Hypertension, Type II Diabetes

  • Previous care or treatment

Previous physical therapy for low back pain

Examination[edit | edit source]

  • Subjective

Ms. Johansson comes into the clinic complaining of joint pain and muscle weakness, especially in her hands, hips and shoulders[2]. She explains that she has been having trouble making it through a full day of work because her body feels limited and she just cannot reach as well for boxes at her job because "her arms won't go up that far". She also has noticed that she gets out of breath and sometimes has chest pain when she lifts a lot too quickly[1]. Ms. Johansson indicates that her fingers often feel very swollen and stiff and sometimes feel "stuck" in a bent position[2]. She reports that for several months she has been getting a really cold, numb feeling in her fingers throughout the day, especially when she is sitting in the air conditioning at her office[3]. Overall, she has just not felt well for the past few months either. When she eats, she has trouble fully opening her mouth to put food in[1]. Then, when she lies down at night after dinner, she gets a feeling of heartburn and sometimes feels she has to vomit[2]. However, she says she has been eating poorly lately, so it's probably her fault she hasn't felt well. Additionally, Ms. Johansson reports losing 20 pounds in the past month without any lifestyle changes. Her goals for therapy are to decrease her joint pain and to get her muscles stronger so she doesn't struggle at work any longer. Her focus is on getting her hands and arms "back to normal" because they are what she uses most in her job.

  • Self-Report Outcome Measures

Health Assessment Questionnaire Disability Index (HAQ-DI)[4]: 1.1

Disabilities of Arm, Shoulder, and Hand Questionnaire (DASH)[5]: 48%

Verbal Pain Intensity Scale: "Severe pain"

  • Physical Performance Measures
    Measurement of oral aperture (9)

Grip strength (R)[6]: 20.7 kg

Grip strength (L)[6]: 19.18 kg

Pinch strength (R)[6]: 4.27 kg

Pinch strength (L)[6]: 3.98 kg

Oral aperture[7]: 28 mm

Measurement of oral aperture (9)

Measurement of Oral Aperture[8]

  • Objective

MMT: WNL except for the following

4/5 finger and thumb abduction, adduction, flexion, extension

4/5 wrist flexion and extension

3+/5 shoulder flexion and abduction

3+/5 hip flexion and abduction

ROM: WNL except for the following

Decreased flexion and extension in all finger MCP and IP joints

Decreased wrist flexion and extension

Decreased hip extension and abduction

Reflexes: WNL

Sensation: Decreased facial sensation

  • ICF Findings


Patient has stiffening around fingers and what appears to be finger flexion contractures developing

Patient has noticeable hard deposits palpated around UE joints

Patient has slurred speech due to difficulty fully opening mouth. The skin around the face is thickened and has begun to cause puckering

Pt has dyspnea and chest pain upon exertion

Activity Limitations[1],[2],[9]

Patient is unable to complete activities in supine secondary to reflux symptoms

Patient is unable to complete overhead activities due to decreased shoulder ROM

Patient is unable to complete more than 30 minutes of repetitive movements due to fatigue, muscle weakness and joint pain

Environmental Factors[9]

Patient is employed as a packer at a plastics company

Patient is a smoker of 20 years

Clinical Impression[edit | edit source]

  • After Ms. Smith's assessment, we have determined that she has decreased range of motion in her fingers and wrists, decreased cardiovascular endurance, decreased muscle mobility, as well as increased muscle weakness and fatigue. All of these impairments have impacted her functional ability to do activities at home and in the work place. Physical therapy could benefit Ms. Smith by improving her impairments that were found and by providing patient education on management of her condition. The interventions during PT would include active joint range of motion, strengthening exercises and aerobic exercises to improve endurance, as well as education on a home exercise program and management of the symptoms of her condition. With the help of physical therapy, Ms. Smith would likely be able to reach her goals for improving her strength and endurance and decreasing her joint pain so that she can particpate in more activities at home, work and in the community.

Summarization of Examination Findings[edit | edit source]

Targeted intervention for Physical therapy for this patient would be improving available range of motion, joint protection and preservation along with patient education.

Based on Evaluation and examination information patient should be educated on proper protection of affected joints with education on temperature monitoring to reduce symptoms. Light range of motion should be built in to the intervention in a safe manor to preserve range that will progress to light strengthening of affected joint as long as joint integrity is not in jeopardy.

Intervention[edit | edit source]

  • Phases of Interventions

Edematous Stage:

Patient Education (About the disease; treatment of Raynaud's disease - dress in layers, monitor temperature changes, avoid air conditioning if possible, avoid things that cause vasoconstriction like smoking, cold temperatures and emotional stress)[10],[11]

Orthotic and adaptive equipment needs[11],[12]

Light range of motion exercises[11],[12],[13]

Joint protection strategies (light weight splints)[10]

Fatigue management (Four P's of energy conservation - prioritize, plan activities, pace activities and promote correct posture through proper body mechanics)[11]

Sclerotic Stage:

Paraffin/heat modalities for hands and fingers (vascular system may be affected with this condition, so the patient might have a higher risk for burns)[11],[12],[13],[14]

Passive range of motion exercises progressing to active-assisted range of motion, then to active range of motion, can add a sustained stretch for five seconds at end range (finger flexion/extension and abduction/adduction, wrist flexion/extension - can use hand clasp with wrist extension stretch)[2],[10],[11],[12],[13]

Finger abduction copy.jpg


Soft tissue mobilizations[13],[14]

Joint manipulations (Traction)[11],[12],[13],[14]

Joint manips.jpg


Kabat's method to improve mouth opening (activation of orbicularis oris, zygomaticus, levator labii, nasalis, frontalis and corrugator muscles by exaggerated facial movements) - progress from active-assisted ROM to active ROM[11],[13],[14]

Mouth exercises1.jpg


Soft tissue massage[13],[14]

Aquatic therapy (Upper and lower extremity range of motion and strengthening exercises, walking, squatting, marching, etc)[10],[14]

Cycle ergometer[12]

Resistive training[12],[13]

  • Dosage and Parameters

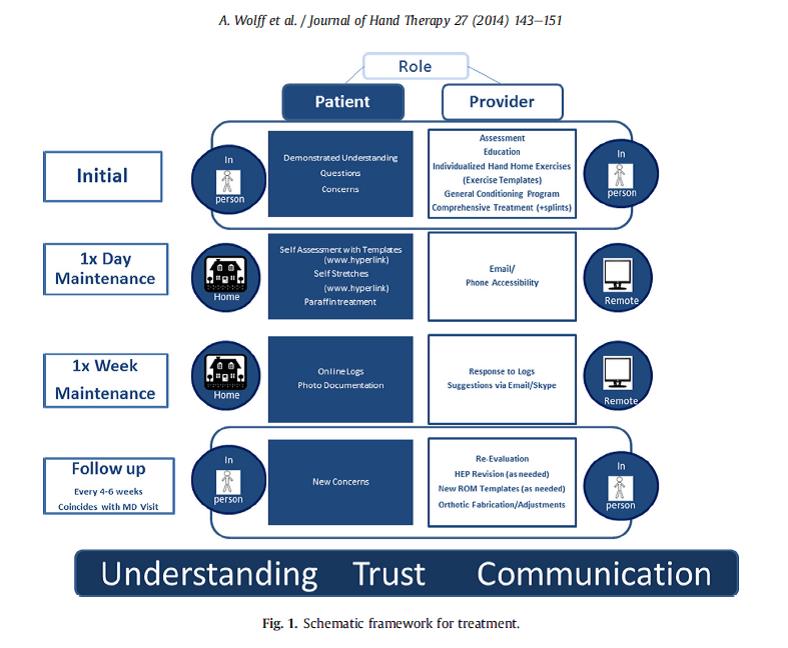

SMART framework - combines physical therapy sessions with self-management of care through a home exercise program. The PT session focuses on designing an individualized program for each patient in order to treat their specific impairments and goals. The sessions are planned less frequently during the week, but spaced out over a longer period of time. This is to help shift the focus of the care to self-managed that way the patient can manage their condition for the long-term. The HEP uses exercises, self-stretches and paraffin to help the patient manage their condition at home. The patient is given 4-5 exercises that are performed 1-2 times per day, for 5 days per week.[12]



Each physical therapy session is specific for each individual because of the varying presentation of scleroderma. The physician should be consulted frequently about the proper treatment for each patient.[12],[13],[14]

  • Rationale for Progression

As the same for the dosage and parameters, each individual has a different presentation of scleroderma and the associated symptoms and impairments.[12][13],[14] Each individual should progress through their rehabilitation according to their reaction to the exercises. Each should be monitored closely, especially with the aerobic exercise, and progressed in a safe manner according to their bodies' response to exercise. The physical therapist must also consider the phase of the disease that the patient is in and their progression through the disease phases.

  • Co-interventions if applicable

Occupational Therapy

Joint preservation principles[2]

Devices for independent living[2]


Disease modifying drugs (Penicillamine) - treatment of disease processes[10]

ACE inhibitors - treatment of acute hypertension/pulmonary hypertension and renal complications[10]

Nonsteroidal anti-inflammatory drugs (NSAIDs) - treatment of joint inflammation[10]

Antibiotics/Oral Tetracyclines (Minocycline, doxycycline) - treatment for disease by reduction of pain, severity of condition and quality of life[10]

Analgesics - treatment of pain[10]

Prazosin, Ilioprost and Cisaprost for Raynaud's Level A[2]

Methotrexate and Calcium channel blockers - treatment of Raynaud's Level B[2],[10]

Immunosuppressants - treatment during the acute phase of the disease[10]

Outcomes[edit | edit source]

Miss Smith participated in a successful physical therapy plan of care related to her medical diagnosis of systemic scleroderma. Miss Smith was able to articulate her understanding of the disease progression of scleroderma, including the different stages of the condition. She was also able to explain to her physical therapist what activities should be performed in each stage, which is an excellent way to ensure patient understanding. The completion of a variety of range of motion activities adapted for Miss Smith's current needs encouraged increased ROM of her hands and wrists along with resistance exercises to increase the strength of her hand intrinsics served to decrease Miss Smith's perceived level of difficulty in completing her ADL's. Aquatic therapy was utilized in a variety of methods. Its greatest impact was seen in Miss Smith's aerobic capacity, which increased and allowed her to become more active at home and in the community.[11][12][13][14]

Due to the progressive nature of scleroderma, it was very important for Miss Smith to understand how physical therapy will be important to maintain her abilities to perform ADLs and remain active in the community. She verbally acknowledged that she will need to continue to monitor her condition, and to continue her physical therapy exercises and activities after discharge. Miss Smith was educated on how changes in her symptoms (including decreasing range of motion, strength, and increasing levels of fatigue) may indicate the need for a re-evaluation by her physical therapist to continue to promote her current levels of independence[11].

Discussion[edit | edit source]

Despite the low levels of prevalence of scleroderma, additional research is needed related to the physical therapy portion of treatment.[2]As scleroderma is a systemic disorder, it is imperitive that these patients receive interdiscipliary care with consistent communication between healthcare providers. Current literature suggests that specific range of motion activities, resistance exercises, and cardiovascular activities may increase a patient's quality of life and decrease functional limitations in their daily life. However, many of these studies consist of a limited pool of subjects, additional research will help to further develop an evidence based model for physical therapy treatment of scleroderma.[11][12][13][14]
