Physiology and Biomechanics of the Temporomandibular Joint

Original Editor - Jess Bell based on the course by Victoria Reboredo
Top Contributors - Jess Bell

Introduction[edit | edit source]

Figure 1. TMJ - jaw closed.

The temporomandibular joint (TMJ) is a synovial joint that is made up of the articulating surface of the temporal bone and the head of the mandible (Figure 1 and 2).[1] Dysfunction of the TMJ is considered the most common cause of orofacial pain.[2] The joint itself is also associated with a number of important functions including eating[3], speaking,[4] breathing[5] and sleeping.[6]

Temporomandibular Joint Biomechanics[edit | edit source]

The TMJ is a ginglymoarthrodial joint[7] that allows for rotation and translation in the sagittal plane.[8][9]

It has four articular surfaces:[8]

  • Mandible condyle
  • Temporal fossa
  • Inferior and superior surfaces of the articular disc
    • The superior surface faces the temporal fossa
    • The inferior surface is in contact with the mandible condyle

The situation of the condyle inside the joint is a controversial subject. The so-called “central position” is a theoretical concept. The jaw is suspended, supported by the muscles and other stabilising elements, such as ligaments and the articular capsule.[8] For more information on the anatomy of the TMJ, please click here.

Maintenance of Jaw Position[edit | edit source]

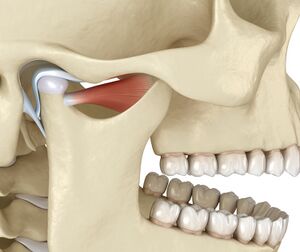

Figure 2. TMJ - jaw open.

The maintenance of jaw position depends on mandible reflexes and the action of gravity. It is also affected by an individual’s position / posture and specific variations which allow functional jaw movements to occur.[8]

When the mandible is at rest, the mouth is slightly open, so that the teeth are not in contact.[10] This resting position is called physiological non-occlusion:[8][11]

  • In this position, the lips close the oral cavity without pressure - the teeth remain separated by a distance of around 2 mm - this distance is measured between the superior and inferior incisors[8]
  • This resting position is maintained by various reflexes (e.g. the jaw jerk reflex[12]), as well as active and passive mechanisms.
    • Passive mechanisms:[8]
    • Active mechanisms:[8]
      • Peripheral afferents including:
        • Muscle and articular proprioceptors
        • Periodontal mechanoreceptors and mechanoreceptors of the mucosa (i.e. gums, lips, tongue, palatal area)
      • Central control from the:
        • Cortico-visual system
        • Limbic system
        • Fusimotor-extrapyramidal system

The limbic and visual systems are not only actively involved in maintaining the position of the jaw, they also have an impact on the tone of the masticatory muscles. For instance, situations that cause emotional stress[13][14] or visual alterations[15] can change the tone of the jaw muscles and affect jaw position.[8]

[16]

Mastication[edit | edit source]

Mastication marks the beginning of the digestive process. It is an essential step in the oral processing of food before deglutition (i.e. swallowing).[8][17]

The process of mastication is controlled by the central pattern generator in the brainstem and other phases of swallowing.[18] It occurs in the mouth with the help of the mandible and associated muscles.[8]

For mastication to occur, a range of information from sensory receptors (smell, taste and touch) is required,[3] as well as information from the tongue, palate, lips, masseter muscles and salivary glands.[8]

A change in one or more of these elements can cause issues with mastication.[8]

Huckabee and Daniels divide mastication into four phases:[3]

  • Pre-oral (anticipatory) phase:
    • This phase “is the interaction of pre-oral motor, cognitive, pyschosocial and somataesthetic elements which begin the swallowing process”[3]
    • Information about the food, which is obtained via the optic and olfactory nerves, is interpreted in the central nervous system and a swallowing plan is developed[3]
    • This information includes smell and specific routines that show the feeding act is about to begin[8][3]
    • The orofacial structures start to prepare to receive food - e.g. the taste buds begin generating saliva[8]

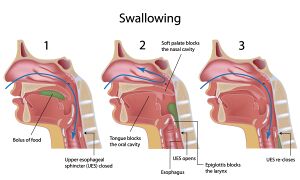

  • Figure 2. Swallowing.
    Oral phase:
    • The oral phase starts when food enters the mouth[8]
    • The lips close and and the tongue forms a seal to prevent the food (which is being transformed into a bolus) from falling out of the mouth
    • The bolus is formed through the movement of the lips, jaw, cheeks and tongue[3] - i.e.the food is cut, split and ground up
      • Saliva changes the viscosity of the bolus[8]
    • Once the bolus is safe to be swallowed, it is pushed backwards by the tongue to the pharynx[3]

It has been found that the mastication process and the formation of the bolus is influenced by the physical characteristics of the food.[18][19] A study by Mishellany and colleagues found that individuals tend to achieve a similar bolus particle size, but that the amount of time and number of cycles to achieve this result varies between individuals. Thus, it appears that the size and distribution of the particles of the food influence the deglutition reflex.[20]

The oral phase can be affected by pathology of the TMJ. For some patients with TMJ dysfunction, it will be difficult for them to open their mouths. This will cause issues with mastication and, therefore, the overall digestive process.[8]

  • Pharyngeal phase (see Figure 2):[3]
    • The pharyngeal phase refers to the movement of the bolus through the pharynx
    • During this phase, the airway is also protected from the bolus
    • The bolus moves from the base of the tongue to the wall of the posterior pharynx
  • Oesophageal phase:
    • This phase begins once the bolus passes through the upper oesophageal sphincter[8]
    • Peristalsis pushes the bolus down to the stomach via the lower oesophageal sphincter[3]

[21]

Speaking[edit | edit source]

Speaking is a complex, dynamic sensorimotor activity. It has been found that there is a connection between the intra-oral information and the oral and cervical muscles.[4]

  • Torisu and colleagues found, for instance, that intra-oral stimulation can inhibit neck muscle activity:[4]
    • This indicates that there is a neural connection between the trigeminal region and the cervical region
    • While this modulation might be largely due to nociceptive afferent nerves, non-nociceptive fibres may also be involved
    • As the authors note, this connection is significant because it may suggest that orofacial pain can affect head, neck and shoulder activity[4]

Breathing[edit | edit source]

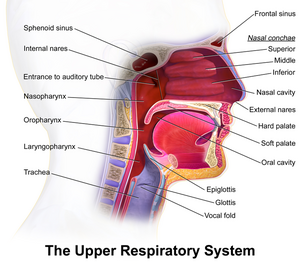

Figure 3. Upper respiratory system.

Because breathing occurs simultaneously with all other oral activities, the respiratory pattern must be coordinated with the other functions that occur in the mouth / oral cavity (e.g. eating).[8]

The upper airways begin at the nasal cavity, before moving to the nasopharynx and oropharynx, down to the larynx and to the extra-thoracic trachea (see Figure 3).[22] When we breathe, air can enter through the nose or the mouth, but it always passes through the pharynx[5] - during swallowing, the pharynx is used as a passage for food. In healthy individuals, swallowing is dominant to respiration.[5] Breathing stops briefly when an individual is swallowing. This is caused by:[5]

  • The physical closure of the airway by the lifting of the soft palate and tilting of the epiglottis (see Figure 2)
  • Neural suppression of respiration by the brainstem

In the resting phase, air can enter via the nasal or oral cavity, generating two different respiratory pattern options. These patterns need to coordinate with the rest of the oral cavity's physiological functions. When the oral cavity is used for breathing, a degree of jaw opening is necessary. In order to achieve this, tone in the elevator muscles decreases, which allows air to circulate.[8]

Movements of the Temporomandibular Joint[edit | edit source]

Jaw Opening[edit | edit source]

Jaw opening is divided into the following phases:[8][23][24]

  1. Pure rotation of the condyles on their axis
    • Most of this movement happens in the infra-meniscal space of the condylo-discal complex
    • This is facilitated by the lateral pterygoid muscle (inferior part), mylohyoid, geniohyoid and digastric muscles
  2. Translation of the condylo-disc complex forwards
    • This movement happens mainly in the superior compartment of the disc-temporal complex
      • The jaw opens around 40 to 50 mm
      • The temporomandibular ligament helps to maintain stability to prevent the jaw dislocating forwards
      • The lateral pterygoid muscle is involved in this action
        • NB: The lateral pterygoid has opposite functions - while its superior fascicle relaxes during opening, stabilising the anterior displacement of the disc, the inferior fascicle contracts and allows movement of the condyle
  3. The ligaments create stability at the end of the movement
    • The disc and condyles move medially and the collateral lateral ligaments on each side of the TMJ tighten
    • At a certain point, the condylo-discal complex is unable to move any further due to the tension in the ligaments and the joint capsule - at this point, it rotates on its own axis

Jaw Closing[edit | edit source]

Jaw closure is associated with cervical extension. The elevator muscles of the jaw work against gravity. Closing of the jaw is divided into three phases:[8]

  1. Condylar rotation in the inferior posterior meniscus area - this is similar to jaw opening, but in the opposite direction
    • This phase starts without any specific muscle action - rather it occurs due to the relaxation of the muscles involved in opening and the release of tension within the ligaments
  2. Translation of the superior condylo-disc meniscal area
    • The complex made by the condyle and disc moves to the most posterior and superior part of the mandibular fossa
  3. When the condyle has reached this point, there is a rotation in the posterior direction of the condyle in the intra-meniscal space - this ends with occlusal contact (NB occlusion refers to the relationship between the upper and lower teeth when the jaw closes[25])

In normal conditions, a slight lateral displacement of condyles can be observed in a sagittal view.[8]

Protraction[edit | edit source]

Protraction occurs when the jaw moves forwards:[8]

  1. The jaw is slightly opened to avoid any interference from the teeth (i.e. occlusion) - this opening causes anterior rotation in the sagittal plane
  2. The condyle translates forwards and downwards - this is due to the disposition of the condylar fossa, which makes the condyle move down

This movement occurs due to the coordinated action of both fascicles of the pterygoid muscles. As jaw opening does not progress in protraction, the jaw is stabilised by the contraction of the temporalis muscles.[8]

Retraction[edit | edit source]

Retraction is the reverse of protraction:[8]

  1. The condyle translates backwards and upwards inside the articular fossa - this movement is activated by the temporalis muscle and the posterior belly of the digastric muscle
  2. Finally there is a posterior rotation of the condyle at the intra-meniscal level (i.e. the condylo-disc complex)[8]

[26]

Lateral Movements[edit | edit source]

The condyles work together to achieve lateral movements of the jaw. When assessing lateral movement, it is necessary to differentiate one condyle from the other:

  • The "working side" is the side that moves laterally when taking the chin as a reference
  • The "non-working side" is the side that moves towards the midline

In the working side, there is a rotation of the condyle over its own vertical axis, and a transversal displacement of about 0.9 mm. This movement is caused by the deep masseter muscle and the medial and posterior fascicles of the temporalis muscle.[8]

In the non working side, the condyle moves to the midline, going forwards and moving closer to the midline. It also moves transversally around 0.4 mm. In this case, the muscles activated are the lateral pterygoid (inferior fascicle) and the medial pterygoid.[8]
