Madelung's Deformity

Original Editor - Shwe Shwe U Marma Top Contributors -

Introduction[edit | edit source]

Madelung’s deformity is a condition of the wrist characterized by a shortened distal radius with volar–ulnar curvature and a dorsally prominent distal ulna.[1]

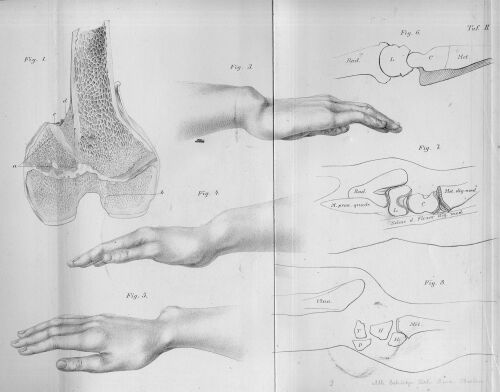

Madelung's deformity

A Vickers’ ligament is the feature to differentiate Madelung’s deformity from Madelung-like deformities.[2]

Epidemiology[edit | edit source]

Predominantly adolescent females are affected by a ratio of 4:1. The deformity is bilateral most often.[3]

Clinical Features[edit | edit source]

  • Initially asymptomatic, progressive clinical deformity
  • Pain at wrist
  • Loss of wrist extension
  • Compromised forearm rotation
  • “Bayonet” deformity- prominent distal ulna as a result of dorsal subluxation[4]
  • Girls are more often affected than boys
  • Presents between the ages of 6 and 13 years[5]

Pathogenesis[edit | edit source]

Premature growth plate arrest at the medial volar aspect of the distal radius causes Madelung deformity. Repetitive traumatic pressure may result in Madelung-like deformity. Mutation or absence of the short stature homeobox (SHOX) gene is thought to be the cause of congenital Madelung deformity.

Congenital Madelung deformity can occur as a part of Leri-Weill dyschondrosteosis (LWD) or Turner syndrome.[6]

Diagnosis[edit | edit source]

Key Features from X-Ray[edit | edit source]

  • increased dorsal and radial convexity of the distal radius
  • increased volar and ulnar tilt of the distal radial articular surface
  • widened interosseous space
  • relative dorsal position of the ulnar head
  • pyramiding of the carpus[3]

MRI[edit | edit source]

MRI is done on the patients who need the surgical release of Vickers’ ligament to prevent deformity progression.[5]

Differential Diagnosis[edit | edit source]

  • Turner syndrome
  • Nail-patella syndrome
  • Hereditary, multiple exostoses
  • Ollier’s disease
  • Achondroplasia
  • Multiple epiphyseal dysplasias
  • Mucopolysaccharidoses (Hurler and Morquio syndrome)[7]

Treatment[edit | edit source]

Conservative Management[edit | edit source]

Conservative management of Madelung’s deformity may be helpful for skeletally mature patients with the following measures:

  • Physiotherapy
    • to reduce pain
      • Icing
      • Cold whirlpool immersion
      • Transcutaneous electrical nerve stimulation
    • limited pronation and supination suggests the need of exercise to help maintaining and/or increasing the power of involved muscles, i.e.- pronators and supinators[8]
  • oral analgesics
  • activity restriction
  • volar splint[9]

Surgical Management[edit | edit source]

  • Radial or ulnar osteotomy
  • Vickers’ ligament resection
  • Ulnar epiphysiodesis[10]
