Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) in Prosthetics and Orthotics
Introduction[edit | edit source]
The field of prosthetics and orthotics (P&O) utilises a wide variety of methods to provide custom devices to patients. Similar to how thermoplastics revolutionised a field mostly grounded in wood carving, leatherwork, and metal bending, digitisation introduced a new strategy for fabrication.
Computer-aided design and computer-aided manufacturing (CAD/CAM) is an umbrella term for many technologies that use computer software to design and manufacture both prototypes and definitive devices. In P&O, CAD/CAM technologies include:
- 3D scanners
- 3D visualisation softwares
- CAD software
- Slicing software
- 3D carvers or subtractive manufacturing (SM)
- 3D printers or additive manufacturing (AM)
History[edit | edit source]
CAD/CAM was introduced to P&O over three decades ago. One of the first reports of CAD/CAM, published in 1985, described a “software package” for the manufacture of transtibial sockets. The second author of this publication went on to develop Vorum, the first and longest-standing CAD/CAM company dedicated to P&O. Vorum was initially focused on 3D carvers, which uses a milling machine to carve a foam block based on a CAD drawing.
The first attempts of 3D printing in a P&O-specific application were reported in the early 1990s, about a decade after the first published patent of any 3D printing technology. These studies described the fabrication of transtibial socket using stereolithography (SLA), and fused deposition modelling (FDM) with the Squirt-Shape™ printer.
The prevalence of CAD/CAM technologies in P&O has grown over the past decades with the advent of new scanners, modification softwares, 3D carvers, 3D printers, and printing materials. Though many view 3D scanning and printing as a way to reduce costs and increase access to P&O devices, CAD/CAM is not always synonymous with lower cost.
Current literature indicates a steady increase in adoption of CAD/CAM technologies, but not to the point of overtaking traditional methods. A 2021 study indicates increased interest in CAD/CAM from both developed and developing countries. However, developing countries have faced challenges in adoption such as accessibility, resources, qualified practitioners, and gaps in knowledge. In the United States, the 2022 Practice Analysis indicates that 30% of prostheses incorporate CAD/CAM, increasing from 23% in the 2015 study. Relative to prostheses, orthoses made with CAD/CAM are entering the field more slowly. However, they show promise as far as comfort, biomechanical benefits, and optimised material properties.
Current Applications[edit | edit source]
Currently, CAD/CAM technologies are used in the fabrication of all kinds of diagnostic and definitive devices, including:
- Lower limb prostheses
- Upper limb prostheses
- Custom prosthetic covers
- Lower limb orthoses
- Upper limb orthoses
- Scoliosis braces
- Other spinal orthoses
- Cranial remolding orthoses (CROs)
Process[edit | edit source]
The process for creating a prosthesis or orthosis with CAD/CAM can be broken into three parts:
- Shape capture

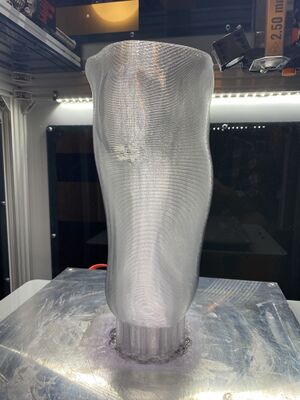

For a practitioner to incorporate CAD/CAM into their practice, they do not have to use all three parts of the process. For example, a prosthetist may fit a 3D printed diagnostic socket made from a scan of a modified plaster model. An orthotist or technician may pull plastic (using traditional methods) over a carved foam model for a scoliosis brace.
Shape Capture[edit | edit source]
Several types of scanners can be used to capture an impression of a patient’s limb or anatomical feature. Two commonly used technologies in P&O are:
Some are used independently as a handheld or stationary scanner, and some work in conjunction with an iPhone, iPad, or other device.
Rectification[edit | edit source]
In order for a scan to be turned into a printable prosthesis or orthosis, it must be modified using CAD software. While there are P&O-specific programs for digital modifications, some use other design programs such as Autodesk Meshmixer, Autodesk Fusion 360, Dassault Systemes SolidWorks, etc.
There are several platforms for performing modifications, including:
- Design suites purchased through a subscription
- Cloud-based software through an internet browser
- A phone or tablet app
Before sending a modified scan to print or carve, the file must be prepared for the specific manufacturing technology. For 3D printing, this process is usually called “slicing.” This can sometimes be performed in the same CAD program for modifications, but generally the design file is saved as a .stl or .obj file and imported to a separate slicing software.
Fabrication[edit | edit source]
There are many different 3D printing technologies, but three are predominantly used in P&O:
- Fused deposition modelling (FDM)
- Selective laser sintering (SLS)
- Powder bed and inkjet head 3D printing (3DP)
The selected printer, print properties and material determine ultimate properties of the prosthesis and orthosis.
Clinical Impact[edit | edit source]
In a survey of 250 P&O practitioners internationally, 97% report that adopting CAD/CAM positively impacts patient care and outcomes. However, 98% report that CAD/CAM is not yet well understood by P&O clinicians. It is difficult to identify the clinical impact of CAD/CAM with the current lack of standardization and established workflow.
Efficiency[edit | edit source]
Studies indicate that a digital workflow has the potential to improve fabrication efficiency. One advantage is the ability to save an impression or mold on a computer vs. store within a fabrication lab. This allows duplication of devices and fast comparison between scans (such as a patient’s residual limb one year post-amputation vs. three months post-amputation).
Lower Limb Prostheses[edit | edit source]
For clinicians hesitant to incorporate 3D printed lower limb prostheses, they often question the overall strength and durability of 3D printed parts for lower limb prostheses.According to a systematic review, it is currently impossible to directly compare the strength of a 3D printed socket to a traditional carbon laminated socket with existing testing methods. However, the strength of 3D printed sockets shows promise for use in definitive prostheses. Recommended design strategies to increase strength include reinforcing the distal end and/or using composite filaments.
Some groups are trying to use CAD and 3D printing to improve access to P&O worldwide. One group defined a method to provide 3D printed prostheses to patients in Sierra Leone in order to address an unmet global health need. A different group cites 3D printing as a way to incorporate low cost materials and rapid prototyping to increase access to prostheses.
Upper Limb Prostheses[edit | edit source]
Most of the research analysing CAD/CAM for upper limb (UL) prostheses has focused on paediatrics. 75% of the prostheses developed for children were made using FDM. A review of 3D printed UL prostheses reported that evidence regarding durability, functionality and user acceptance is lacking.
Lower Limb Orthoses[edit | edit source]
One study found that ankle-foot-orthoses (AFOs) produced with AM are comparable to traditional AFOs in terms of spatio-temporal parameters. The review notes that only one of eleven studies conducted durability testing, and that sample sizes and study quality were generally low.
3D scanning and AM have gained popularity particularly in the production of foot orthoses. A systematic review by Daryabor et al. reports that foot orthoses may improve comfort and biomechanics for those with flat feet, but indicates no statistical difference to those made with traditional methods.
Upper Limb Orthoses[edit | edit source]
Custom 3D printed orthoses show promise for stabilising the upper limb for those with musculoskeletal conditions. Advantages in this area include improved aesthetics and the ability to create lightweight, well-ventilated orthoses. Current barriers to implementation are lack of training, skill, and high upfront costs for clinicians providing UL orthoses.
Spinal Orthoses/Scoliosis Braces[edit | edit source]
CAD/CAM has been used for the fabrication of spinal orthoses for over two decades. The first central fabrication facility to incorporate CAD/CAM for scoliosis now has over 6,000 carved patient molds. They cite the following as advantages to scanning for scoliosis braces versus the traditional method of casting:
- reduce time and mess
- precise measurements
- eliminated cost and time for shipping
3D printed scoliosis orthoses are relatively newer to the field than scanning, digital rectification, and carving. A 2022 randomized controlled trial compared the efficacy of 3D printed orthoses to conventional orthoses for the treatment of adolescent idiopathic scoliosis (AIS). Both groups had comparable in-orthosis correction and angle reduction after two years. This study also reports that the orthotist dedicated 4.8 hours less to the design and fabrication of the 3D printed orthoses.
Potential Applications[edit | edit source]
- Hybrid materials
- ex:) use carbon fiber-reinforced filaments to increase part strength
- Texturized surfaces
- Parametrised designs
- ex:) user-specific prosthetic feet automatically designed based on their height, weight, walking characteristics, level of activity, etc.
- Mechanical optimisation of parts
- ex:) use finite-element analysis to determine optimal print geometries
Resources[edit | edit source]
- 3D printed transtibial prosthetic sockets: A systematic review
- Feasibility of designing, manufacturing and delivering 3D printed ankle-foot orthoses: a systematic review
- Utilization of 3D printed orthoses for musculoskeletal conditions of the upper extremity: A systematic review
