Achilles Tendinopathy Toolkit: Section F - Medical and Surgical Interventions

Original Editor - Kim Jackson for The BC Physical Therapy Tendinopathy Task Force:

Prof. Alex Scott, Dr Joseph Anthony, Dr Allison Ezzat, Prof Angie Fearon, JR Justesen, Dr Allison Ezzat, Dr Angie Fearon, Carol Kennedy, Michael Yates, Paul Blazey and Alison Hoens.

Top Contributors - Alex Scott, Kim Jackson, Lucy Aird, Admin, Scott Buxton, Wanda van Niekerk, Cindy John-Chu, Olajumoke Ogunleye and Rishika Babburu

Introduction[edit | edit source]

The purpose of this document is to summarize common medical and surgical interventions which may be considered for the management of Achilles tendinopathy – particularly if it is not responding adequately to recommended conservative management strategies (see “Achilles Tendinopathy: Summary of the Evidence for Physical Therapy Interventions”).

Pharmacological Approaches[edit | edit source]

There is limited evidence, and in some cases no evidence, to support the use of pharmacological interventions in the treatment of achilles tendinopathy. The 3 most commonly used pharmacological approaches are:

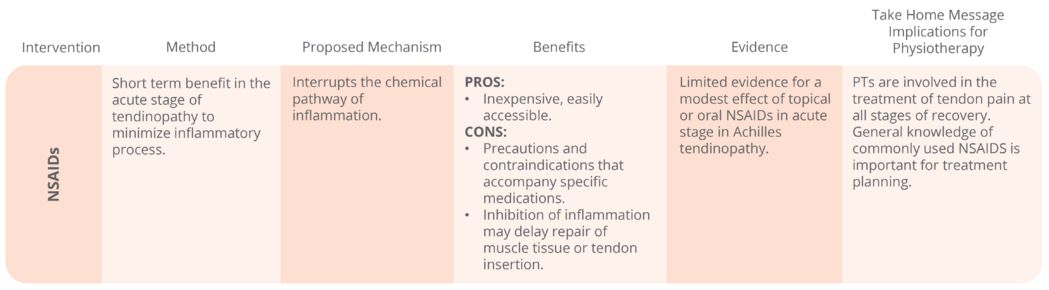

  • Non-steroidal anti-inflammatory drugs (NSAIDs) - these have antipyretic, anti-inflammatory and analgesic properties. In Achilles tendinopathy these are used in the acute stages to minimise the inflammatory process by interrupting the chemical pathway of inflammation.[1][2]
Achilles Tendinopathy NSAIDS table.png

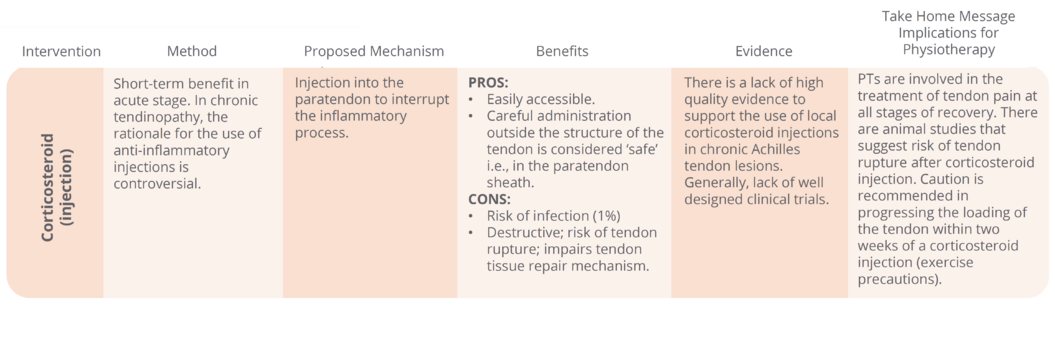

  • Corticosteroid (injection) - often prescribed to help relieve pain and inflammation in a localised area of the body. It involves an injection into the paratendon to interrupt the inflammatory process.[3][4][5][6]
Achilles Tendinopathy Corticosteroid table.png

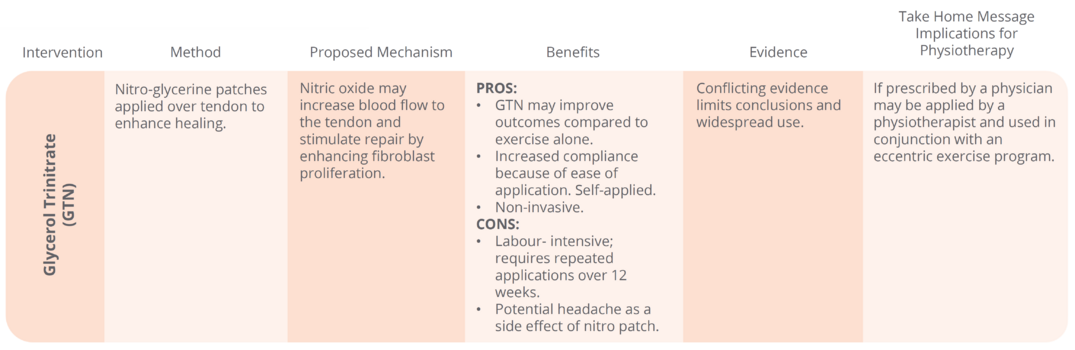

Achilles Tendinopathy GTN table.png

Injection Therapies[edit | edit source]

Chronic Achilles tendinopathy is associated with abnormal proliferation of neovessels in the ventral portion of the tendon, and along with accompanying neural tissue, is associated with pain in tendinopathy. The presence of neovessels can be visualized by use of ultrasound (US) (sonography). Grey‐scale US is a reliable method to assess tendon structure. Color Doppler or power Doppler has also been used to visualize blood flow.

Conservative treatment for Achilles tendinopathy is unsuccessful in 24‐45% of cases. US‐guided injections are becoming increasingly considered as part of ‘best practice’ for treatment of tendinopathies that have failed to respond to other conservative treatment. Injection therapy options include:

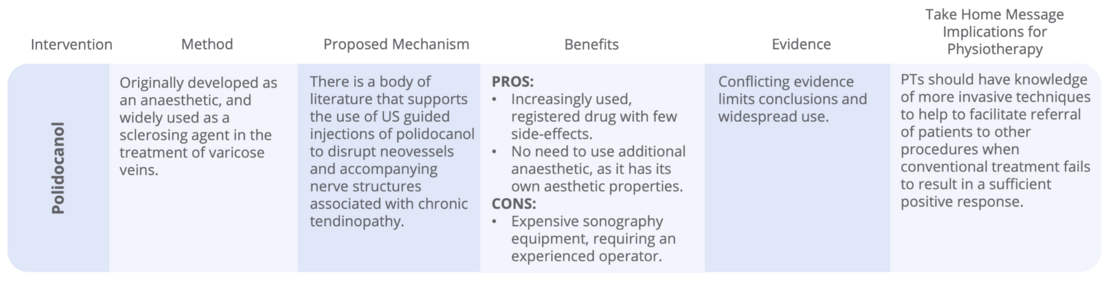

  • Polidocanol - This is a vascular sclerosant that was originally developed as an anaesthetic and is often used in the treatment of varicose veins. It is used to disrupt neovessels and accompanying nerve structures associated with chronic tendinopathy. [12][13][14][15][16][17]
Achilles Tendinopathy Polidocanalo Table.png

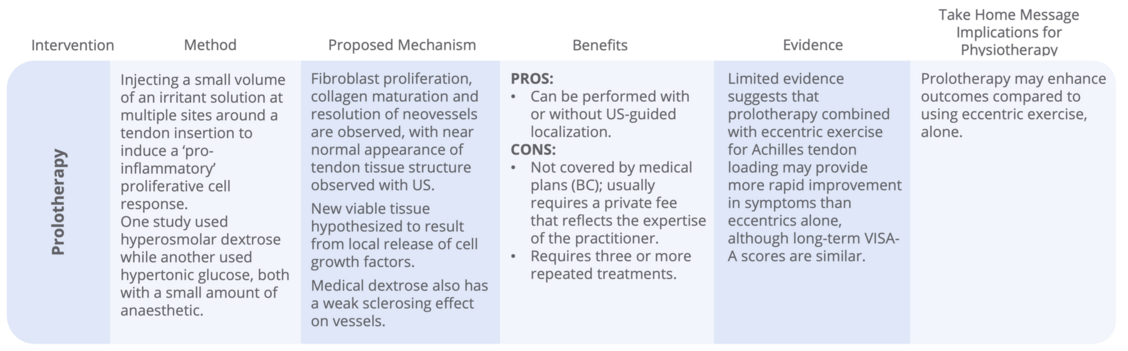

  • Prolotherapy - This involves injecting an irritant solution, such as hypersomolar dextrose, into multiple sites around the tendon insertion. This stimulates a pro-inflammatory proliferative cell response to increase tissue healing and reduce pain.[18][19][20]
Achilles Tendinopathy Prolotherapy Table.png

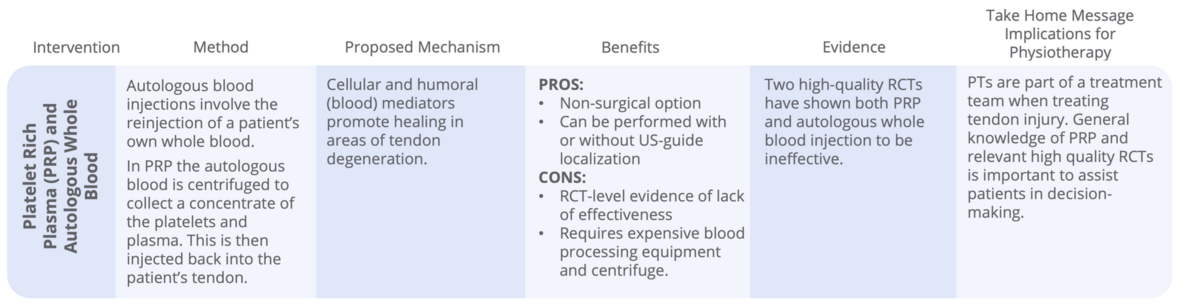

  • Platelet Rich Plasma (PRP) and Autologous Whole Blood - This is known as regenerative medicine and involves reinjection, into the tendon, of the patient's own whole blood (autologous) or centrifugation of the blood to collect a concentrate of the platelets and plasma. The procedure promotes healing in areas of tendon degeneratiion.[19][21][22][23][24]
Achilles Tendinopathy PRP Table.png

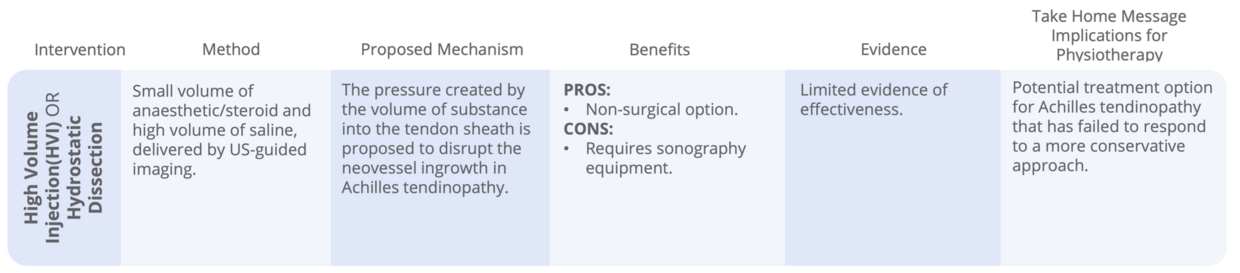

  • High Volume Injection (HVI) or Hydrostatic Dissection - In this procedure a small volume of anaesthetic/steroid and high volume saline is delivered by ultrasound guided imaging. The pressure created by the volume of substance into the tendon sheath thought to disrupt the neovessel ingrowth, resetting the healing process and reducing pain.[25][26][27]
Achilles Tendinopathy HVI Table.png

Dry Needling[edit | edit source]

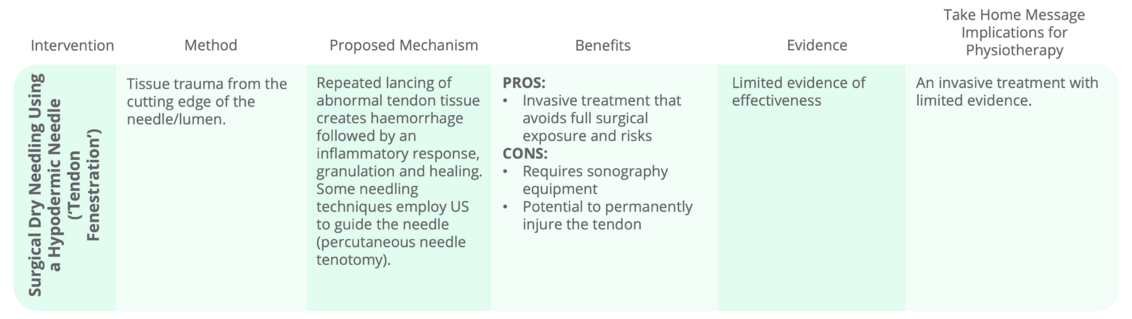

Dry Needling involves using a fine hypodermic needle or acupuncture needle that does not involve the injection of a substance. The technique is sometimes referred to as "tendon fenestration"[28] The needle is inserted into the tendon a number of times which creates an haemorrhagic response. This is followed by an inflammatory response, granulation and healing.

Achilles Tendinopathy Dry Needling Table.png

Surgical Approaches[edit | edit source]

Surgical success rates are reported at 8% for Achilles tendinopathy that have failed to respond to conservative measures.

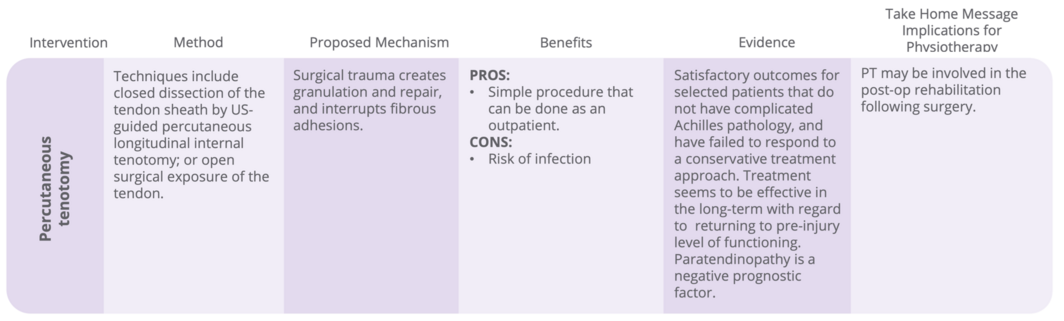

  • Percutaneous tenotomy - This technique involves a closed dissection of the tendon sheath by ultrasound guided percutaneous longitudinal internal tenotomy or an open surgical exposure of the tendon. [29][30]
Achilles Tendinopathy Percutaneous Tenotomy Table.png

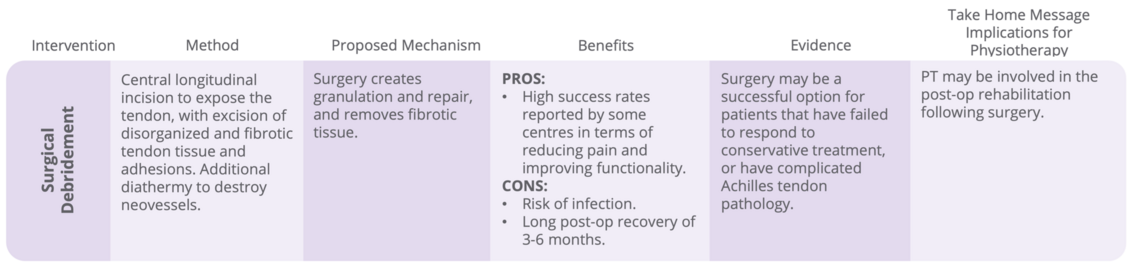

  • Surgical debridement - A central longitudinal incision is made to expose the tendon. The disorganised and fibrotic tendon tissue and adhesions is then excised with the application diathermy to destroy neovessels. The surgery creates granulation and repair, and removes the fibrotic tissue.[31][32]
Achilles Tendinopathy Surgical Debridement Table.png

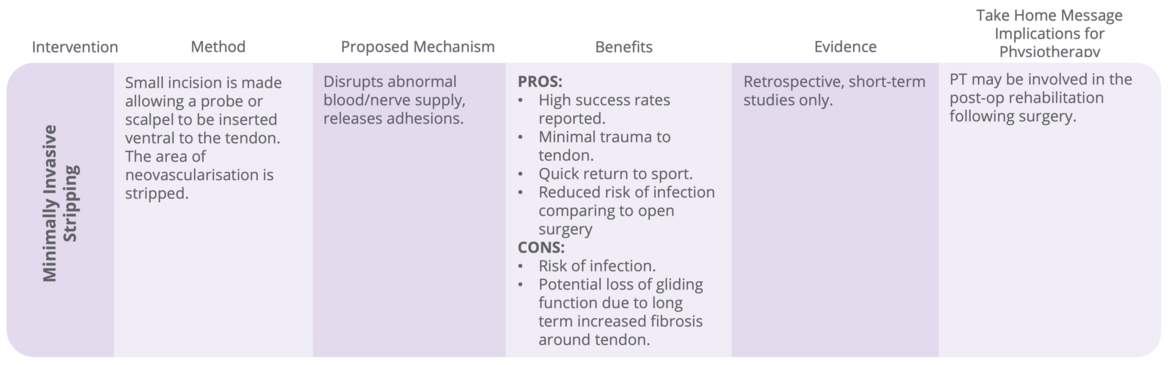

  • Minimally invasive stripping - A small incision is made allowing a probe or scalpel to be inserted ventral to the tendon. The area of neovascularisation is stripped. This disrupts the abnormal blood/nerve supply, releases adhesions. [33]
Achilles Tendinopathy Min Invasive Stripping Table.png
