Accessory Navicular Bone

Definition/Description

Also known as Prehallux, Os Tibiale Externum and Navicular Secundum.

An accessory navicular bone is a bone of the foot that occasionally develops abnormally causing a plantar medial enlargement of the navicular. The accessory navicular bone presents as a sesamoid in the posterior tibial tendon, in articulation with the navicular[1] or as an enlargement of the navicular itself.

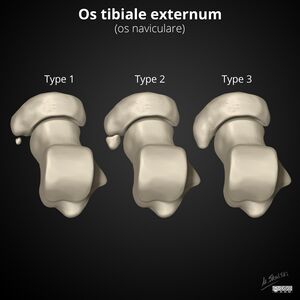

The Geist classification divides these into three types:

Type I: is a sesamoid bone in the posterior tibialis tendon. There is a small gap of approximately 3mm or less between the sesamoid and the navicular.

Type I AN dia.PNGTYPE I AN X RAY.jpg

Type II: consists of an accessory bone, up to 1.2cm in diameter, where synchondrosis develops between it and the navicular.

Type II AN.PNGTypeIIAccessoryNavicular.jpg

Type III: is the fused accessory navicular resulting in a large cornuate shaped navicular.

TYPE III AN.PNG TYPE III ACCESSORY N. X RAY.PNG

Clinically Relevant Anatomy

Foot accessory navicular CLINICAL ANATOMY 1 anat01.jpg

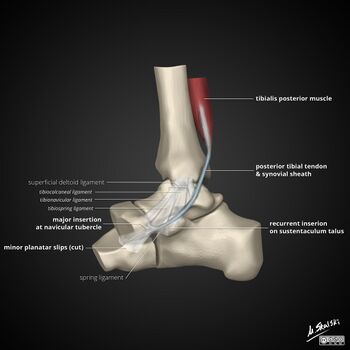

The navicular is an intermediate tarsal bone on the medial side of the foot[2], which articulates proximally with the talus. Distally it articulates with the three cuneiform bones. In some individuals it also articulates laterally with the cuboid. The tibialis posterior tendon inserts into the navicular bone[3]. Tibialis posterior also is an inverter of the foot and also assists in the plantar flexion of the foot at the ankle. Tibialis posterior also has a major role in supporting the medial arch of the foot, [4] which can be compromised where there exists an abnormal insertion of the tendon into the accessory navicular bone when present. [5] [6]This can result in a loss of suspension of tibialis posterior tendon and may cause peroneal spastic pes planus or simple pes planus. However, the cause and effect relationship between the accessory navicular and pes planus is speculative as there is no clear proof of that relationship. [7]

The presence of a type I or II accessory navicular is also a cause of Posterior Tibial tendinopathy as the insertion of the Tibialus Posterior tendon onto the accessory navicular is more proximal (dashed line). Leverage of the malleolus on the Tibialus Posterior tendon is reduced increasing stress on the tendon. [8]

ANGLE CHANGE IN AN.PNG

The calcaneal pitch angle is also reduced in patients with a symptomatic accessory navicular than in normal subjects.[9]

Epidemiology /Etiology

The foot and ankle have numerous accessory ossification areas, with the most common being the accessory tarsal navicular bone which occurs in 4-14% of the population. [1][10][2]

  • An accessory navicular bone is present in ~10% of the population
  • It first appears in adolescence, with incidence of 4-21% in children.[8]
  • It is more common in females [1]
  • Reported prevalence bilaterally is ~70% (range 50-90%)

People who have an accessory navicular are often unaware of the condition as it causes no symptoms. Some individuals, however, will develop accessory navicular syndrome, a painful condition where the bone and/or posterior tibial tendon become aggravated. This can result from any of the following:

  • Trauma, such as a foot or ankle sprain
  • Chronic irritation from shoes or other footwear rubbing against the accessory bone
  • High levels of activity or overuse

Causes AN.jpg

Characteristics/Clinical Presentation

  • Typically seen in young females (10-20 years of age) complaining of mid food/arch pain which may be insidious or post trauma
  • Difficulty getting comfortable footwear
  • Prominent navicular
  • Tenderness over the prominence
  • Pain over the posterior tibialis tendon and reduced mobility in the Achilles tendon in chronic cases
  • pes planus is often present
  • Inflamed bursa

Differential Diagnosis

  • Stress fracture
  • Tendinopathy
  • Medial tuberosity fracture [4]
  • Bone Tumor
  • Kohler’s disease [5]

Diagnostic Procedures

  • X-Ray: An accessory navicular is often clear to see in standing AP and lateral views, but in some cases an oblique view is also required in order to fully diagnose the extent of the navicular abnormality. Bilateral investigations are often as there is a high incidence of symmetrical abnormalities.
  • When examining the lateral weight bearing X-ray, alignment of the talonavicular cuneiform and first metatarsal dorsal should be carefully examined as well. “Sag” at this joint indicates structural integrity of the area.
  • In rare cases, an MRI or CT is indicated in order to exclude a tumor, fracture of the medial tuberosity, or bone marrow edema.

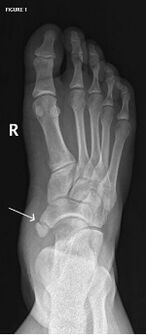

AP veiw AN.jpg AP View Lateral veiw AN.jpgLateral View oblique view Oblique View

Outcome Measures

add links to outcome measures here (also see Outcome Measures Database)

Examination

Patients with an accessory navicular may present with complex pain patterns requiring a thorough examination. [6] The examination should include key assessments:

  • Differentiation of the navicular prominence from the talar head prominence in flat foot deformities by inverting and everting through the subtalar joint with a thumb over the bony prominence.[7]
  • Assessing for any loss of structural integrity of the longitudinal arch is important as this component of the deformity will not be corrected by surgical treatment where surgery is required. [8]
  • Thorough gait examination.

Medical Management

CONSERVATIVE:

  1. Physical therapy
  2. Medications. Oral nonsteroidal anti-inflammatory drugs (NSAIDs), such as ibuprofen, may be prescribed. In some cases, oral or injected steroid medications may be used in combination with immobilisation to reduce pain and inflammation. [8]

SURGICAL: Depending upon the severity of symptoms, non-operative or conservative treatment should be maintained for at least 4- 6 months before any surgical intervention.

There are 2 surgeries that can be performed depending upon the condition and symptoms

  • A simple surgical excision to remove the accessory navicular along with its prominence. In this procedure, the incision is made dorsally to the prominence of the accessory navicular. Symptoms are relieved in 90% of cases.[11]
Accessory navicular surgery.jpg
  • The 2nd procedure excising the boney prominance in conjunction with a reattachment of the posterior tibial tendon. .[5][6] The posterior tibial tendon is split and is reattached further up the medial side of foot to provide increased support to the longitudinal arch.

After surgery the lower leg is put into a cast for 4 weeks, which is moulded into the shape of the arch, with the foot maintained in a plantigrade position. Partial weight bearing is indicated for 8 weeks after which full weight bearing is permitted.[6][8]. Once the cast is removed, a strength and conditioning programme is highly recommended. [7]

CAST MOULDING.jpgSHORT LEG CAST.jpg

Occasionally, a limited fusion of the cuneiform metatarsal or talonavicular joints also was recommended. The rationale and efficacy of this operation have been questioned.

Arthrodesis may be a reasonable treatment option in selected cases of patients with symptomatic recalcitrant Type II accessory naviculars that are large enough to accept small fragment screws.[1]

Physical Therapy Management

If the accessory navicular bone becomes problematic physical therapy may be prescribed.

This will include use of therapeutic modalities to relieve pain, increase strength and stability in the foot. An accessory navicular bone is often linked to Posterior tibial dysfunction and pes planus. In some cases orthotics may be indicated.

  • Well padded shoe orthotics should be worn for arch support. This decreases direct pressure over the navicular.
  • Strength and conditioning exercises for the peroneal and posterior tibialis muscles.
  • Strengthening of the intrinsic foot muscles and the lateral rotators of the pelvis.[8]
  • Activity modification in the initial stages, such as limiting or stopping any strenuous activities which may cause the accessory navicular bone to become symptomatic.[8]
  • Gait re-training and stability exercises.

Some examples functional posterior tibialis strengthening:

[12]
[13]
[14]
[15]

Resources

Clinical Bottom Line

A type I accessory navicular is rarely symptomatic. Where symptoms do appear, type I usually responds well to conservative management. Patients with Type II have an increased risk of injury and onset is usually insidious or as a a result of trauma. It fails to respond to conservative treatment when severe and fusion of the accessory navicular to the navicular may successfully relieve pain without disrupting the tibialis posterior tendon insertion.[10] With Type III, excising the accessory navicular is indicated over excising the navicular prominance.[8]
