Introduction
Before selecting any back support or positioning component for a wheelchair, one principle frames every clinical decision: the goal is to position, not restrain. Positioning components are prescribed to support alignment, enhance stability, and enable function, not to immobilise or restrict a person against their will.
RESNA's position paper on wheelchairs, seating systems, and secondary supports makes it clear that postural supports are clinically and ethically distinct from physical restraints. A well-selected positioning component provides a stable base from which the user can move, reach, and function. A poorly selected or poorly fitted positioning component can restrict movement, cause pain or pressure injury, and undermine the very function it is intended to support.[1]
With this framing in place, two categories of components follow logically: (1) back supports, which are the primary postural stabiliser above the cushion, and (2) additional positioning components, which address specific alignment needs the back support alone cannot meet.
Back Supports
If the cushion establishes the pelvic foundation, the back support is the stabiliser above it. Its functions extend beyond simple comfort: a well-matched back support supports spinal alignment and trunk control, influences head position and visual field orientation, affects propulsion mechanics and upper extremity function, and works in direct conjunction with the cushion as part of an integrated system.[2]
Back support selection follows a spectrum from minimal to maximum support, with the clinician's task being to match the level of support to the individual's trunk control, postural needs, functional goals, and clinical trajectory.
Sling Upholstery

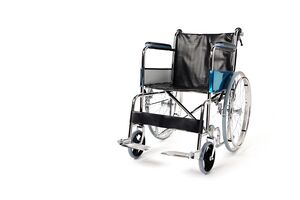

Standard sling upholstery (i.e. fabric attached across the wheelchair's back posts) is the default configuration on most basic and transport wheelchairs. It provides minimal postural support and is not appropriate for long-term complex rehabilitation technology (CRT) users.[2]
Over time, sling upholstery stretches and deforms, a phenomenon sometimes called 'hammocking'. This progressively pulls the hips into internal rotation, reduces lateral trunk stability, and encourages posterior pelvic tilt (sacral sitting), which increases sacral pressure risk and thoracolumbar kyphosis. Research comparing sling and solid back supports in adults with spinal cord injury has demonstrated clinically meaningful improvements in pelvic angle, spinal alignment, and functional reach when solid backs are used.[3]
Clinical indications. Short-term or basic use only. Users with good, independent trunk control who do not require postural support.
Tension-Adjustable Upholstery
Tension-adjustable backs bridge the gap between standard sling upholstery and solid back supports. Adjustable straps or panels allow minor contouring to provide improved lumbar support and some lateral guidance. A practical advantage is that these backs do not need to be removed when folding a folding-frame wheelchair, which is an important consideration for users and caregivers managing transport.[4]
Clinical indications. Mild trunk instability; early postural asymmetry; users who need modest support, but for whom a solid back is not yet indicated or not feasible.
Rigid and Solid Back Supports

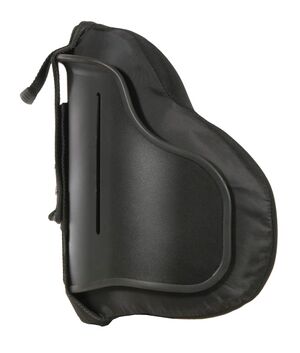

Rigid back supports represent a significant step up in postural control. Unlike upholstery, which flexes and deforms with the user, a rigid back provides a stable sitting surface. Key clinical advantages include:[3]
- Pelvic anchoring. A firm surface provides a reliable stop for the pelvis, helping to prevent forward migration into a sacral sit.
- Improved propulsion efficiency in manual wheelchair users. A rigid back eliminates the energy lost to sling flex; each push stroke transfers more efficiently through a stable trunk.
- Contouring options. Off-the-shelf rigid backs are available in varying depths of lateral contour (commonly described as active, standard, or deep profiles) to provide built-in lateral trunk guidance without additional hardware.
- Adjustability. Rigid backs can be angled, height-adjusted, and moved forward or backward on the frame, allowing precise fitting and modification over time.
- Compatibility with positioning components. Lateral trunk supports, head support, and other components can be mounted directly to a rigid back, which is not possible with upholstery.
Clinical indications. Users requiring moderate to significant trunk support; full-time manual or power wheelchair users; anyone for whom propulsion efficiency, pressure distribution, or postural alignment is a clinical priority.
Custom-Moulded Back Supports
Custom-moulded backs are individually shaped to the user's trunk anatomy, typically using simulation technology or direct moulding. They provide the highest level of spinal containment and postural support available and are indicated for presentations that cannot be managed with off-the-shelf or adjustable systems.
Two recent studies from the same research group provide the strongest available evidence for custom-moulded back supports: a retrospective cohort study (n=75) found custom-contoured seating significantly slowed scoliosis progression compared with modular systems,[5] and a related scoping review found no increased clinical risk and identified particular benefits in postural management.[6]
As with custom-moulded cushions, clinicians must communicate that this is a 'picture in time' (i.e. the mould captures the user's anatomy at the point of assessment), and significant changes in body composition, spasticity, or deformity may necessitate remoulding. There is a very limited margin for adjustment once a mould is completed, and specialist training is required to prescribe appropriately.[4]
Clinical indications. Fixed or severe spinal deformity; progressive neuromuscular diagnoses; complex presentations where off-the-shelf systems cannot provide adequate support or containment.
| Category | Support level | Adjustability | Primary indications |
|---|---|---|---|
| Sling upholstery | Minimal | None |
|
| Tension-adjustable | Low–moderate | Limited |
|
| Rigid/solid | Moderate-high | Good |
|
| Custom-moulded | Very high | Minimal post-moulding |
|
Additional Positioning Components
When the cushion and back support together are insufficient to maintain safe, functional alignment, additional positioning components are added. These are selected individually and prescribed as part of the whole system, but each component affects the setup and function of all others.
The SCIRE (Spinal Cord Injury Rehabilitation Evidence) project summarises the evidence base clearly. Individual attention to spinal and pelvic posture is essential, and lateral trunk supports in specialised seating have been shown to improve frontal plane spinal alignment and reduce muscular effort for postural control.[7]
Head Supports

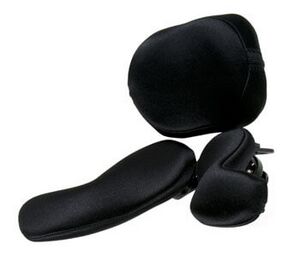

Head supports range from simple transport-safety head supports to complex multi-pad cervical and occipital positioning systems. Their clinical functions include providing head and cervical stability, supporting visual field orientation, maintaining respiratory alignment, and contributing to load distribution through the system as part of the overall seating footprint.
Head supports are frequently indicated for users whose seating system includes tilt-in-space or recline, as these functions change the orientation of gravity relative to the trunk and head. Clinical indications include limited neck control, high-level spinal cord injury, progressive neuromuscular conditions, and fatigue management in users who cannot sustain head control throughout the day.[1][2]
Lateral Trunk Supports

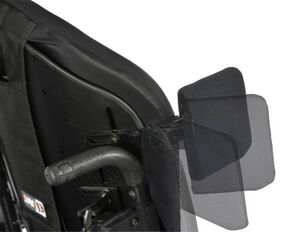

Lateral trunk supports improve midline trunk orientation, reduce lateral lean, and assist with scoliosis management. They work by providing a counterforce to lateral trunk displacement, enabling the user to maintain a more upright posture with less muscular effort. This has practical benefits for upper extremity function, pressure distribution, respiration, and swallowing.[7]
A critical clinical distinction applies here. Lateral trunk supports can correct a flexible (reducible) scoliosis and prevent further progression. For a fixed (non-reducible) deformity, they serve to accommodate and stabilise rather than correct, and placement on the apex of a rigid curve can cause pressure injury.[7] Assessment of reducibility at the mat evaluation directly informs this decision.
Clinicians should also consider: pad shape, size and material; mounting hardware options (swing-away, removable, or articulating); and seasonal factors (e.g. hardware that contacts the user directly in summer may need modification in cooler months when additional clothing is worn).[4]
Positioning Belts

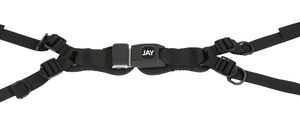

Positioning belts are frequently misunderstood as seat belts. They are not restraints and are not equivalent to transport safety harnesses. Rather, they are entirely separate devices governed by different standards.[1]
A pelvic positioning belt is angled at approximately 45 degrees to the seat surface and applied at the anterior superior iliac spines (ASIS), not across the abdomen. Its clinical purpose is to assist in maintaining neutral pelvic alignment by preventing the pelvis from sliding forward into posterior pelvic tilt. It can also influence trunk posture and improve safety during mobility. Clinical indications include posterior pelvic tilt, extensor tone, and forward sliding in the seat.[1][2]
Upper Extremity Supports

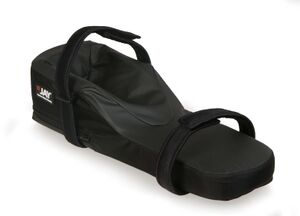

Upper extremity supports range from standard arm supports to specialised arm troughs, elbow blocks, and wheelchair lap trays. Their goals include promoting shoulder alignment, reducing subluxation risk in neurologically impaired users, supporting functional tasks, and contributing to the seating footprint.
Arm supports vary by style (dual-post, tubular, transfer-bar), attachment method (removable, flip-back), pad length (full or desk-length), and pad material (foam, gel). Selection should account for the user's transfer method, propulsion style, and functional reach requirements. Lap trays serve functional positioning purposes and can assist with upper extremity positioning, reduce forward trunk lean, and provide a surface for assistive technology.[2][7]
Thigh and Knee Supports
Thigh and knee supports promote lower extremity alignment and contribute to pelvic stability. An abductor pommel or knee separator addresses excessive hip adduction, particularly relevant in the presence of adductor spasticity. Lateral thigh supports address excessive hip abduction. Both influence pelvic rotation and stability directly; lower extremity alignment and pelvic alignment are interdependent, and neither should be addressed in isolation.[2][7]
Clinical indications include windswept posture, adductor or abductor spasticity, and pelvic rotation.
Foot Supports

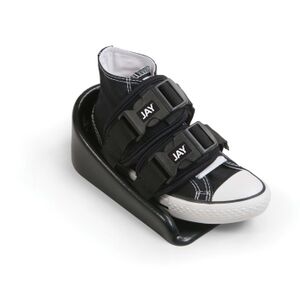

Foot supports are the most distal element of the seating system and among the most frequently overlooked. Their role in the overall seating footprint is significant. Properly supported feet contribute surface area that offloads weight from the ischial tuberosities and thighs; poorly supported feet (e.g. too high, too low, or absent) increase pressure at proximal sites and may contribute to forward sliding.[2]
Foot support options include standard footplates, angle-adjustable footplates, shoe straps, ankle straps, and foot boxes. Selection depends on the user's lower extremity range of motion, tone, and the degree of foot and ankle control available.[4]
