Ultra Lightweight Manual Wheelchairs

Original Editor - Stacy Schiurring based on the course by Angie Kiger

Top Contributors - Stacy Schiurring, Jess Bell and Tarina van der Stockt

Introduction

For wheelchair users, a wheelchair directly shapes health, independence, and participation in daily life. A poorly selected or inadequately configured chair can contribute to chronic upper limb injury, reduced community access, and diminished quality of life. An appropriately matched and optimally set up ultra-lightweight manual wheelchair (ULWC), by contrast, can support decades of efficient, independent mobility.

This Physiopedia page provides an overview of ULWCs, covering their definition, distinct characteristics, construction, configuration, and the application of feature-matching principles.

What is an Ultra-lightweight Manual Wheelchair?

A ultra-lightweight manual wheelchair is a highly adjustable manual wheelchair designed for long-term, independent propulsion. It is distinguished from standard or hospital-style wheelchairs by its frame configurability, adjustable rear axle position, and its ability to be precisely fitted to an individual user's anatomy and lifestyle. Weight is a contributing feature, but not the sole defining criterion.

ULWCs emerged as a distinct category when manufacturers began designing chairs around propulsion biomechanics and individual function, rather than institutional transport needs. The Rehabilitation Engineering and Assistive Technology Society of North America (RESNA) has formalised a position on ultralight manual wheelchairs, affirming that adjustability and weight optimisation are defining clinical requirements - not optional features. For any user who relies on a manual wheelchair as their primary means of independent mobility, a customisable wheelchair configured to their specific needs is the appropriate standard of care, regardless of diagnosis, care setting, or propulsion method.[1]

Weight benchmarks. Internationally, ULWCs are generally defined as weighing less than 13.6 kg (30 lb):[1][2]

  • Modern high-performance models often fall in the range of 6.4–11.3 kg (14–25 lb).
  • Transport weight (measured with rear wheels, footrests, and cushion removed) typically ranges from 4–6.5 kg (9–14 lb).

Clinicians should be aware that manufacturer-stated weights vary depending on the configuration measured, and that component choices (wheels, cushion, positioning hardware) will affect the actual weight experienced by the user during propulsion.

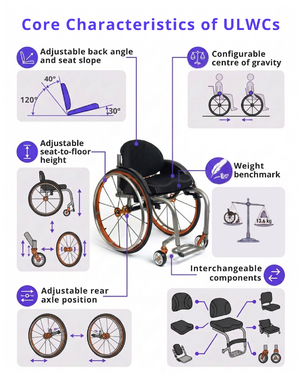

Table 1. ULWC core adjustable characteristics[1][2]
Characteristic What it means Clinical relevance
Rear axle position Horizontal and vertical position of the drive wheel relative to the seat Directly affects propulsion efficiency, shoulder load, and centre of gravity
Seat-to-floor height Height of the seat surface above the ground Affects foot propulsion (hemi-propulsion), transfers, and table access
Centre of gravity Balance point of the chair relative to the rear axle More anterior position improves rolling efficiency and reduces push effort; increases anti-tip awareness requirements
Back angle and seat slope Recline of the back support; posterior tilt of the seat surface ("dump") Affects pelvic positioning, propulsion access, and transfer ease — clinical trade-offs exist between stability and function
Interchangeable components Rear wheels, casters, armrests, footrests, back supports Enables adaptation over time as function, environment, or clinical needs change

Frame Materials

Three materials (aluminium, titanium, and carbon fibre) currently dominate ULWC construction, each offering a distinct balance of weight, vibration characteristics, durability, and cost. No material is universally superior; selection should be guided by the user's propulsion profile, activity level, environment, and available funding.

Table 2. ULWC frame materials comparison[1][2][3]
Material Weight and stiffness Vibration Durability Customisation Relative cost
Aluminium
  • Good strength-to-weight ratio
  • Moderate stiffness
  • Transmits more road vibration
  • Can feel rigid
  • Good
  • Susceptible to fatigue over time with high mileage
  • Highest
  • Custom bends possible during fabrication
Lowest
Titanium High strength-to-weight ratio
  • Natural vibration dampening
  • Often preferred for ride comfort
  • Very high
  • Highly resistant to corrosion and frame fatigue
  • High
  • Welded custom geometry achievable
Moderate–high
Carbon fibre
  • Extremely lightweight
  • Very high stiffness
  • Vibration depends on lay-up
  • Generally good
High, but susceptible to side-impact cracking (e.g. baggage handling)
  • Lower
  • Relies on moulds, so post-production adjustability is limited
Highest


The most expensive material is not always the most appropriate choice. Aluminium remains clinically valid and is often selected for first-time ULWC users during an initial fitting phase, when the ability to make geometry changes over time is particularly valuable. Funding pathways vary internationally and should be confirmed early in the assessment process.[2][3] [4]

Frame Design

Frame selection is both a biomechanical and a lifestyle decision. The frame's structural design influences energy transfer during propulsion, how the chair responds to the user's push stroke, and how it is transported and stored.[1][5] The two primary categories are folding and rigid frames.

Table 3. Folding and rigid frame comparison[1][3][5]
Clinical advantages Limitations
Folding frame
  • Cross-brace mechanism allows side-to-side folding for compact storage and transport
  • Swing-away or removable lower extremity supports (beneficial for transfers and hemi-propulsion)
  • More accommodating of significant changes in user size or function over time
  • Often available in larger seat widths and higher weight capacities
  • Modern folding frames are substantially more rigid than older designs
  • Greater rolling resistance and frame flex compared to rigid frames, increasing propulsion effort
  • Higher component count, with more potential maintenance needs over time
  • Slightly heavier than equivalent rigid models
Rigid frame
  • Direct force transfer from push to movement, meaning less energy is lost to frame flex
  • Lighter overall mass
  • Smaller footprint with tucked casters
  • Generally perceived as more responsive for active users
  • Reduces physical effort required to propel, supporting long-term joint preservation
  • Fixed-frame models may have a folding back support to assist with vehicle loading
  • Does not fold side-to-side; therefore, it occupies full width during storage
  • Increased rigidity can transmit more road vibration to the user
  • Fixed-frame (fully welded) models offer no post-production geometry changes
  • Vehicle compatibility depends on boot/trunk opening dimensions


The clinical decision is not a straightforward recommendation of rigid over folding. A user who requires regular transfers, uses a prosthetic device, needs lower extremity support configurations to vary, or cannot accommodate a non-folding frame in their vehicle may achieve better overall outcomes with an optimised folding frame. The goal is to match the chair to the individual's function, lifestyle, and environment.[3]

Monotube versus Dual-tube Rigid Frames

Within the rigid frame category, two primary structural configurations exist. A monotube (or open frame) uses a single, large-diameter tube that runs continuously along each side of the chair, forming a clean, uninterrupted profile from the rear axle to the front caster. This open design gives the frame a relatively minimalist appearance and allows the user to reach across the frame more easily when loading the chair into a vehicle. A dual-tube frame adds a secondary, smaller-diameter tube running below and parallel to the main tube on each side, connected by cross-members to create a triangulated structure. This closed, box-like geometry significantly increases torsional stiffness along the length of the frame.[3]

Table 4. Monotube versus dual-tube rigid frames comparison[3]
Description Advantages Best suited for
Monotube
  • Single large-diameter tube
  • Minimalist profile
  • Lighter
  • Easier to load into vehicles
  • Absorbs some road vibration
  • Independent drivers
  • Users prioritising weight and transport ease
Dual tube Secondary lower tube creates a triangular braced structure
  • Maximum structural stiffness
  • Minimal energy loss from frame flex
  • High-activity users
  • Those using power-assist devices
  • Users requiring maximum durability


The clinical rationale for the dual-tube design rests on the principle that greater frame stiffness reduces energy lost to frame deformation during propulsion. Research consistently demonstrates that increased frame rigidity lowers rolling resistance and reduces the physiological cost of propulsion.[5][6] The secondary tube in a dual-tube frame creates a triangulated structure that resists torsional forces during the push stroke, meaning more of the user's effort is translated into forward movement rather than being absorbed by the frame.

The monotube, by contrast, permits a small degree of flex on impact, which may attenuate vibration transmission to the user. This is a clinically relevant consideration for users with pain, spasticity, or sensitivity to road surface irregularities. It is important to note that direct comparative research specifically examining monotube versus dual-tube configurations in ULWCs is currently limited; the available evidence supports the underlying biomechanical principles rather than providing head-to-head clinical trial data. Frame selection at this level of specificity therefore remains guided by clinical reasoning, user preference, and informed discussion with the user about their activity profile and environment.

Front Frame Geometry

Two additional frame geometry variables are relevant to clinical decision-making.[2][3]

Front frame taper. The frame narrows from seat width to the width of the footplate. This reduces the overall chair width at the footplate, improves indoor manoeuvrability, and may enhance propulsion biomechanics for some users by improving hand access to the push rims and reducing thigh interference. It is most appropriate for users with a narrow pelvis, those who need tight indoor turning, or where lower extremity positioning permits it. Once built into a rigid frame, a front frame taper is not adjustable; clinicians should confirm its suitability before ordering.

Front frame angle. This angle influences lower extremity position, overall chair length, turning radius, and pelvic orientation. Clinical considerations include hamstring tightness, knee flexion limitations, footplate access requirements, and the user's preferred transfer technique.

Wheelchair Setup

How a ULWC is set up has a direct bearing on the wheelchair user's long-term health. The variables covered in this section (axle position, centre of gravity, and seat slope) interact to determine propulsion efficiency, upper limb loading, and postural stability.

Rear axle position. The rear axle position is arguably the most clinically significant adjustment on a ULWC. It simultaneously influences propulsion efficiency, shoulder joint loading, centre of gravity, and wheelchair stability. Optimising axle position is central to both functional performance and long-term upper limb preservation. The recommended elbow angle when the hand is placed at the top of the push rim is 100–120°. This position balances push stroke length against shoulder joint load.[7]

Table 5. Effects of axle position on propulsion
Axle position Effect on propulsion Effect on stability Clinical consideration
More anterior (forward)
  • Longer push stroke
  • Reduced push frequency
  • Improved biomechanics and reduced shoulder forces
Reduces rear stability Generally preferred for active users with good trunk control
More posterior (rearward)
  • Shorter stroke
  • Higher push frequency
  • Increased shoulder demand
Increases rear stability May be appropriate for users with limited trunk control or those newer to wheelchair mobility


Research consistently demonstrates that a more anterior axle position improves push-rim biomechanics, reduces shoulder joint forces, improves push frequency, speed, and stroke angle.[1] Practical clinical landmark: when the user drops their arm while seated, their fingertips should reach the level of the axle; this indicates the seat-to-axle height is appropriate.[8]

Centre of gravity and seat slope. Shifting the centre of gravity anteriorly (via axle position or seat slope) reduces rolling resistance and propulsion effort, and improves the responsiveness of the chair. Increasing seat slope (posterior tilt, also called "dump") lowers the user's centre of mass and can improve pelvic stability for some. However, it may also make standing transfers more effortful.[1] Back angle adjustments similarly involve trade-offs between propulsion mechanics and comfort during non-propulsion activities. These decisions are best made collaboratively with the user, trialling different configurations where possible.[3]

Key Configurable Components

ULWCs are highly configurable systems. Component choices have a cumulative effect on propulsion efficiency, stability, comfort, and weight. The following table provides a clinical overview of the major component categories.

Table 6. Major ULWC Component Categories[1][3]
Component Key variables Clinical considerations
Rear wheels
  • Spoke (wire)
  • Composite/mag (5–6 spoke)
  • Spoke wheels are lighter and preferred for active users
  • Composite/mag wheels are heavier but perceived as more durable
  • Spoke maintenance can be performed at most bicycle repair shops
Tyre type
  • Pneumatic (air-filled)
  • Flat-free insert
  • Solid
  • Pneumatic: lowest rolling resistance; user-adjustable pressure; risk of puncture, so user must be able to manage maintenance independently or with support
  • Flat-free insert: no puncture risk; adds weight; suited to users who cannot manage tyre maintenance or who propel in high-puncture-risk environments
  • Solid: maintenance-free; highest rolling resistance; generally not recommended for active ULWC users
Push rims
  • Standard aluminium
  • Coated (rubber or plastic overlay)
  • Ergonomic/contoured
  • Natural-fit (angled)
  • Projection rims
  • Push rim selection can determine whether a user is able to propel independently
  • Coated rims improve grip for users with reduced hand function or strength
  • Natural-fit and angled rims reduce wrist deviation during the push stroke
  • Projection rims accommodate users who cannot grasp a standard rim
  • Rim diameter and surface material affect joint load; this is an important consideration, particularly in users with upper limb pain or limited hand function
Wheel locks
  • Push-to-lock
  • Pull-to-lock
  • Scissor lock
  • Lever extension
  • Grade-aid (hill holder)
  • Recommended as standard for all ULWC users regardless of reported independence level
  • Critical for safety on inclines and during transfers
  • Push-to-lock vs pull-to-lock selection based on upper limb strength and range of motion
  • Lever extensions reduce reach demand
  • Grade-aids prevent rolling on slopes without full lock engagement
Casters
  • Diameter
  • Width
  • Material (solid, pneumatic, foam)
  • Caster fork type
  • Bearing quality
  • Smaller diameter = more responsive indoor turning
  • Larger diameter = better performance on uneven terrain
  • Caster width affects stability and turning resistance
Arm supports and side guards
  • Full armrest
  • Desk-length
  • Minimal/no armrest
  • Removable or fixed side guards
  • Active users typically use minimal or no armrests to allow full propulsion arc
  • Armrests are not an appropriate surface for pressure relief via lateral lean
  • Side guards protect clothing and may prevent skin contact with wheels
Lower extremity supports
  • Single centre footplate vs dual footplates
  • Fixed vs swing-away vs removable
  • Hanger angle
  • Footplate angle and size
  • Ankle straps
  • Foot position directly affects pelvic posture and pressure distribution
  • Swing-away or removable supports facilitate transfers and foot-propulsion
  • Hanger angle and footplate configuration affect overall chair length and lower limb positioning
Clinical Pearl: Component Selection Framework

The following factors inform wheelchair design and component selection:

  • User strength, endurance, and propulsion style
  • Environmental terrain (indoor carpets, outdoor surfaces, uneven ground)
  • Transfer method and frequency
  • Lower extremity range of motion and positioning needs
  • Long-term adjustability requirements
  • Lifestyle factors including vehicle use, recreation, and employment

Feature Matching: Applying Clinical Reasoning

Feature matching is the process of aligning a wheelchair's characteristics to the individual user's clinical needs, functional abilities, lifestyle, and environment. It is a core competency in wheelchair provision and is emphasised in international guidelines.[2][4]

The WHO Wheelchair Provision Guidelines identifies the essential steps in the provision process, of which selection and fitting are most directly informed by feature matching.[4] Clinicians are advised to consider the full range of a user's daily activities, not only propulsion in a clinical setting. A chair that performs well in a hospital corridor may perform very differently on a cobblestone street, a thick carpet, or in the confines of a small bathroom.

Table 7. Feature Matching[1][3][6][9]
User profile factor Relevant ULWC features to consider
  • Full-time independent propulsion
  • High activity level
  • Rigid frame; anterior axle position
  • Dual-tube or monotube based on terrain
  • Titanium or carbon fibre if accessible
  • Lightweight wheels
  • Minimal arm supports
Independent, but variable function (e.g. evolving recovery, ageing)
  • Folding or rigid frame with maximum adjustability
  • Aluminium for cost-effective re-configuration
  • Swing-away lower extremity supports
Hemi-propulsion (foot and one-hand propulsion)
  • Adjustable seat-to-floor height for foot contact
  • Axle adjustability
  • Swing-away footrests
  • ULWC shown to significantly reduce physiological burden compared to standard lightweight chairs
  • Frequent vehicle transfers
  • Independent driver
  • Monotube rigid or folding frame
  • Quick-release rear wheels
  • Consideration of transport weight
  • Back-folding capability
  • Tight indoor environments
  • Restricted turning space
  • Front frame taper
  • Smaller caster diameter
  • Shorter overall chair length
  • Rigid frame for smaller footprint
Chronic upper limb pain or injury history
  • Titanium frame for vibration dampening
  • Anterior axle position
  • Optimal elbow angle at top dead centre
  • Push-rim ergonomics review
