Introduction[edit | edit source]

Back-pain is a common issue in horses, potentially causing chronic pain, muscle wastage, reduced performance, and decreased ability to work.[1][2]

Obtaining a definitive diagnosis can, however, be challenging because of difficulties accessing the area, variability in pain manifestations[1] and vague clinical signs.[2] There is also a lack of knowledge about the equine thoracolumbar spine (particularly its functional aspects) and the pathogenesis of back problems in horses.[2] Moreover, some horses can continue to perform well despite back pathology, but others will perform poorly in the absence of specific spinal dysfunction.[2]

Back problems in horses are often related to chronic or long-standing injuries. There may also be more than one spinal lesion affecting the horse’s performance and causing symptoms. It is, therefore, important to confirm if there are any secondary lesions in order to provide a realistic prognosis and develop an optimal management plan.[2]

Differential Diagnosis[edit | edit source]

Equine back disorders can be classified as primary or secondary.[2][3]

Primary Back Problems[edit | edit source]

Primary disorders relate to lesions in the spinal structures, including muscle, ligament, osseous / vertebral, and nerve injuries.[3]  The following table, adapted from Hinchcliffe and colleagues, lists common primary back problems.[2]Some of these conditions are discussed in more detail below.

Soft Tissue Injury Osseous Injury Neurological Injury Other
Longissimus muscle strain Conformational / developmental abnormality Equine protozoal myeloencephalitis Tack and saddle fit
Supraspinous ligament sprain or desmitis Overriding dorsal spinous processes (OSP) Equine degenerative myeloencephalopathy Idiopathic
Dorsal sacroiliac ligament sprain or desmitis Osteoarthritis Equine herpesvirus myeloencephalitis
Exertional rhabdomyolysis Vertebral fracture Equine notor neuron disease
Non-specific soft tissue injury Spondylosis
Discospondylitis
Spinal neoplasia

Secondary Back Problems[edit | edit source]

Secondary back problems are associated with lesions in the axial skeleton.[3] These may include:[2][3]

  • Hind limb lameness
  • Front limb lameness
  • Neck problems (e.g. stenotic myopathy)
  • Acute or chronic sacroiliac injury
  • Pelvic fracture

Scientifically Unproven Causes of Equine Back Problems[edit | edit source]

Some proposed causes of equine spinal problems are not currently supported by scientific evidence, including:[2]

  • Vertebral subluxation /  misalignment
  • Intervertebral disc injury
  • Peripheral neuropathy (i.e. “pinched nerve”)

Relationship of Back Pain to Lameness[edit | edit source]

Lameness is not a typical feature of primary back problems, but it is often associated with secondary back pain:[2]

  • One study by Jeffcott and colleagues injected lactic acid into the left longissimus dorsi muscles to induce back pain in horses and determine its effect on lameness, but they found no obvious gait disturbance[4]
  • However, other studies report varying levels of association between naturally-occurring back pain and lameness in horses[2]

Sacroiliac Joint Pain[edit | edit source]

Possible causes of sacroiliac joint (SIJ) pain may include:[2]

  • SIJ / lumbosacral osteoarthritis
  • Sacroiliac desmitis / sprain
  • Sacroiliac luxation
  • Pelvic stress fractures
  • Ilial wing or sacral fractures

Other conditions that should be considered in a differential diagnosis include:[2]

  • Thrombosis of the caudal aorta or iliac arteries
  • Exertional rhabdomyolysis
  • Trochanteric bursitis
  • Impinged dorsal spinous processes

Predisposing factors[edit | edit source]

Conformation[edit | edit source]

  • Horses with short, inflexible spines are more likely to have vertebral (osseous) problems
  • Horses with long, flexible spines are more likely to have muscular /  ligamentous strains[2]

Management problems[2][edit | edit source]

Temperament[edit | edit source]

  • Excitable horses appear to be more prone to back pain - this may be due to:[2]
    • Low pain threshold
    • Hyper-sensitivity - inclination to buck or spook
    • Hyper-excitability leading to more tension / spasm in their back muscles

Mares in season (i.e. heat / oestrus)[edit | edit source]

  • May have back pain and poor performance[2]

Schooling and work regime[edit | edit source]

  • It is necessary to ensure horses are properly fit for their work or sport in order to avoid muscle strains / fatigue
  • Bored horses may be reluctant to work and this can be misinterpreted as functional issues secondary to back pain[2]

Dental problems and bitting[edit | edit source]

  • Mouth pain can cause tension in spinal musculature. Horses may have:[2]
    • Raised head carriage
    • Back muscle tension
    • Hind limb impulsion may be affected

Vertebral Anomalies and Deformities[edit | edit source]

Congenital abnormalities affecting the curvature of the spine are:[2]

  • Scoliosis
  • Lordosis (click here for image)
  • Kyphosis (click here for image)

Scoliosis and lordosis are often seen in conjunction with other deformities in newborn foals:[2]

  • Severe cases may require euthanasia
  • Mild cases often resolve spontaneously with growth

Kyphosis is most often seen during active growth after a horse has weaned and it may be associated with rapid hind limb growth rather than a specific primary spinal deformity.[2]

Congenital lordosis (sway back) is associated with hypoplasia (underdevelopment) of the cranial and caudal intervertebral articular processes between T5 and T10. Acquired lordosis may occur in brood mares (i.e. female horses kept for breeding) after a number of pregnancies, but it does not typically cause any issues.[2]

Any deformity of the spine can cause weakness in a horse’s thoracolumbar spine and, thus, increase the risk of injury and poor performance.[2]

[6]

Soft Tissue Injuries[edit | edit source]

Muscle Strain[edit | edit source]

Epaxial (i.e. dorsal side) muscle strains are the most common cause of back injury in horses.[2] The clinical signs of a muscle strain include:[2]

  • Acute onset of a reduction in performance
  • Change in temperament
  • Local swelling and heat (especially in the lumbar region)
  • Rigid back, restriction in hind limb movement or wide rear limb stance / movement
  • Disunited canter
  • Obvious pain on palpation

Ligamentous Damage[edit | edit source]

The supraspinous ligament is commonly injured, often in the cranial lumbar region. Clinical signs of this type of injury are similar to muscle strains (described above), but symptoms tend to last longer.[2]

  • The ligament is often visibly thickened and may be tender on palpation
  • These injuries tend to recur, so prognosis is guarded

Osseous Pathology[edit | edit source]

Spinal and SIJ disorders are common causes of ongoing poor performance in horses.[2]

Articular Pathophysiology[edit | edit source]

There are typically three phases of articular degeneration:

  1. Dysfunction[2]
    • Characterised by restricted joint motion, which can lead to bone demineralisation, capsular adhesions and loss of ligamentous strength
    • Localised pain and inflammation, which can lead to joint capsule pathology and periarticular fibrosis
    • Paraspinal muscle hypertonicity, which can contribute to the formation of adhesions[2]
  2. Instability[2]
    • Characterised by cartilage, capsule and ligament deformation
    • Subchondral bone changes occur
    • Proprioception and central motor control of joint movement and posture are affected
  3. Degeneration[2]
    • Osteophytes form
    • Ligaments ossify
    • Spinal ankylosis occurs

Articular Process Degenerative Joint Disease[edit | edit source]

Degenerative joint disease (DJD) of the articular processes is a common spinal disorder associated with back pain. The thoracolumbar junction and cranial lumbar spine are common sites for articular surface lipping and peri-articular erosions. The caudal lumbar vertebrae are a common site for intra-articular erosions and ankylosis.[2]

Impinged or Over-Riding Dorsal Spinous Processes[edit | edit source]

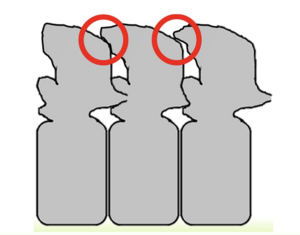

Figure 1. Equine Over-riding Dorsal Spinous Processes.

Impinged or over-riding dorsal spinous processes (OSP) (also known as ‘kissing spine’) occurs when the spinous processes of the vertebrae are too close together and overlap / touch. A distance of less than 4mm between spinous processes is considered significant.[7]See Figure 1.

OSP is a common cause of osseous back pain in horses, often occurring between T13 and T18, with T15 the most commonly affected vertebra.[2] This is significant as it is the area where the dorsal spinal process angles change orientation and it is directly under the saddle and rider's seat.[8] OSP can also occur in the lumbar spine, but not as frequently.[8]

Almost all movement in the equine thoracic spine occurs between T7 and T18 as is summarised in the following table.

Thoracic Movement Location Where Most Movement Occurs
Flexion T17-L2
Extension T17-L2
Lateral Flexion T9-T15
Rotation T7-T18

OSP is a radiographic diagnosis.[9] However, radiographic signs are not necessarily related to clinical signs, and OSP is often an incidental finding.[5] It is more common in equine athletes who experience greater stress on their spines, but it has also been observed in wild and extinct equine species and occurs in around 30 percent of the healthy horse population.[5][10]

[11]

The underlying cause of OSP is unknown,[12] but the following factors may play a role:[5]

  • Conformation
  • Genetics
  • Being ridden too early
  • Being ridden in a poor frame, which causes excessive spinal extension
  • Injuries to the spine
  • Repetitive spinal extension activities such as landing after a jump

Pain associated with OSP is likely due to friction between the spinous processes, which irritates the surrounding tissue. This can result in:[5]

  • Inflammation
  • Swelling
  • Degeneration of the supraspinous ligament
  • Formation of bone spurs

The symptoms of OSP are variable in terms of severity - they can range from a slight deterioration in performance to severe lameness. Specific symptoms may include:[5]

  • Muscle wastage
  • Aggression when being saddled
  • Resistance to lateral bend when ridden
  • Lameness
  • Refusal to go forward in the canter
  • Refusal to jump

While OSP is fairly obvious on x-ray, there are many associated problems that cannot be seen on imaging which also contribute to a horse’s pain. These problems include supraspinous ligament degeneration and ventral longitudinal ligament damage. The presence and severity of these problems can affect the clinical outcomes for a horse.[5]

NB While OSP is commonly seen on X-ray, a powerful machine is needed to penetrate the thick muscles of the area, so horses usually need to go to a clinic for spinal X-rays. Ultrasound scans can detect inflammation and damage to the supraspinous ligament, and wasting of the deep muscles of the spine. Scintigraphy will show areas of active inflammation, which can be helpful in identifying specific areas of pain.[5]

Vertebral Lamina Stress Fractures[edit | edit source]

Stress fractures tend to occur bilaterally and are more common in equine athletes who engage in strenuous or repetitive activities.[2] In one study of 36 thoroughbred racehorses, 50 percent had at least one vertebral stress fracture.[13] It is, however, difficult to diagnose stress fractures antemortem, as the area is not easily visualised on radiographs. Scintigraphy may be used to show active stress fracture sites.[5]

Spondylosis[edit | edit source]

Spondylosis is a degenerative disease of the vertebral joints.[2] It usually occurs at multiple sites. Large osteophytes form which bridge the gap between vertebral bodies. While the cause is not known, abnormal loading leads to micro-trauma. The annulus fibrosis and ventral longitudinal ligament ossify. The vertebral osteophytes and ankylosing vertebral bodies are at increased risk of fracture.[2]

Vertebral Fractures[edit | edit source]

  • Spinous process fractures of the withers (T2-T9)[2]
    • Usually occur when a horse falls over backward
    • Not typically associated with spinal cord compromise and conservative treatment is usually recommended
  • Vertebral end-plate fractures[2]
    • More common in foals
    • Caused by falls /  significant trauma
  • Vertebral body compression fractures[2]
    • Usually occur in the thoracolumbar region
    • Caused by trauma, electric shock or a lightning strike
    • Typically there is minimal displacement
  • Sacral fractures[2]
    • A common cause of cauda equina injury
    • Typically occur when a horse forcefully backs into a solid object or falls over backwards

Sacro-Pelvic Pathology[edit | edit source]

Sacroiliac Desmitis[edit | edit source]

Sacroiliac desmitis can be seen on ultrasound in the dorsal portion of the dorsal sacroiliac ligament. Complete sacroiliac disruption is not common, and is usually due to substantial trauma.[2]

Differences in Tuber Sacrale Height[edit | edit source]

This condition can occur spontaneously or insidiously. It may be caused by chronic, asymmetric muscular or ligamentous forces acting on the pelvis. It is not necessarily associated with sacroiliac ligament injury. Clinicians should not assume, therefore, that it is a sign of SIJ luxation.[2] This condition is not necessarily associated with pain or loss of performance. Diagnosis of sacroiliac luxation is supported by:[2]

  • History of major trauma
  • Crepitus
  • Independent tuber sacrale movement

Pelvic Fractures[edit | edit source]

The most common pelvic fracture is a complete ilial wing fracture. A depressed tuber sacrale on the affected side can usually be palpated. Occult pelvic stress fractures are prevalent in thoroughbred race horses. They tend to occur on the caudal border of the ilium next to the SIJ and may cause SIJ inflammation and damage.[2]

Management of Equine Spinal Pathology[edit | edit source]

Severe pathology or pain:[5]

  • Requires:
    • Stable rest
    • Restricted or controlled exercise
    • Graduated exercise programmes
  • May be necessary to:
    • Replace / re-flock saddle / therapeutic saddle pads
    • Change work routine / training approach
  • Rider’s technique and ability are also important factors,  but they:
    • Are difficult to modify
    • May require discussion with trainer / instructor

Medical/ surgical treatment include:[2]

  • NSAIDs
  • Corticosteroids
  • Muscle relaxants
  • Sclerosing agents
    • Used in severe cases of OSP
  • Hormonal therapy
    • For mares who have signs of back pain during oestrous
  • Surgical excisions are not usually performed, but they may be used for:
    • Comminuted or compound fractures of the whithers
    • Impinging dorsal spinous processes

Other treatments include:[2]

  • Physiotherapy
  • Massage therapy
  • Chiropractic care
  • Acupuncture
  • Homeopathy
  • Nutraceuticals
