Valgus Knee

Original Editor - Yesmine Gouddi Top Contributors - Yesmine Gouddi

Definition[edit | edit source]

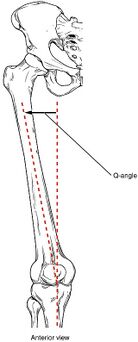

Q angle.png


Valgus knee or knock knee is a lower leg deformity that exists when the bone at the knee joint is angled out and away from the body's mid-line. This deformity is defined as a valgus angle ('Q'angle) equal to or greater than 10°[1]

The valgus deformity is resulted of anatomical variations : bone tissue remodeling and soft tissue contraction/elongation.

Bone tissue remodeling[edit | edit source]

  • Lateral femoral condyle deficiency with external rotation deformity of the tibia and lateral tibial plateau deficiency as well.
  • The patello-femoral joint can be affected with lateral subluxation of the patella and trochlear blunting secondary to lateral femoral condylar wear.

Soft tissue contraction/elongation:

  • The lateral side is contracted including the lateral collateral ligament (LCL), popliteus tendon, posterolateral capsule, iliotibial band (IT band), and posterior capsule.
  • The medial side, the soft tissue are attenuated, the medial collateral ligament (MCL) .

Classification[edit | edit source]

Q angle

There are numerous grading systems used for the classification of the knee deformaty that depend on the severiry of deformation and the soft tissue involeved. But the most recent one descibes three grades of valgus deformity[2] that depend on the degree of the angle .

  • Grade I: the deviation is less than 10°, passively correctable, with contracture of the lateral soft tissue but without elongation of the medial collateral ligament.
  • Grade II: the axial deviation ranges between 10 and 20°, the lateral structures are contracted and the MCL is elongated but functional.
  • Grade III: the axial deformity is greater than 20°, the lateral structures are tight and the medial stabilisers are not functional.

Diagnostic Procedures[edit | edit source]

Valgus Knee.jpg

X-Rays will help confirm the diagnosis, images of the hip and the ankle also should be taken.

Physical examination should be performed with the patient both seated and standing. Take note of:

  • The Degree of Q angle of genu valgum with a goniometer on the lateral side of the thigh-leg, the distance between the medial maleolli with the knee just touching. [3]
  • the gait should be observed, in order to identify other dynamic instabilities.
  • Any sagittal deformity like flexion contracture or recurvatum, as well as any rotational deformity.
  • The knee should be evaluated for anteroposterior laxity, range of motion (ROM), coronal and sagittal deformity, and mediolateral instability.[4]

Causes and Contributing Factors[edit | edit source]

  1. Developmental – physiologic, no intrinsic bone disease or congenital anomaly.
  2. Congenital – due to longitudinal deficiency of the fibula.
  3. Iliotibial band contracture.
  4. Trauma
    • Malunion of fracture
    • Growth stimulation by greenstick fracture of the proximal tibial metaphysic
    • Asymmetric growth arrest due to fracture-separation involving the lateral segment of the upper tibial physis or distal femoral physis.
  5. Infection – causing asymmetric growth disturbance.
  6. Arthritis of knee – rheumatoid, hemophylia
  7. Metabolic bone disease.[5]

Management[edit | edit source]

Treatment for genu valgum depends on the causes and severity of your symptoms.

Conservative management:[edit | edit source]

With an orthosis like a brace or a splint has been suggested for children under 8 years old to help bone growth , but there is no evidence to substantiate the efficacy of this method[6].

Surgery may be required to relieve pain and complications resulting from severe or hereditary valgus knee. Available surgical procedures include adjustments to the lower femur and total knee replacement (TKR).

Physiotherapy Management:[edit | edit source]

Exercise can help realign and stabilize the knees. depending on the deformaty and the cause , the therapist suggest exercises designed to strengthen the leg, hip, and thigh muscles. Specific stretches may also be useful in relieving symptoms.

Single-Leg Band Stretches

Step 1: With the resistance band firmly anchored to a stable object at ankle height, stand parallel to the band.

Step 2: Wrap the band around the ankle that’s further from the anchoring object.

Step 3: Stretch the resistance band by swinging your leg out to the side. When your leg is as far extended as you can manage, hold the position for two seconds, then carefully release back to a neutral position..

This exercise uses a resistance exercise band to help strengthen hip flexor muscles.

Leaning Ankle Band Stretches

Step 1: Anchor the resistance band to something sturdy at about thigh level and stand at the end of the band, perpendicular to the anchor.

Step 2: Wrap the band around the closer ankle, then step your other foot away so your feet are more than hip-width apart.

Step 3: Lean away from the resistance band, bending the knee that is not connected to the band. Keep both feet firmly planted. You should feel the band pulling at the inside of your ankle.

Step 4: Lean as far as you can, then hold the position for two seconds, and return to standing.

This exercise helps stretch the hip flexor muscles and strengthens the ankles.

Exercise Band Squats

Step 1: Stand with your feet hip width apart and a circular exercise band placed around your thighs. The band should be snug but you shouldn’t have trouble standing with your feet apart.

Step 2: Gently sink into a squat, bending your knees and keeping your thighs apart. You should feel a burn in your thighs and hips. Keep your back straight.

Step 3: Hold the squat for several seconds, then return to standing.

Squats help strengthen your quads and hamstrings, while adding the exercise band engages your hip flexors.

References[edit | edit source]

  1. Long WJ, Scuderi GRVarus and Valgus Deformities. In: Lotke PA, Lonner JH, eds. Knee Arthroplasty, Masters Techniques in Orthopaedic Surgery. 3rd ed. Philadelphia: Lippincott Williams & Wilkins, 2009:111–125
  2. Ranawat AS, Ranawat CS, Elkus M, Rasquinha VJ, Rossi R, Babhulkar S. Total knee arthroplasty for severe valgus deformity. J Bone Joint Surg Am. 2005;87(Suppl 1(Pt 2)):271–284
  3. Guichet JM, Javed A, Russell J, Saleh M. Effect of the foot on the mechanical alignment of the lower limbs. Clin Orthop Relat Res. 2003;415:193–201.
  4. W-Dahl, Annette; Toksvig-Larsen, Sören; Roos, Ewa M . "Association between knee alignment and knee pain in patients surgically treated for medial knee osteoarthritis by high tibial osteotomy. A one year follow-up study"(2009)
  5. Ramin E, Seyed M, and Taghi B.Angular Deformities of the Lower Limb in Children.2010:46–53.
  6. Greene WB. Genu varum and genu valgum in children: differential diagnosis and guidelines for evaluation. Compr Ther. 1996;22:22–9
